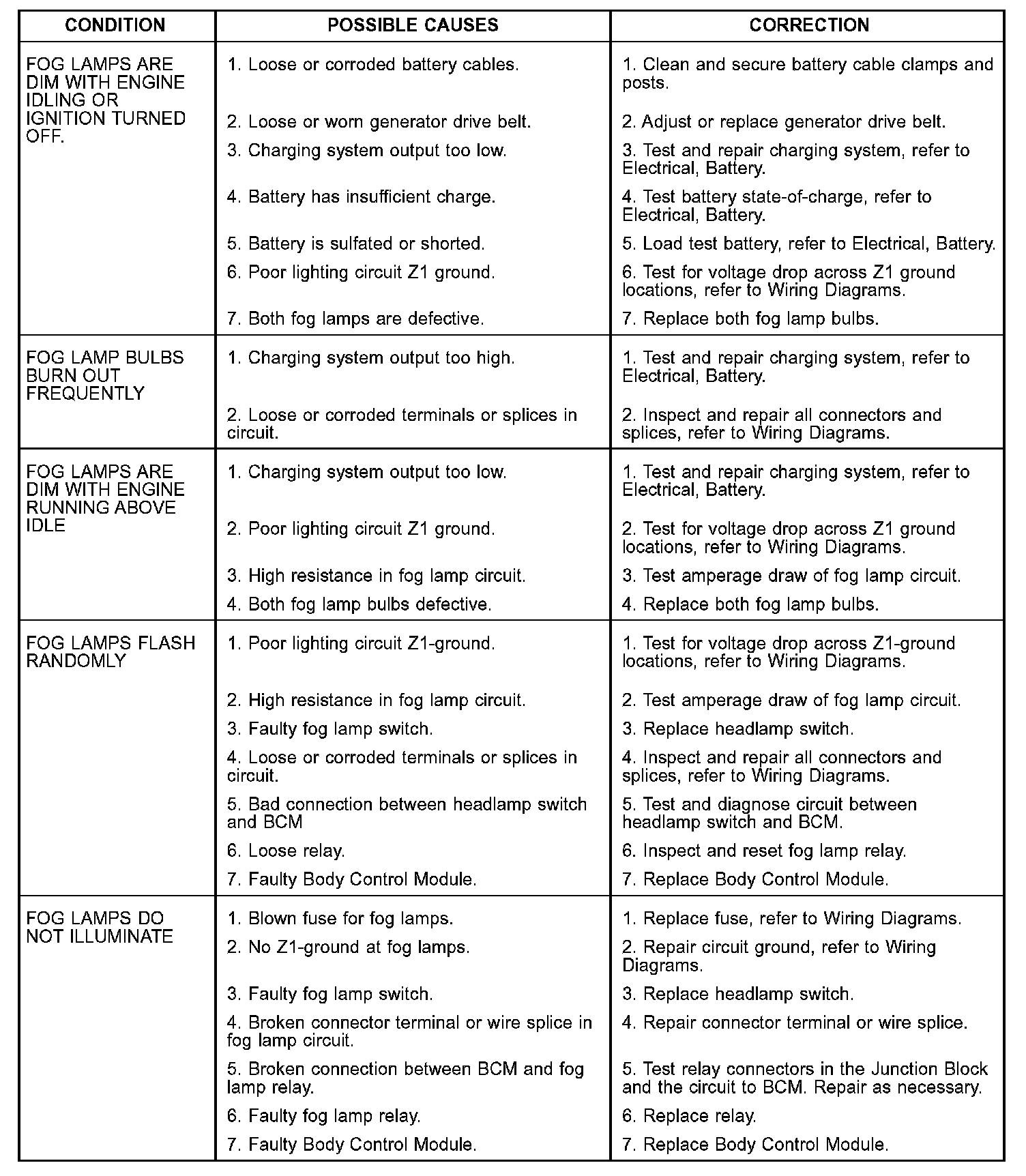

Diagnosis By Symptom

Fog Lamp Diagnosis:

When a vehicle experiences problems with the fog lamp system, verify the
condition of:
- Battery connections
- Charging system
- Fog lamp bulbs
- Headlamp switch
- Body Control Module
- Wire connectors

Refer to Wiring Diagrams, for component locations and circuit information.
