Connector Views

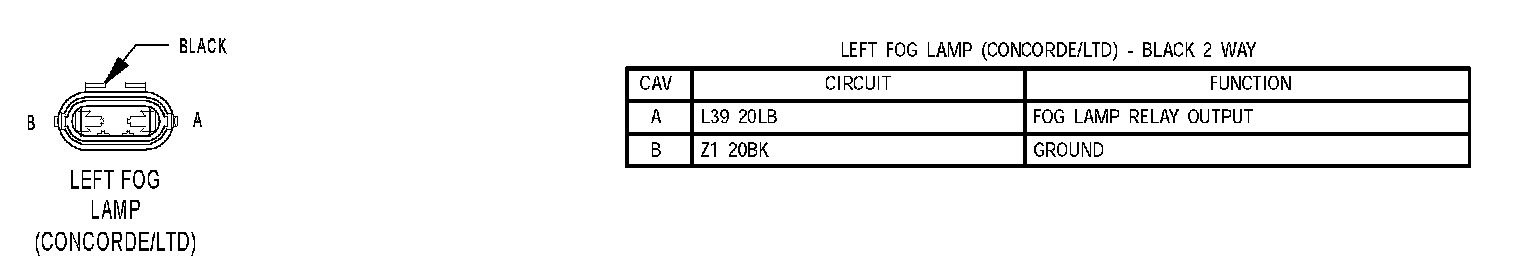

Left Fog Lamp (Concorde/LTD):

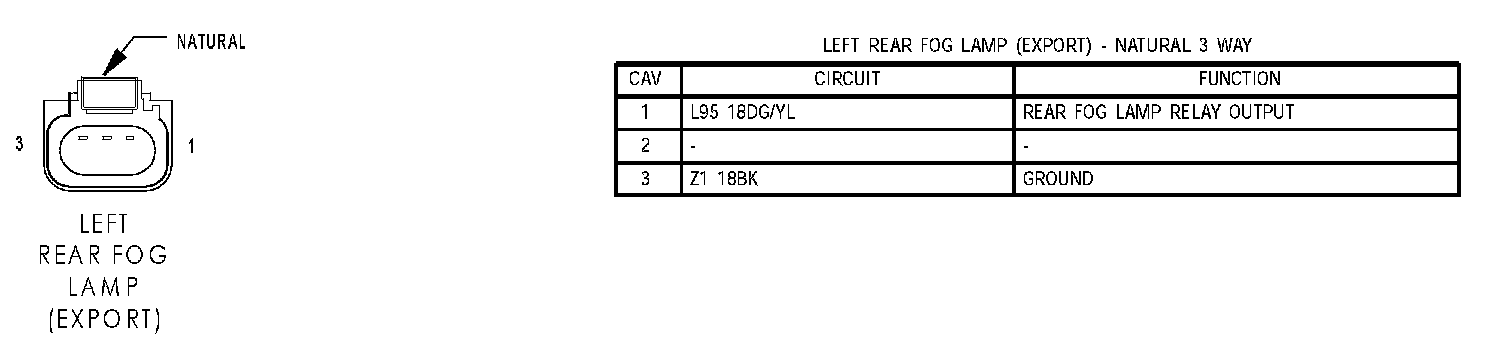

Left Rear Fog Lamp (Export):

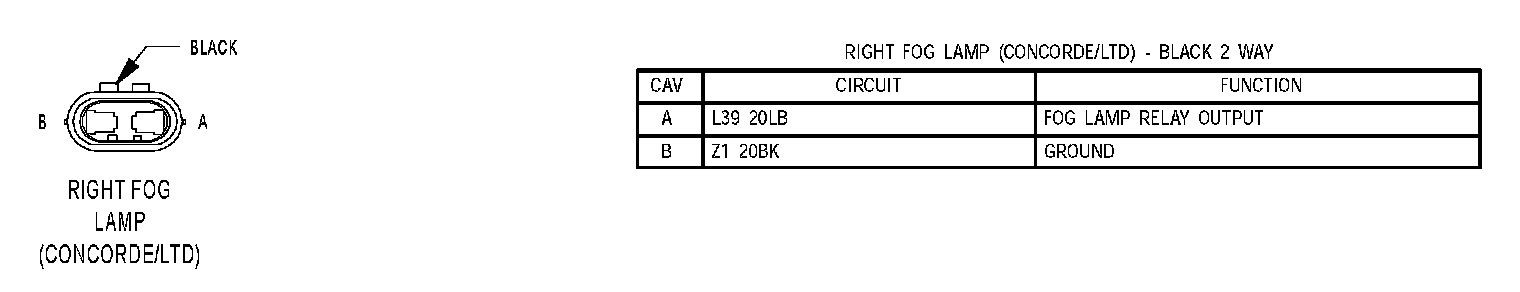

Right Fog Lamp (Concorde/LTD):
Right Rear Fog Lamp (Export):
