Connector Views
Left Rear Reading/Courtesy Lamp):

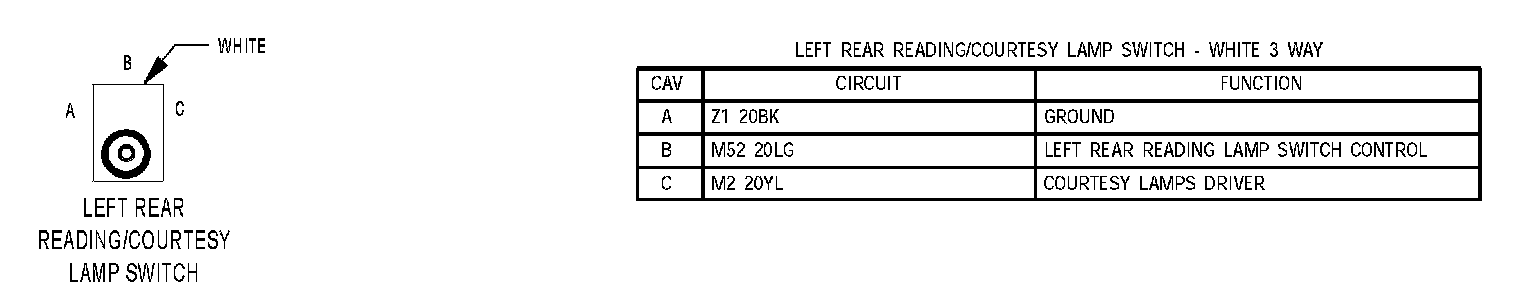

Left Rear Reading/Courtesy Lamp Switch:
Overhead Map/Courtesy Lamp:

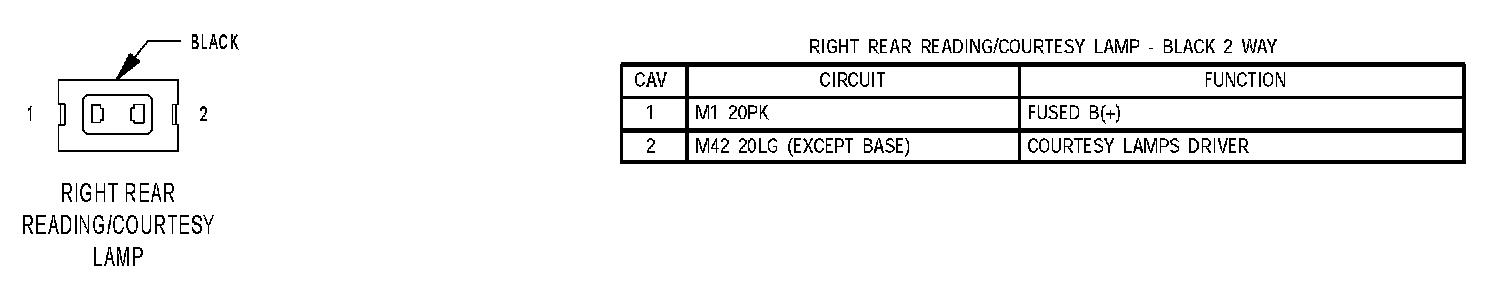

Right Rear Reading/Courtesy Lamp:

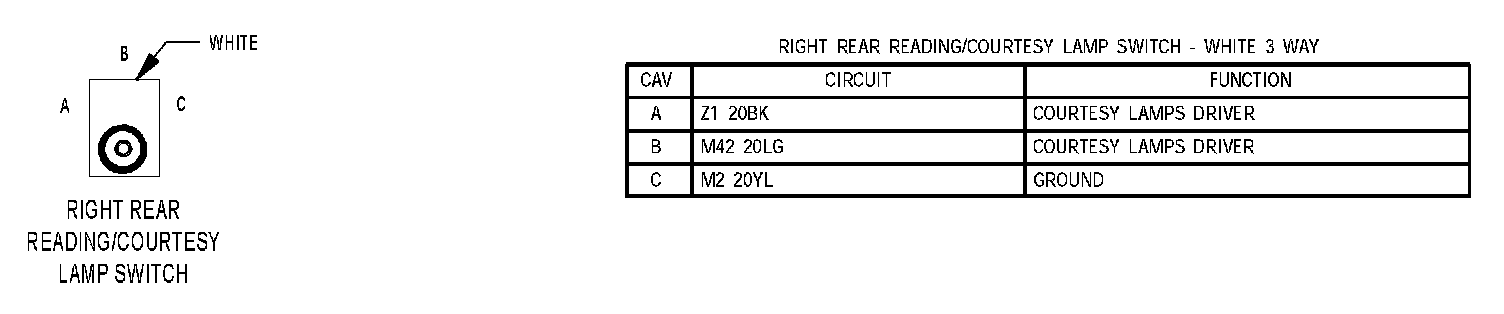

Right Rear Reading/Courtesy Lamp Switch:
