Center Mounted Brake Lamp Replacement

REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Release decklid latch and open decklid.

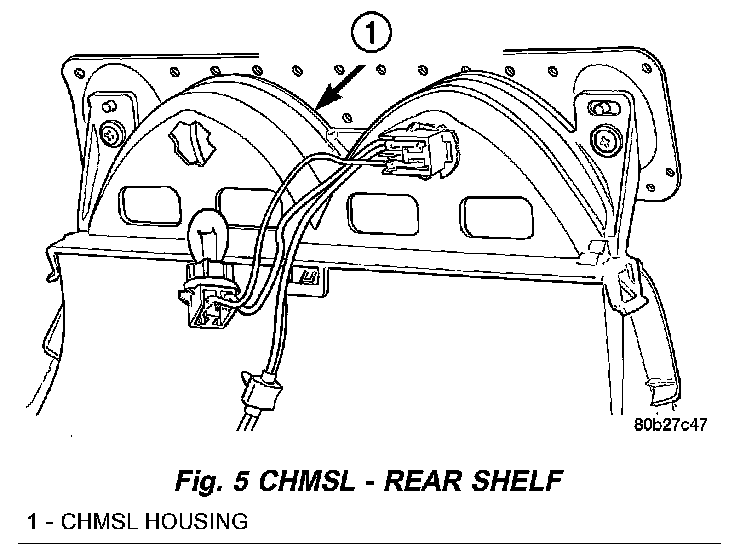

Fig.5 CHMSL - Rear Shelf:

3. From under rear shelf panel, disconnect the lamp socket from the CHMSL housing.
4. Remove bulb from the socket.

INSTALLATION
1. Install the bulb into the socket.
2. Install socket into CHMSL housing.
3. Connect the battery negative cable and close the hood.
4. Verify CHMSL operation.
