Center High Mounted Stop Lamp Unit (CHMSL) Replacement

REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Release decklid latch and open decklid.
3. From under rear shelf panel, disconnect CHMSL wire connector from body harness.
4. Remove rear shelf upper panel.

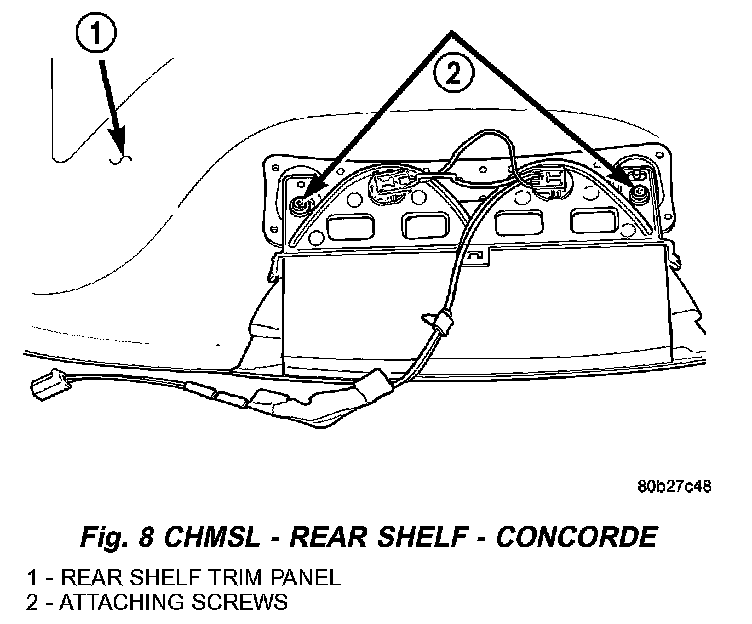

Fig.8 CHMSL - Rear Shelf - Concorde:

5. Remove fasteners attaching the CHMSL to rear shelf upper panel.
6. Remove CHMSL from rear shelf upper panel.

INSTALLATION
1. Place CHMSL in position on rear shelf upper panel.
2. Install fasteners to attach CHMSL to rear shelf upper panel.
3. Install rear shelf upper panel.
4. Connect CHMSL wire connector to body harness.
5. Connect the battery negative cable and close hood.
6. Verify CHMSL operation.
