Radiator Cooling Fan: Service and Repair

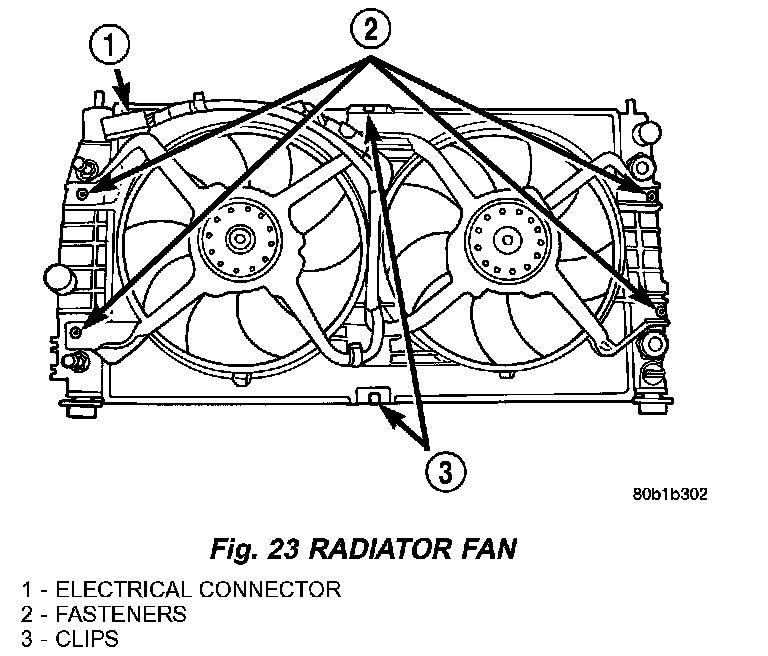

RADIATOR FANREMOVAL
1. Remove radiator upper crossmember.
2. Disconnect radiator fan motor electrical connector.
3. Partially drain cooling system below the level of the upper radiator hose.
4. Disconnect upper radiator hose from radiator.
5. Remove radiator fan attaching fasteners and upper clip.
6. Remove radiator fan by lifting upward to clear radiator.
INSTALLATION
1. Install radiator fan.
2. Install upper clip and fasteners.
3. Connect upper radiator hose to radiator.
4. Connect fan motor electrical connecto.
5. Install radiator upper crossmember.
6. Fill cooling system.
