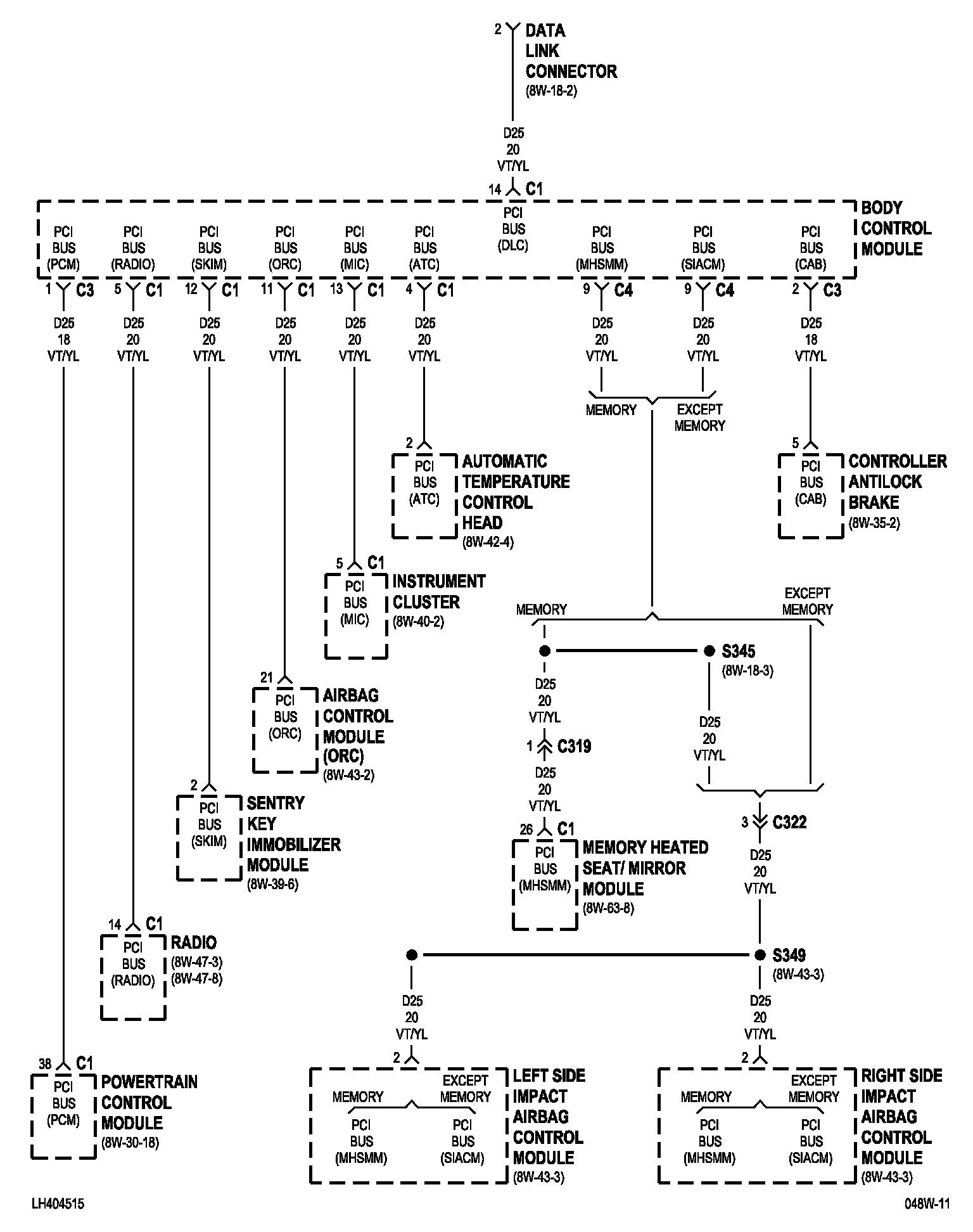

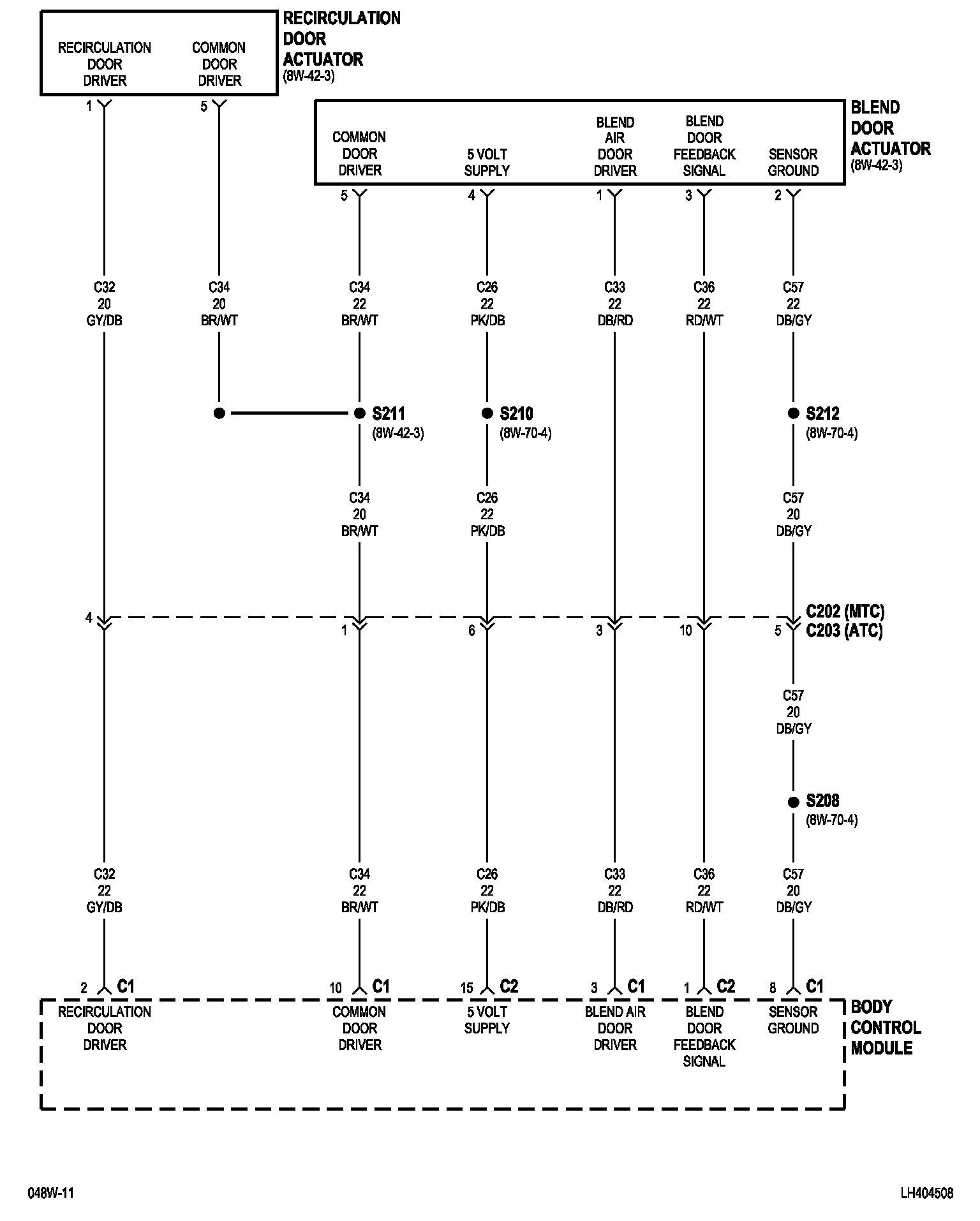

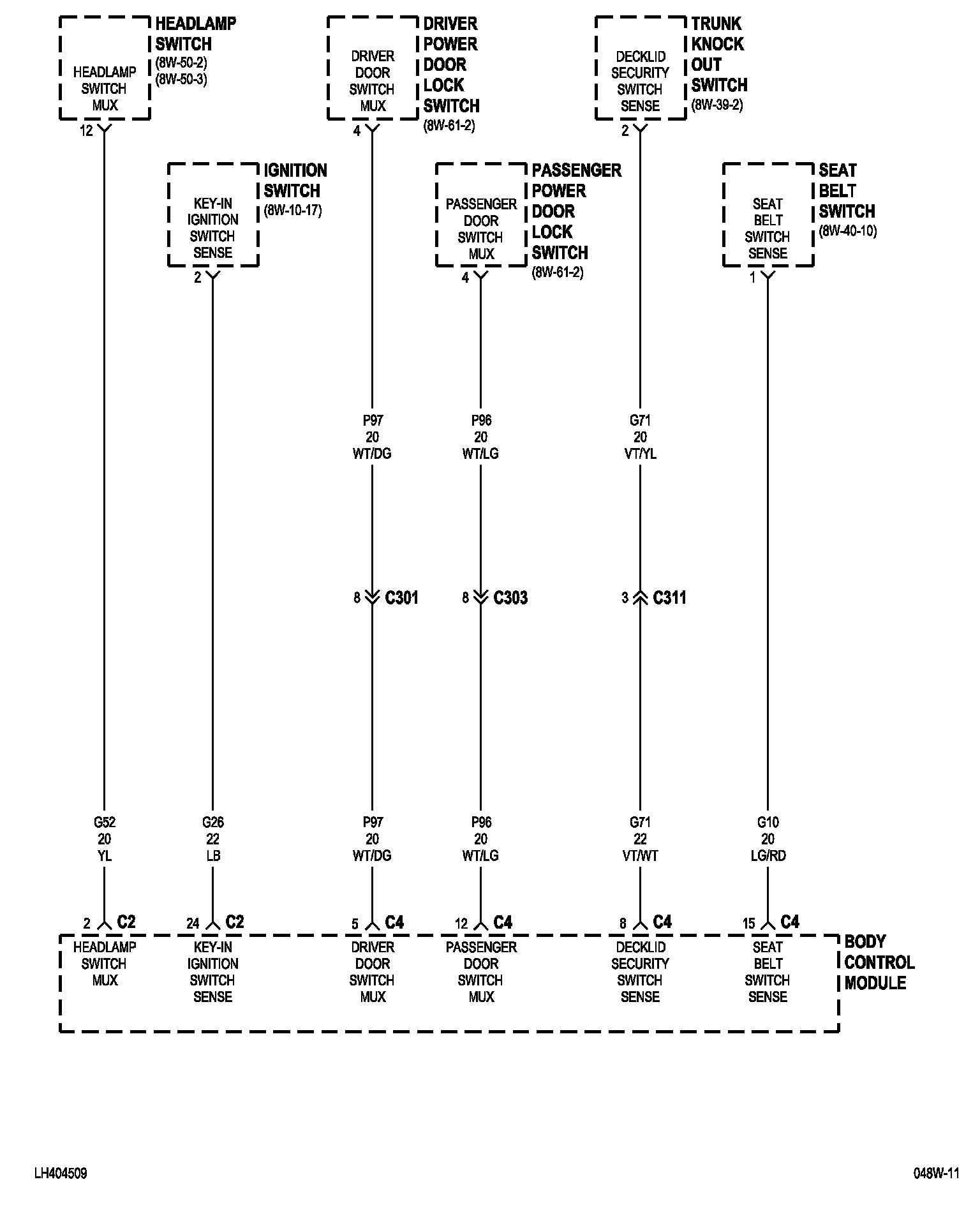

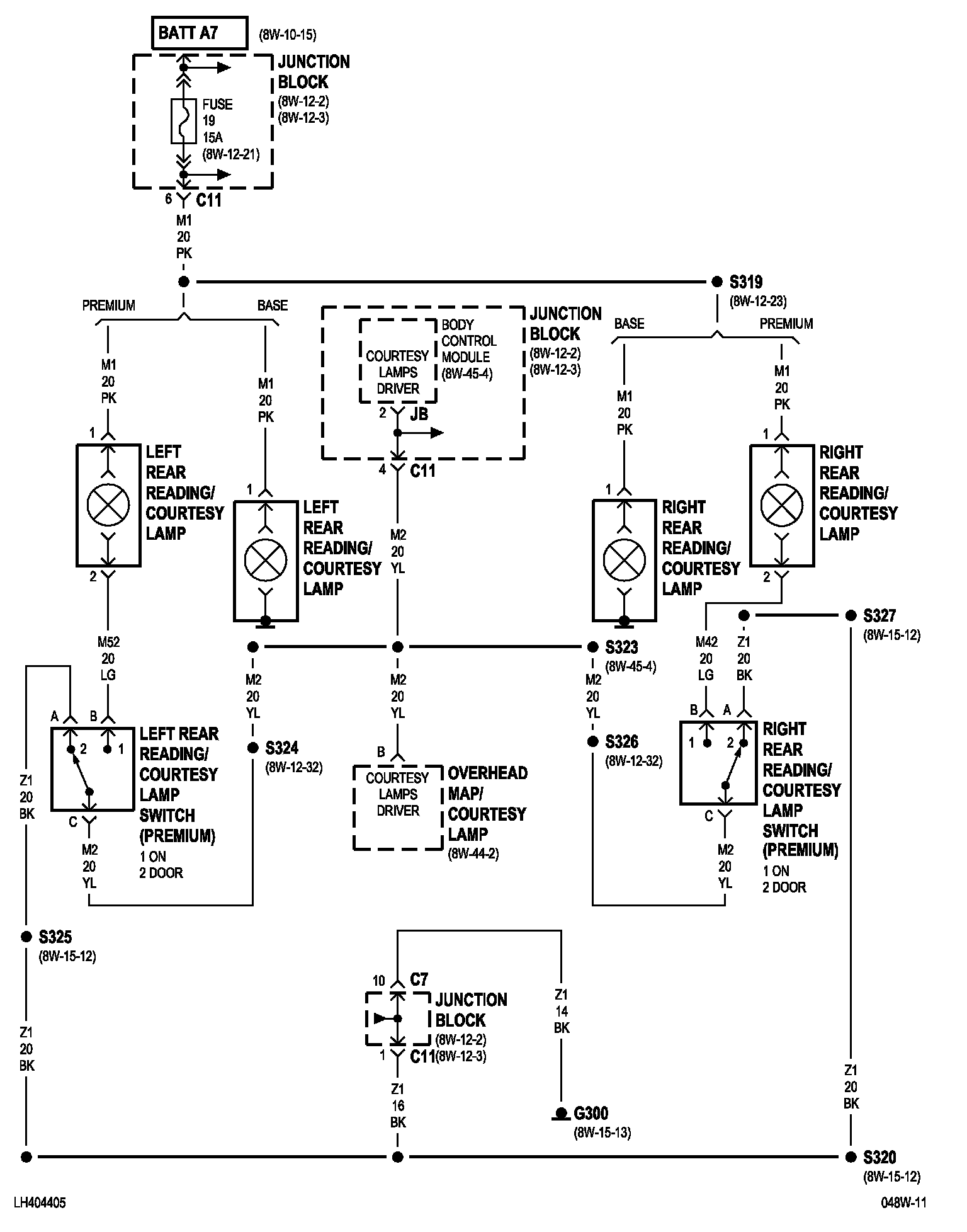

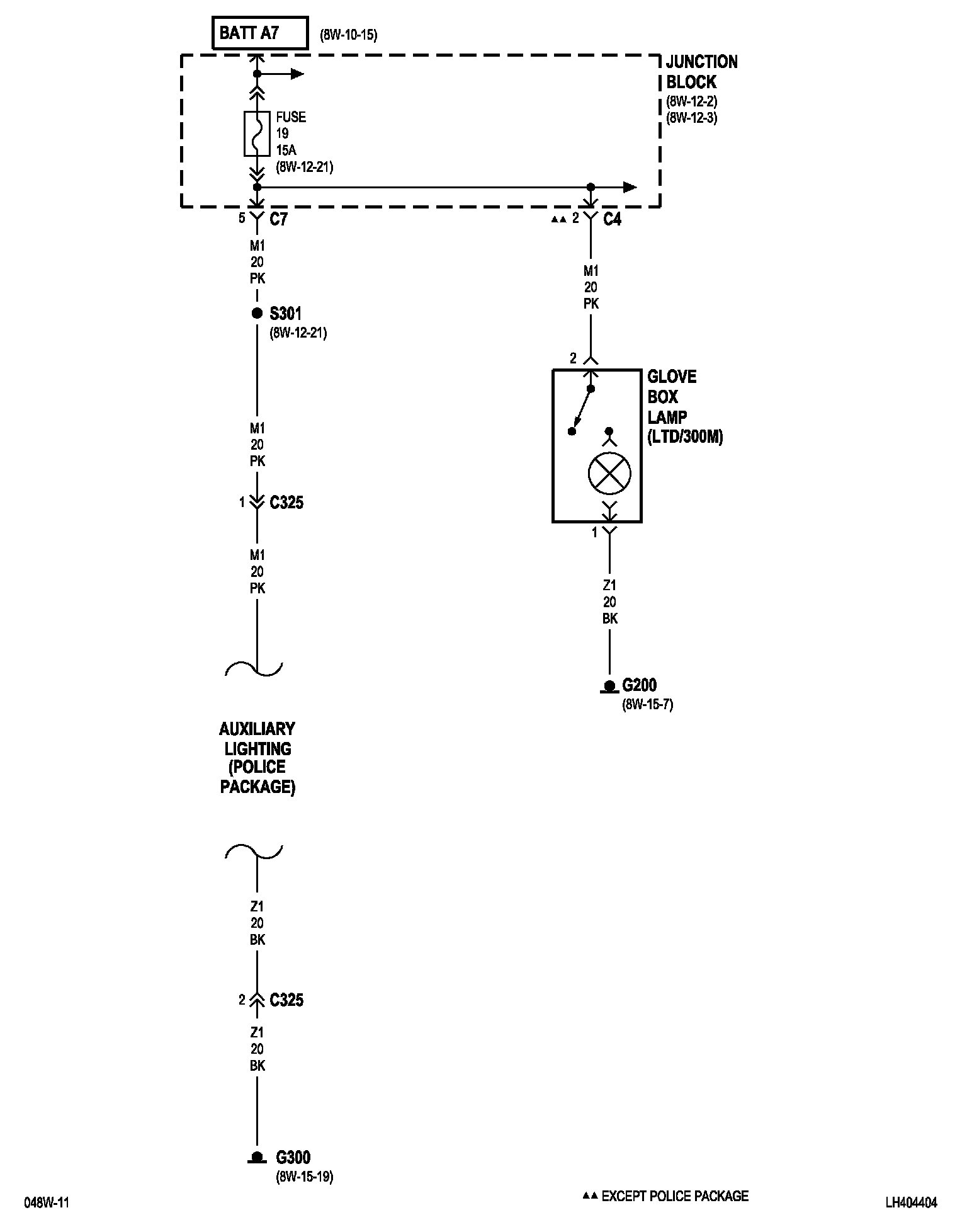

Group 8W-45 (Body Control Module)

8w-44-2:



8w-44-3:



8w-44-4:



8w-44-5:



8w-44-6:

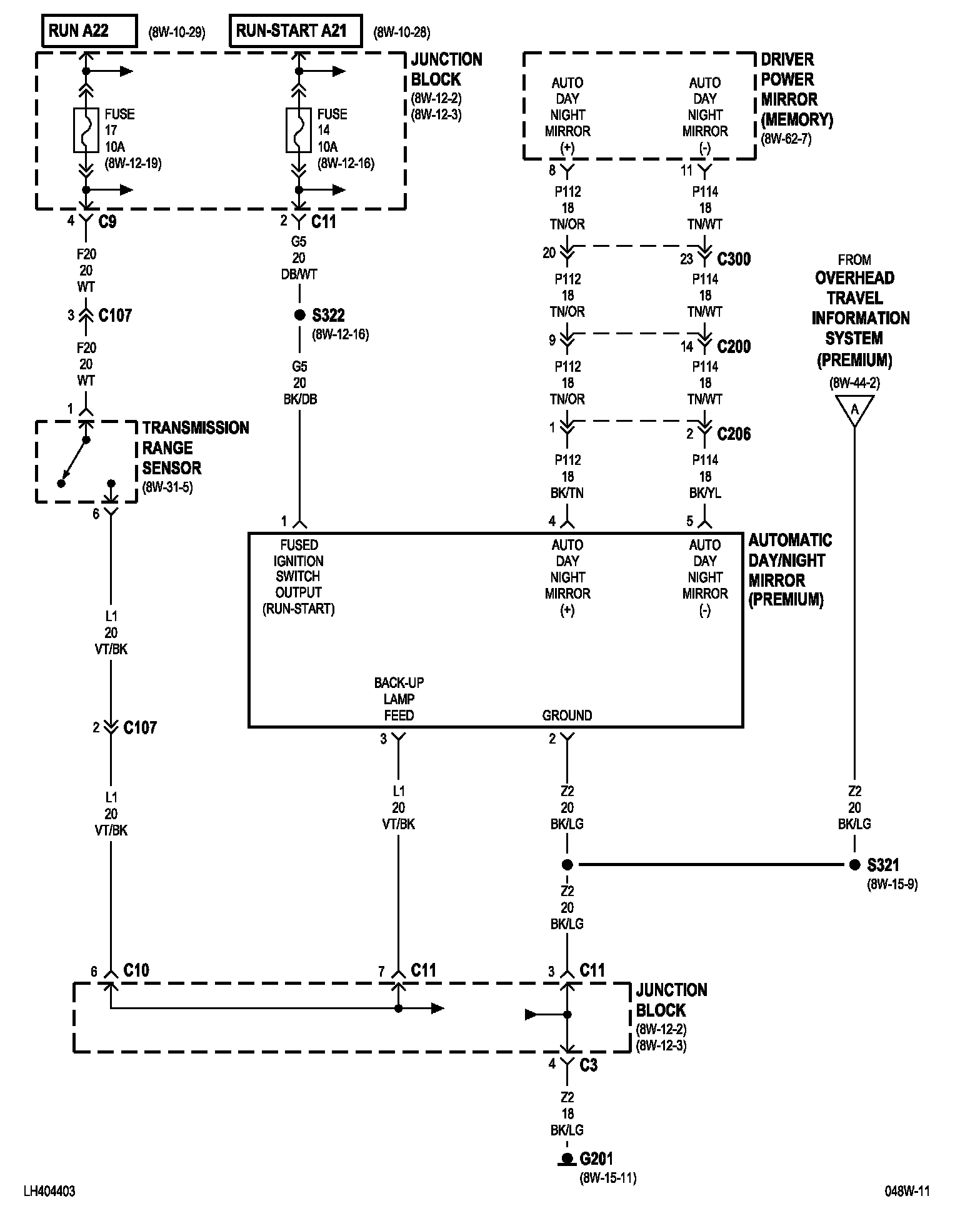

8w-45-7:

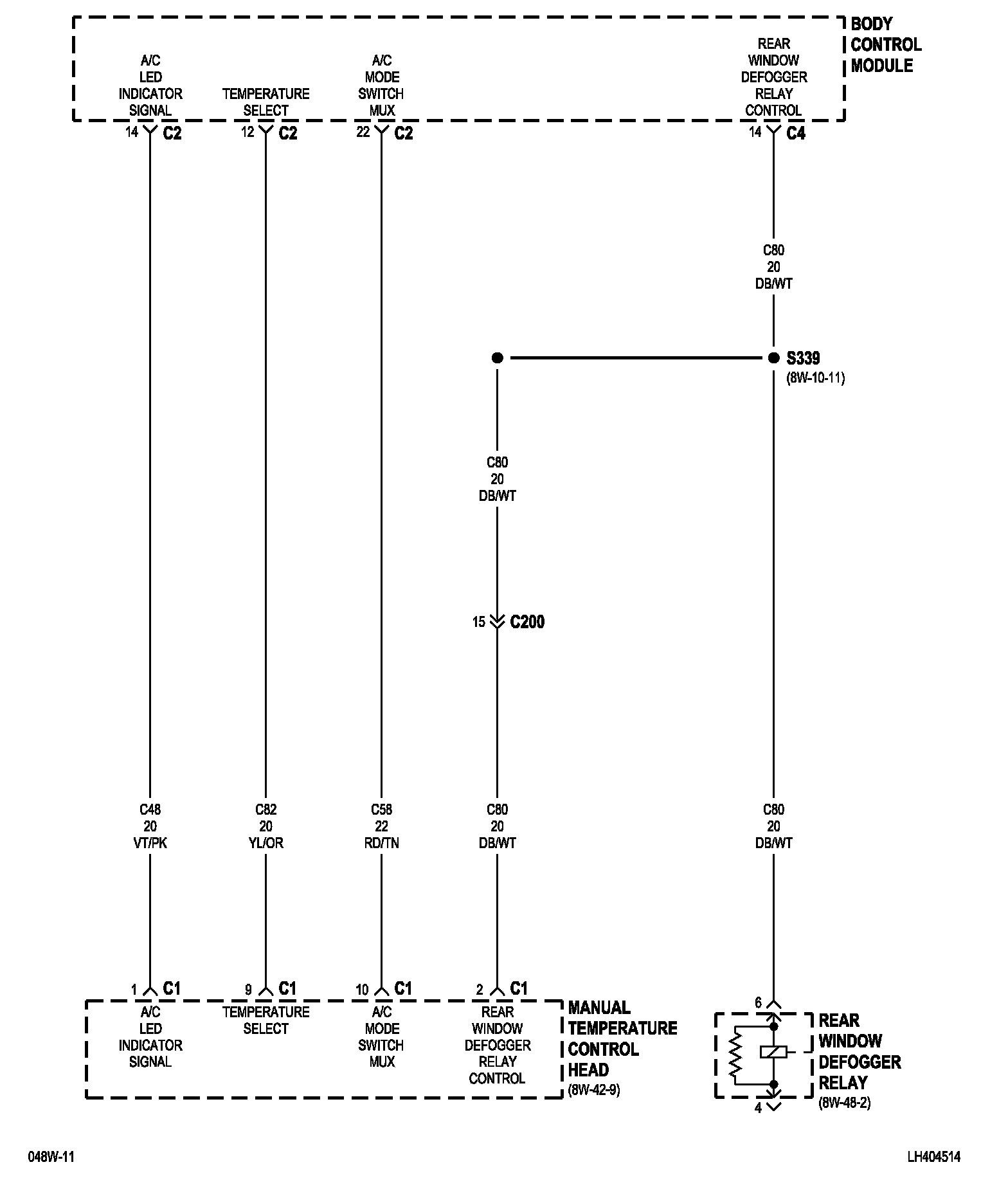

8w-45-8:

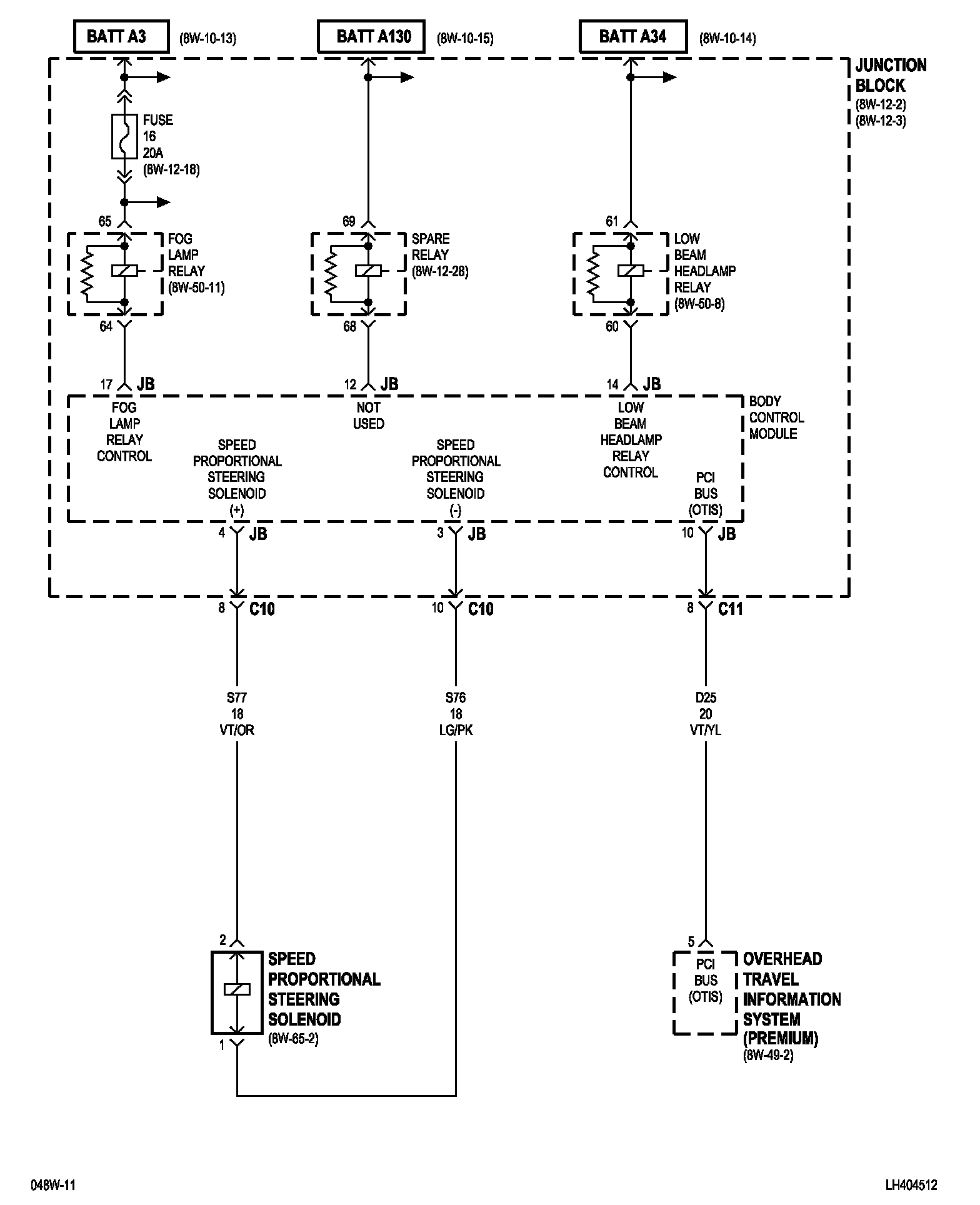

8w-45-9:

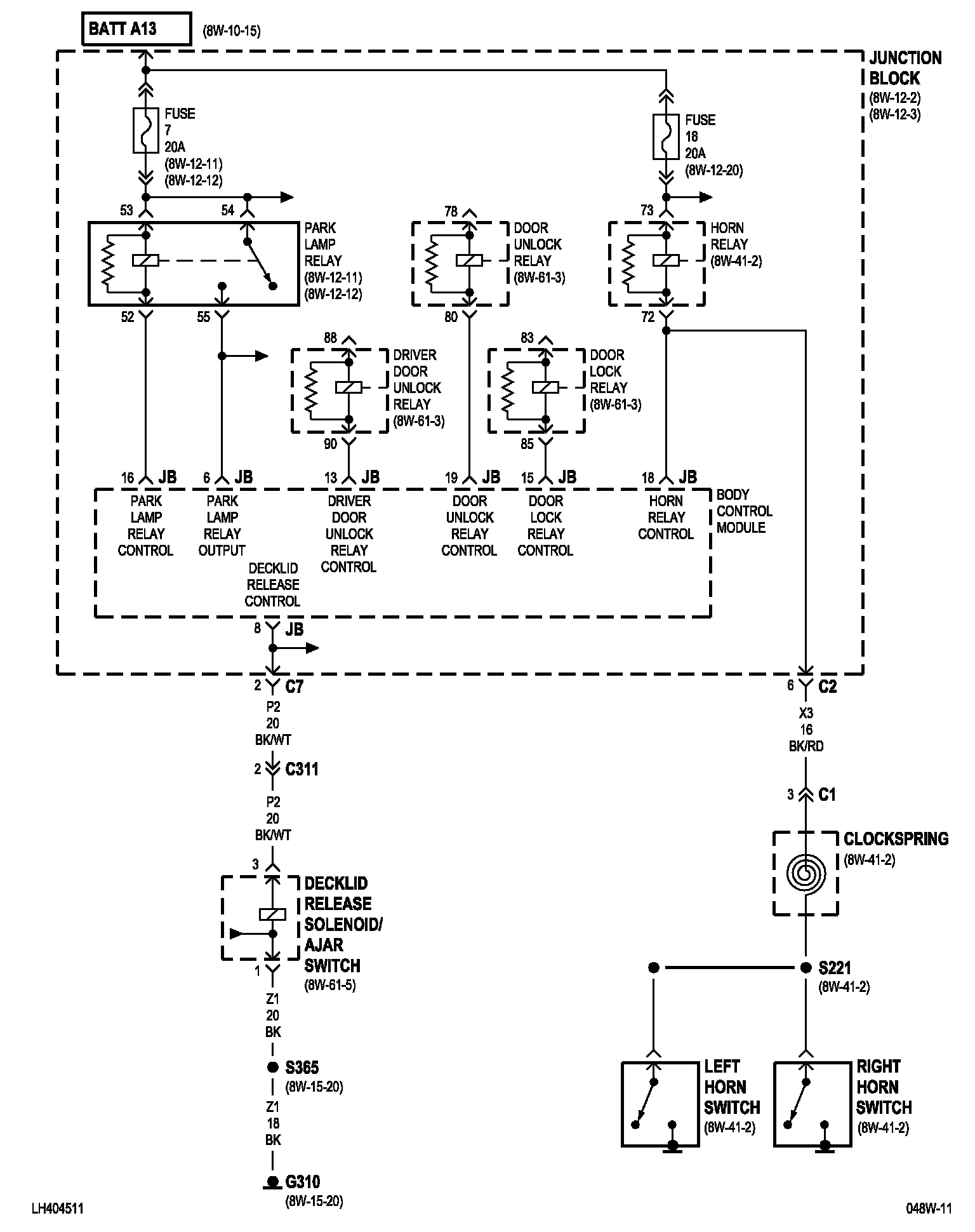

8w-45-10:

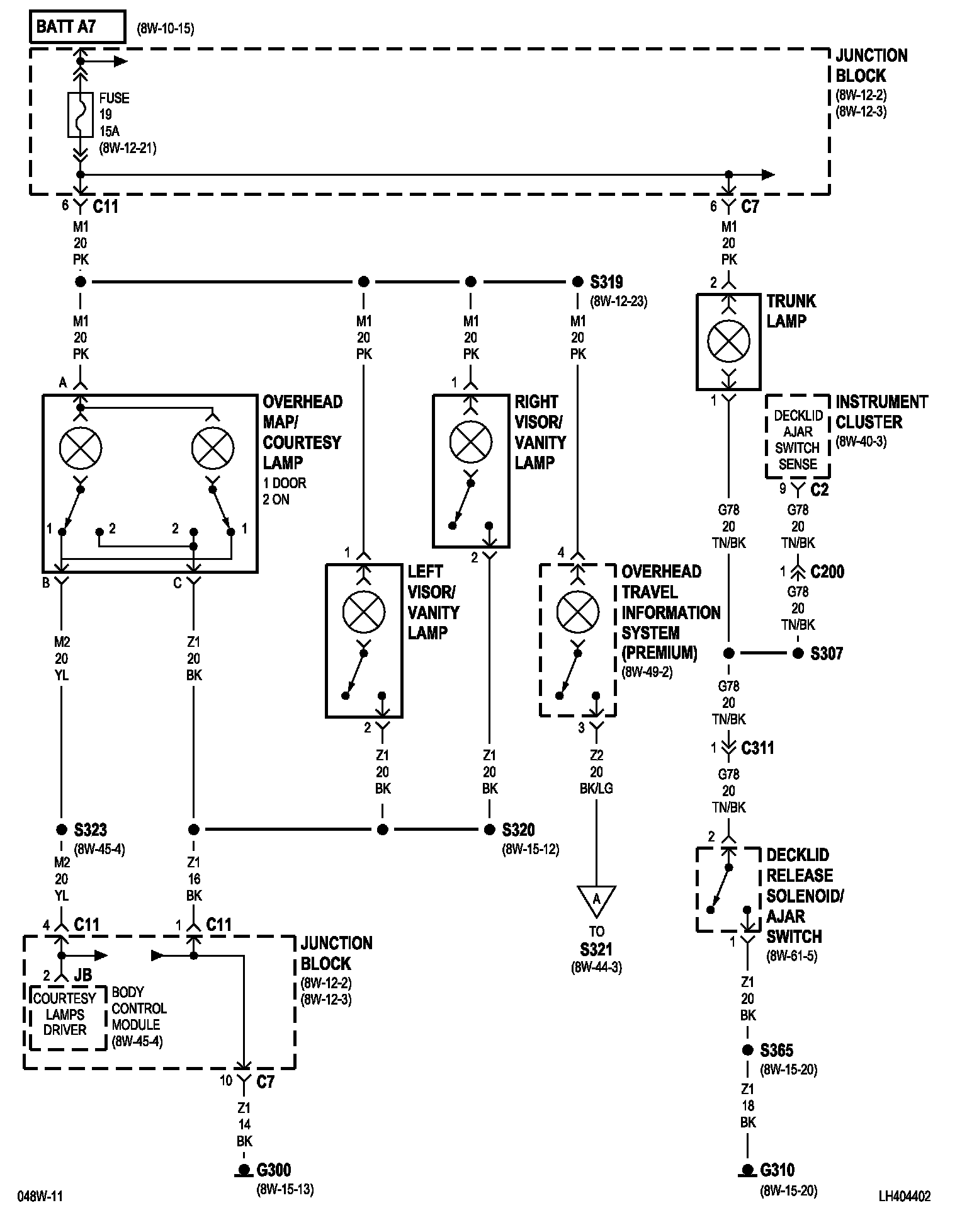

8w-45-11:

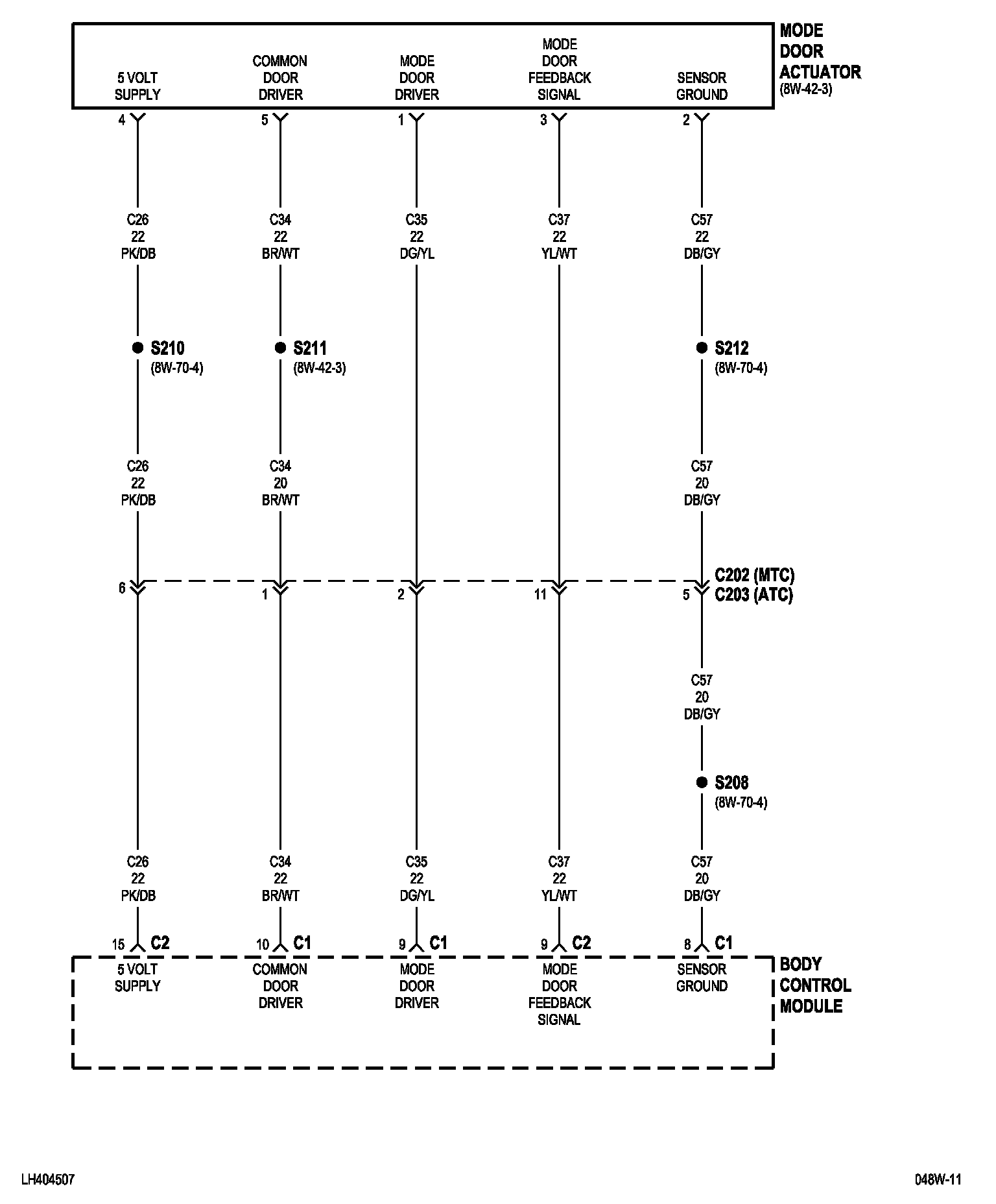

8w-45-12:

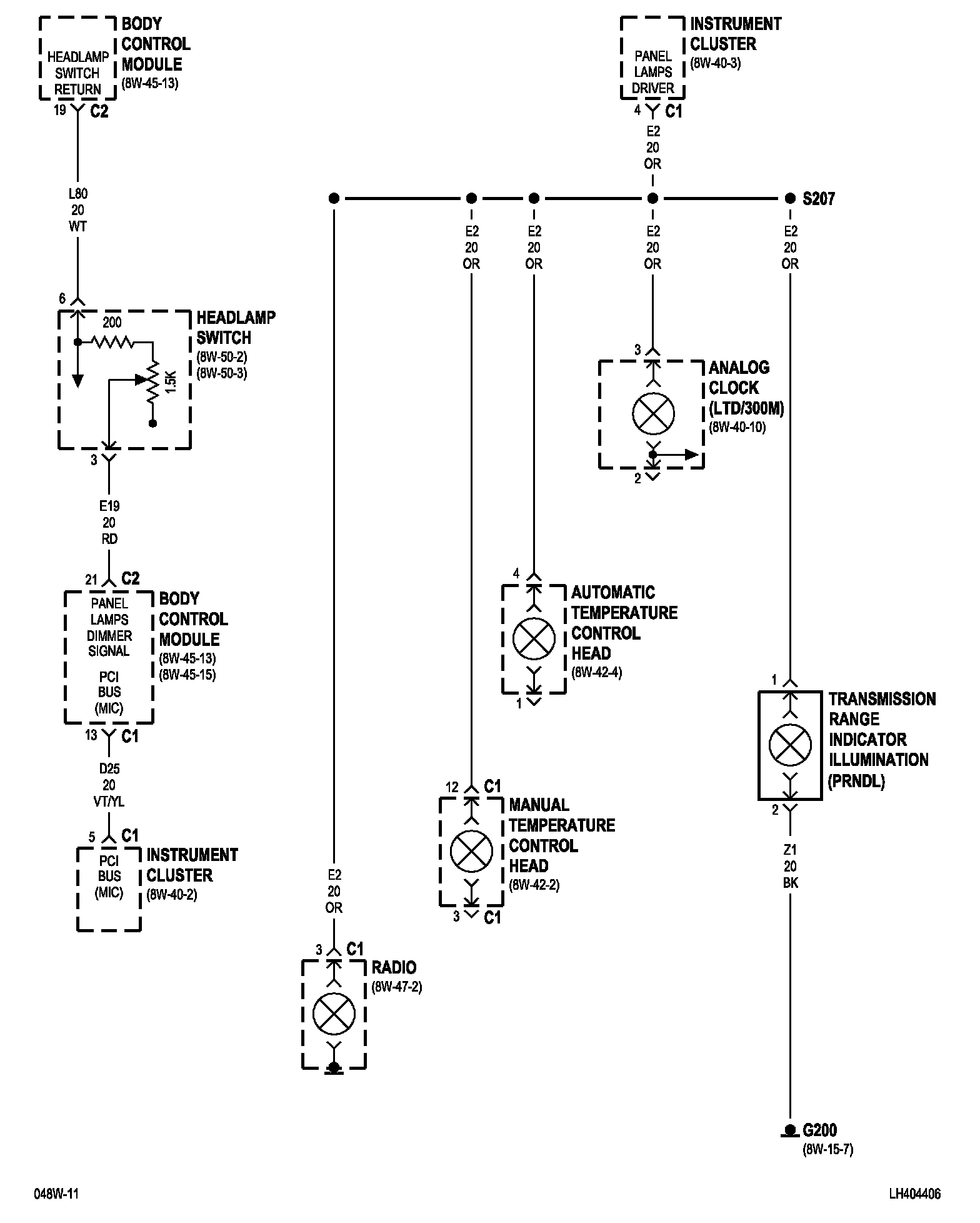

8w-45-13:

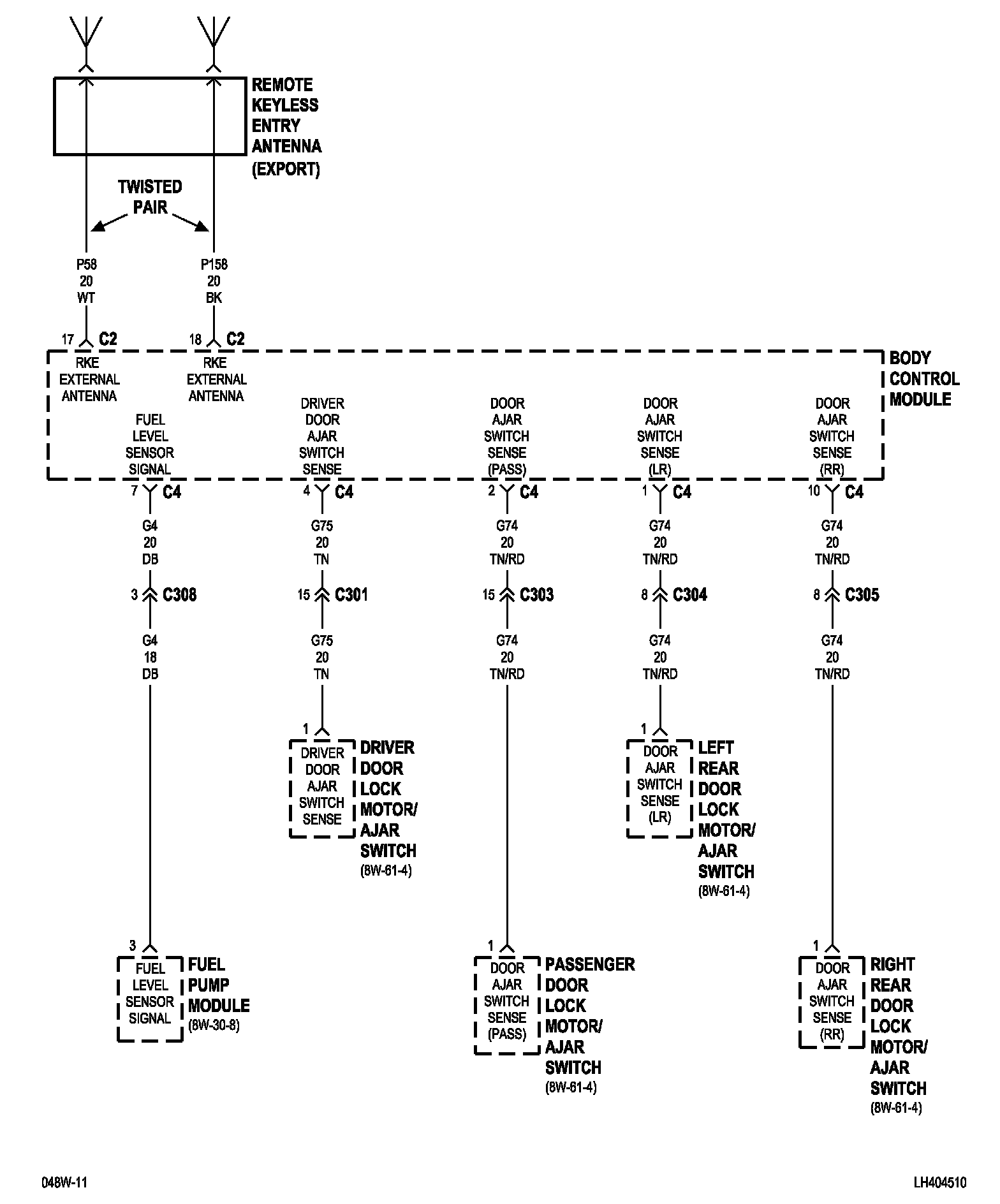

8w-45-14:



8w-45-15:
