Group 8W-11 (Fuse Block)
Group 8W-11 (Fuse Block)

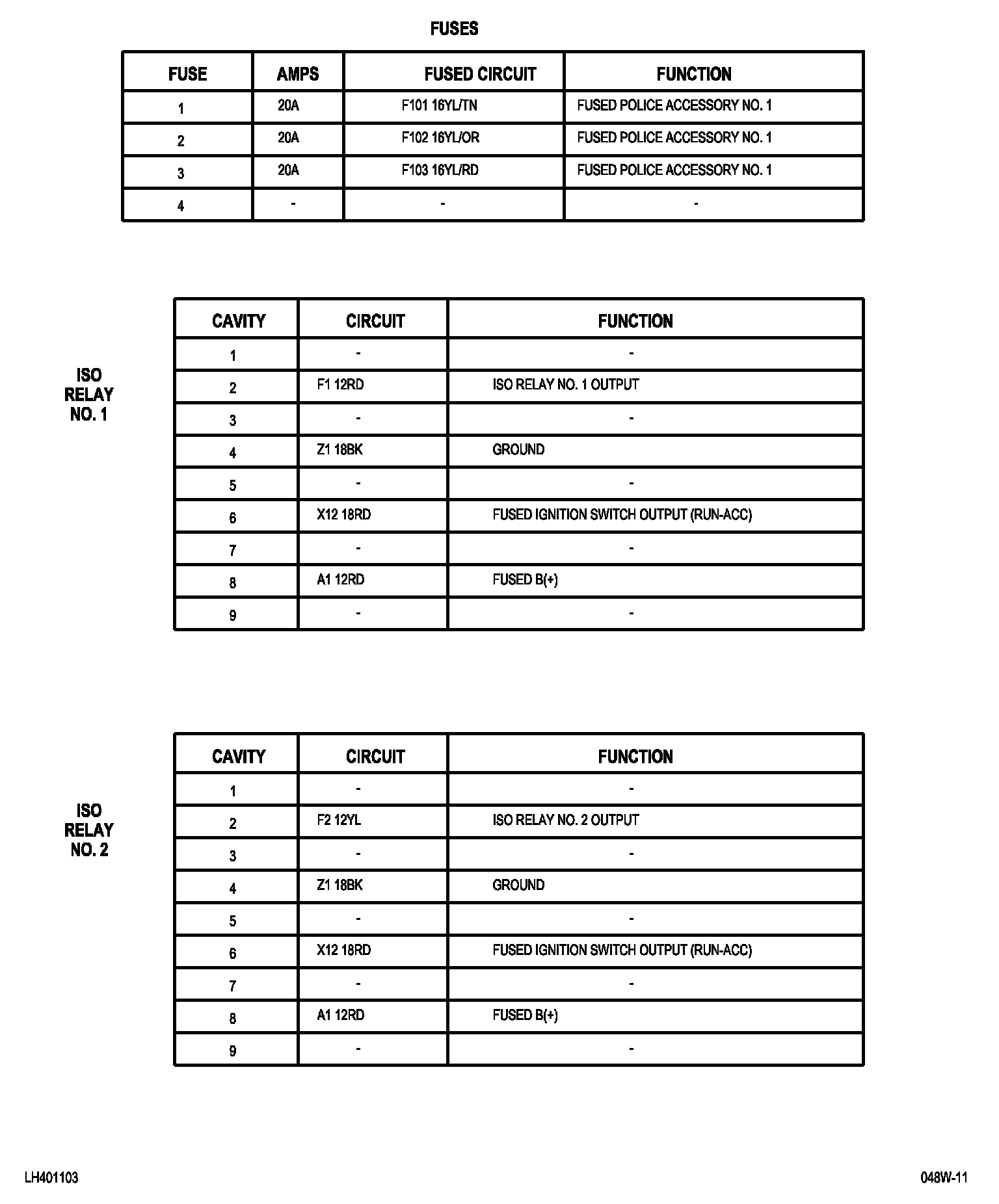

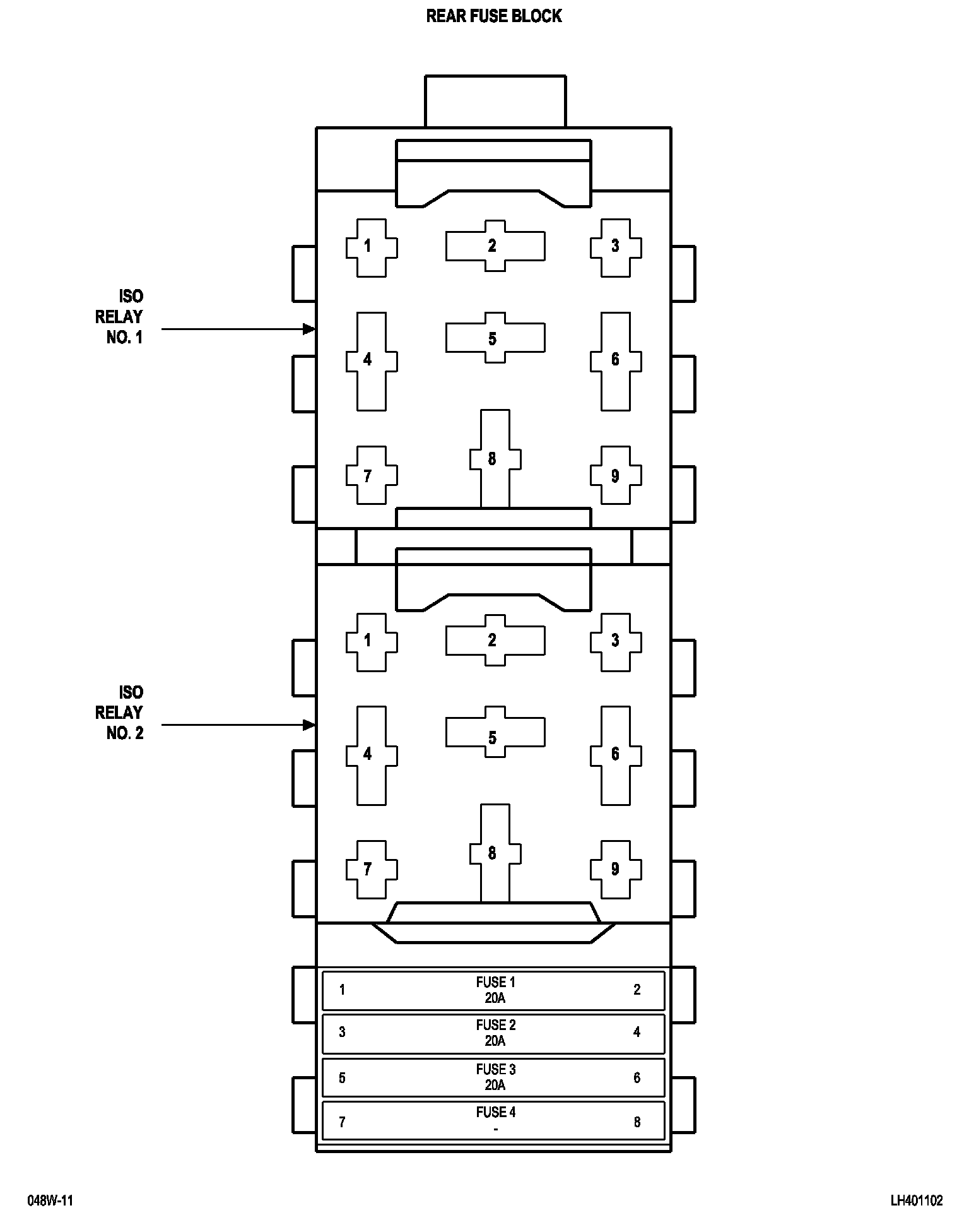

8w-11-2 (Police Package):
8w-11-3 (Police Package):
8w-11-4 (Police Package):
8w-11-5 (Police Package):
8w-11-6 (Police Package):
