Turn Signal Lamp
Turn Signal Lamp
Left Front Park/Turn Signal Lamp (Concorde):

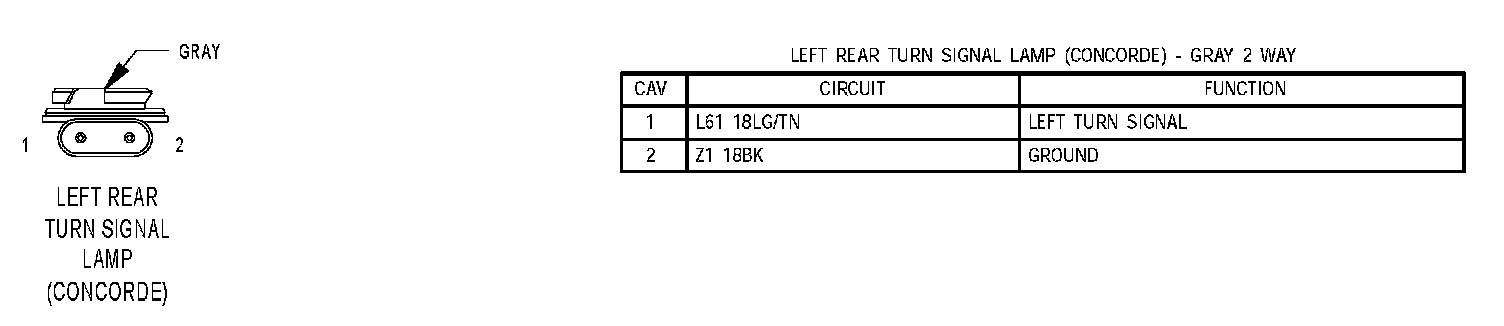

Left Rear Turn Signal Lamp (Concorde):
Right Front Park/Turn Signal Lamp (Except Dodge/300M):

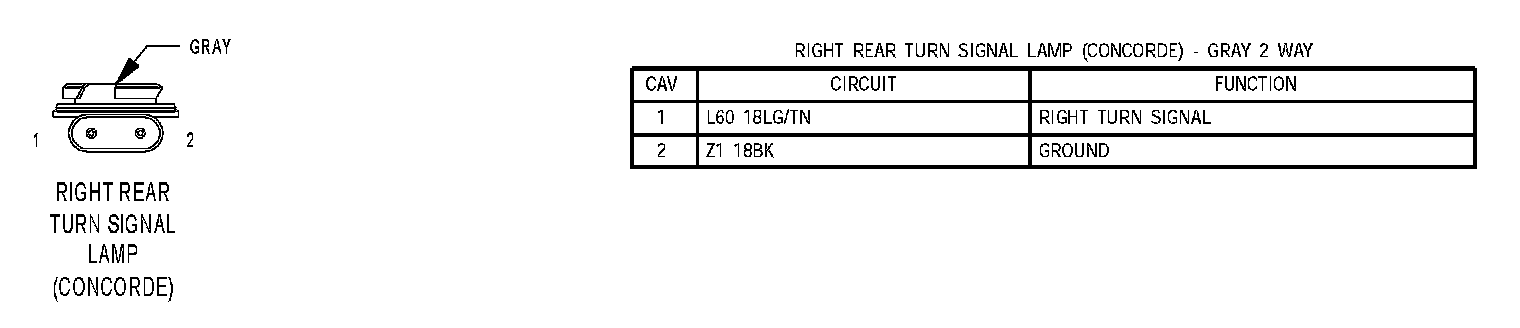

Right Rear Turn Signal Lamp (Concorde):
