Power Door Lock Switch

Driver Cylinder Lock Switch:

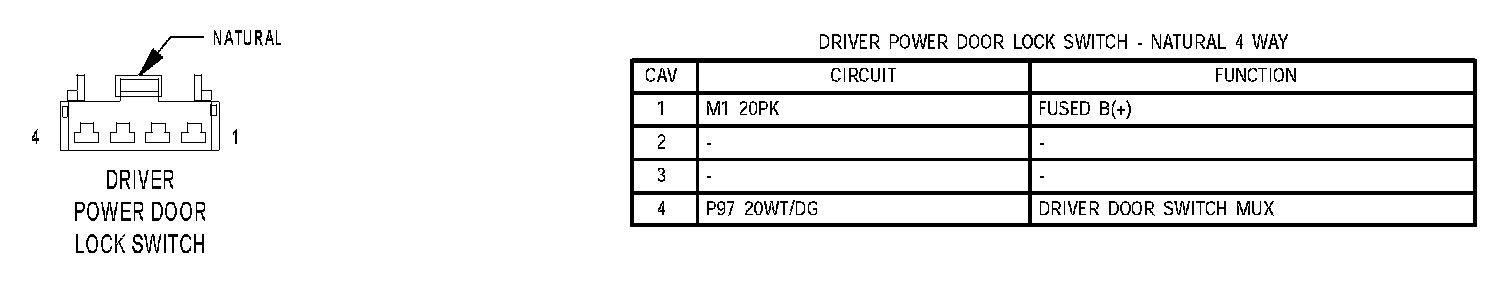

Driver Power Door Lock Switch:



Passenger Door Lock Motor/Ajar Switch:

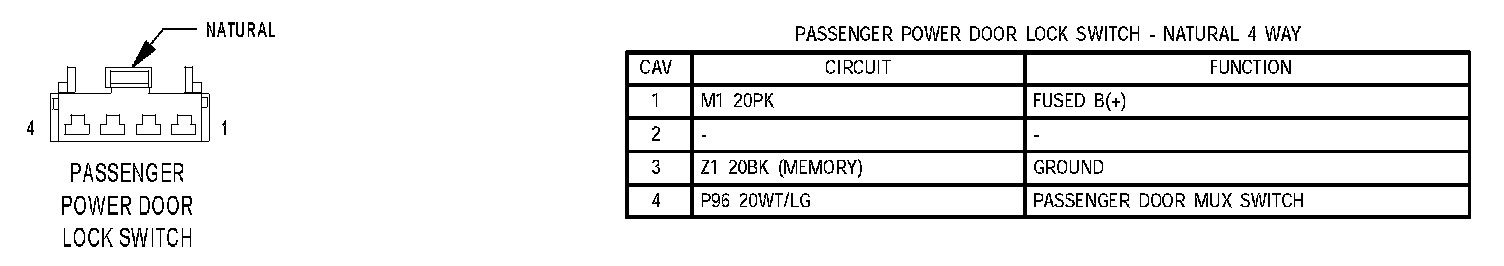

Passenger Power Door Lock Switch:

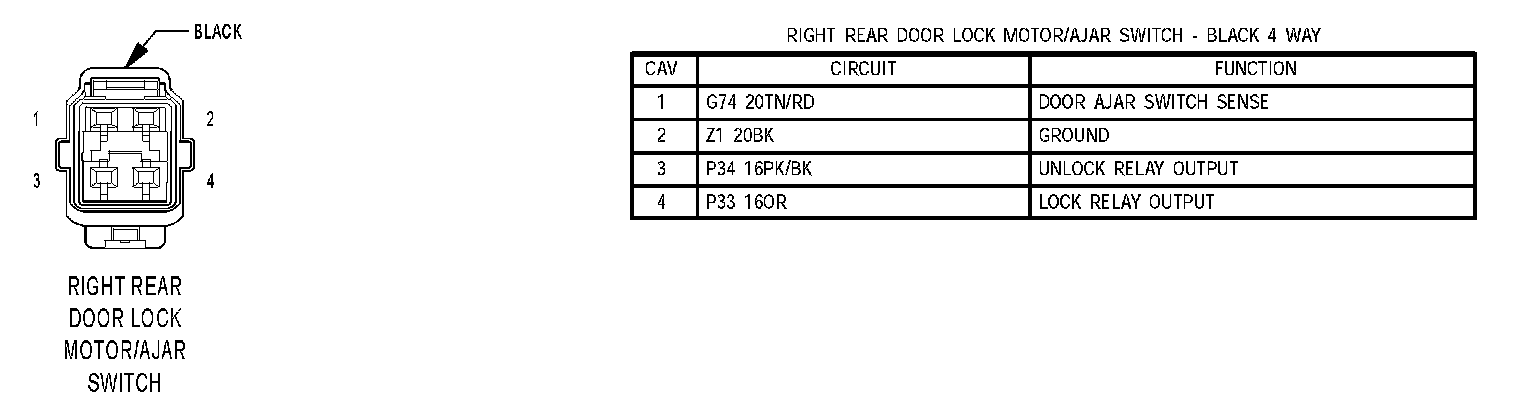

Right Rear Door Lock Motor/Ajar Switch:
