Power Mirror Control Module

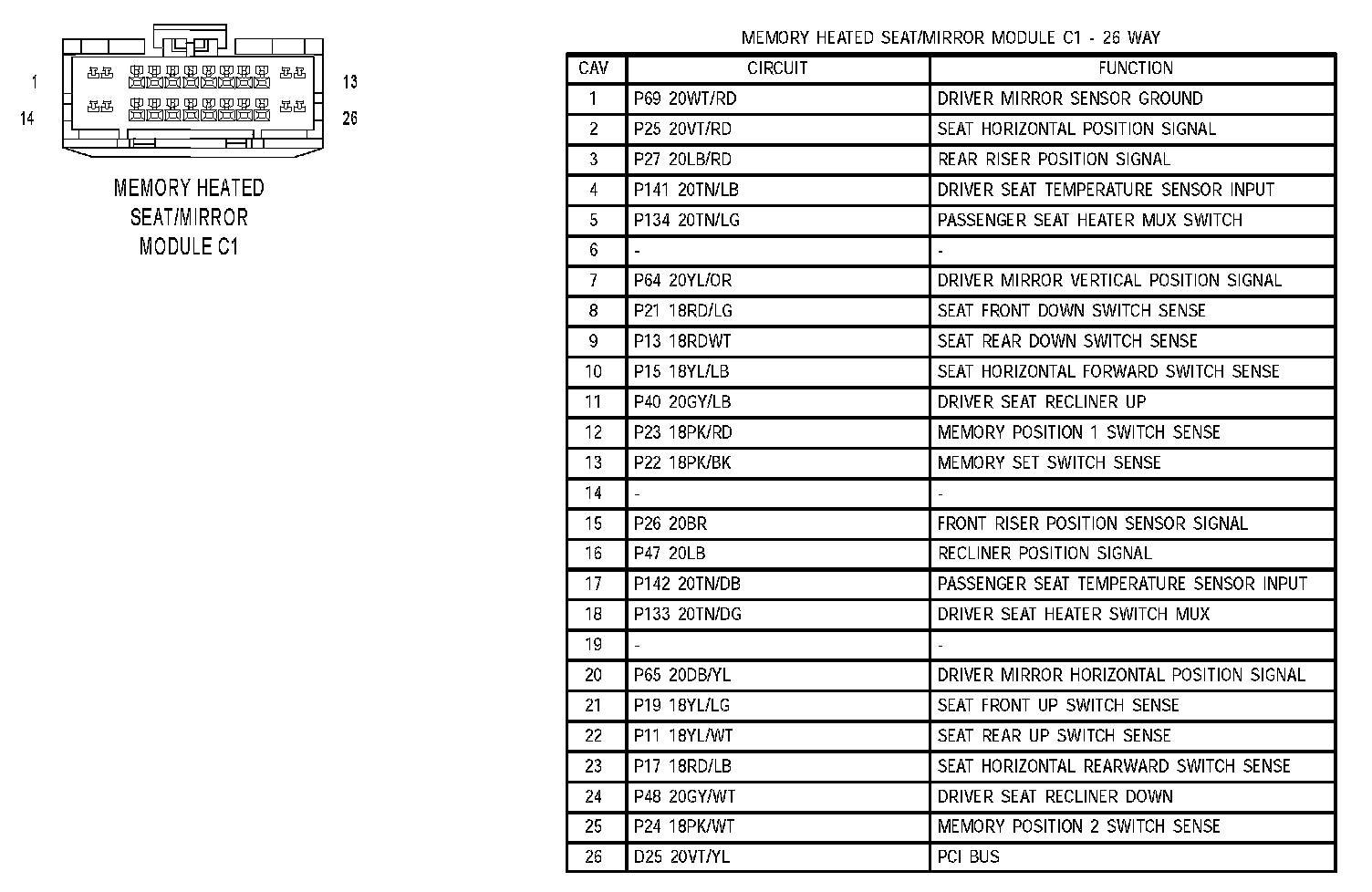

Memory Heated Seat Mirror Module C1:

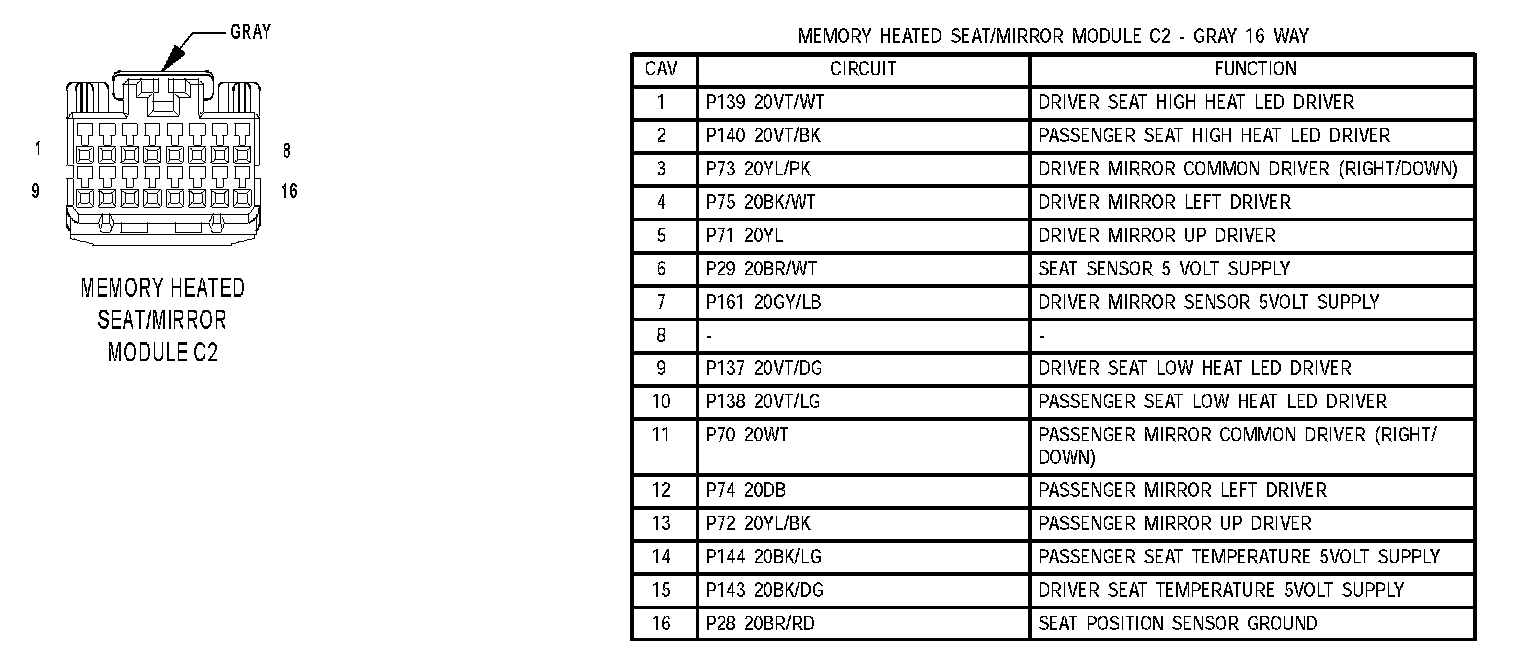

Memory Heated Seat Mirror Module C2:

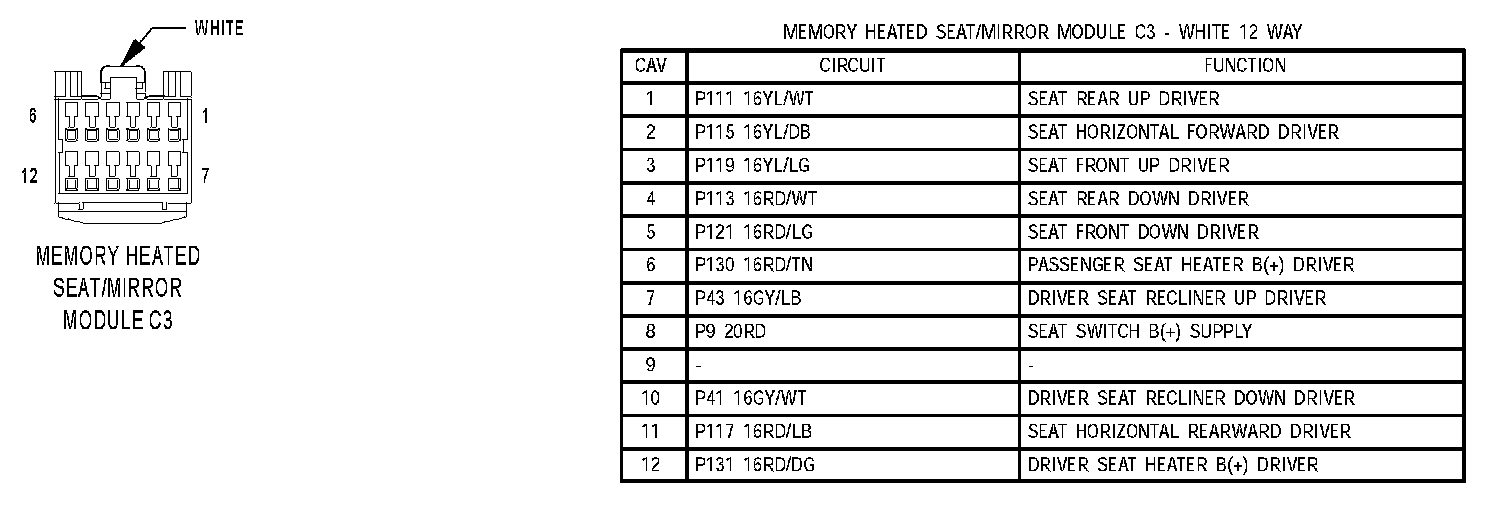

Memory Heated Seat Mirror Module C3:

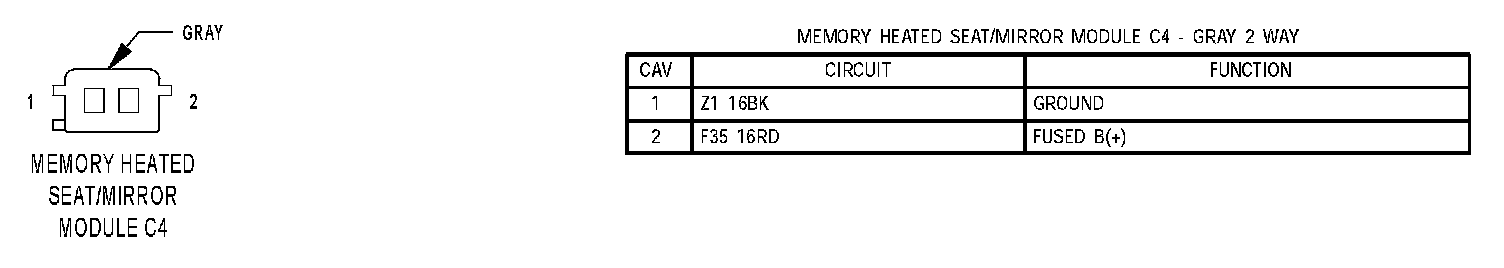

Memory Heated Seat Mirror Module C4:
