Control Assembly, HVAC

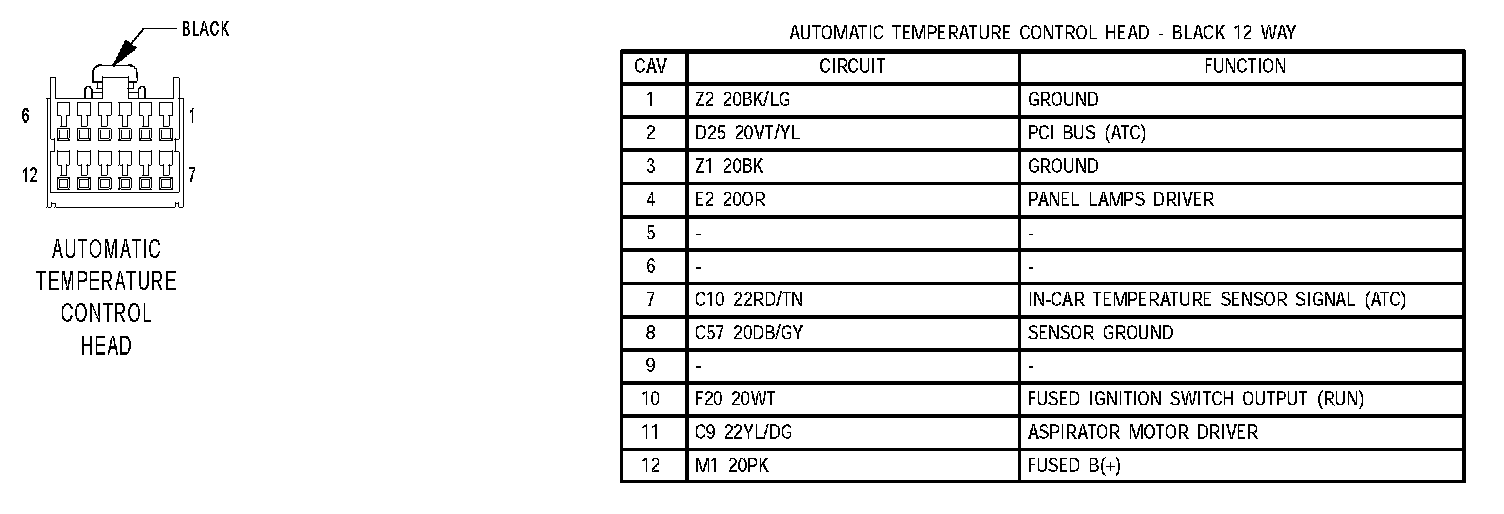

Automatic Temperature Control Head:

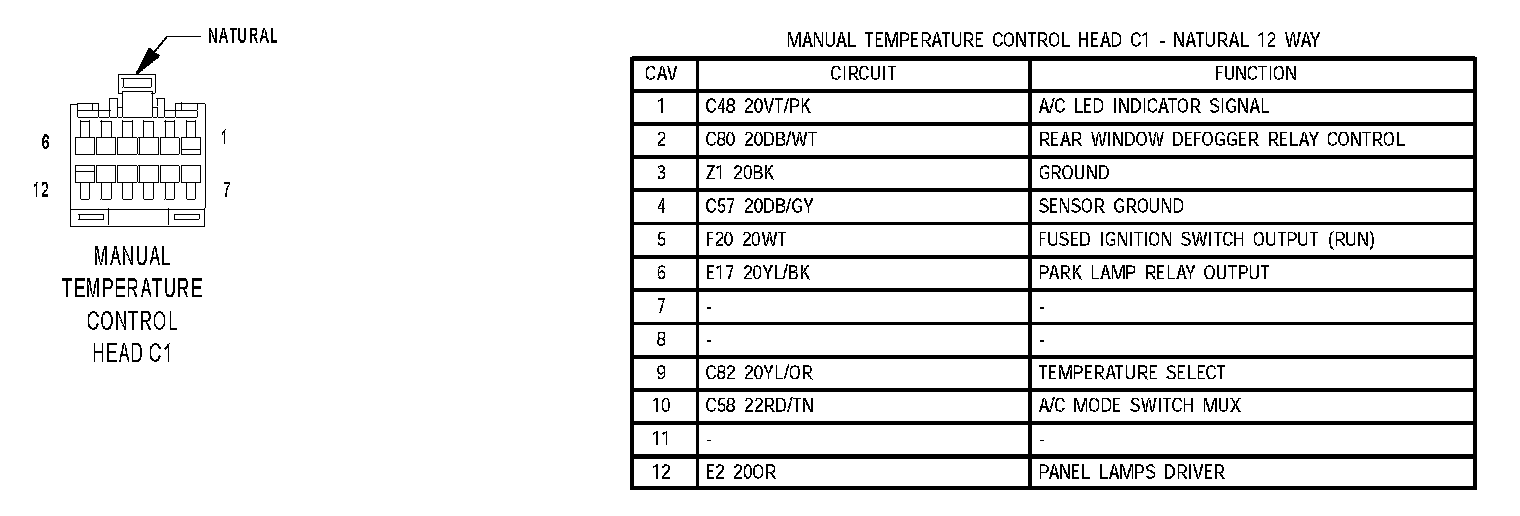

Manual Temperature Control Head C1:

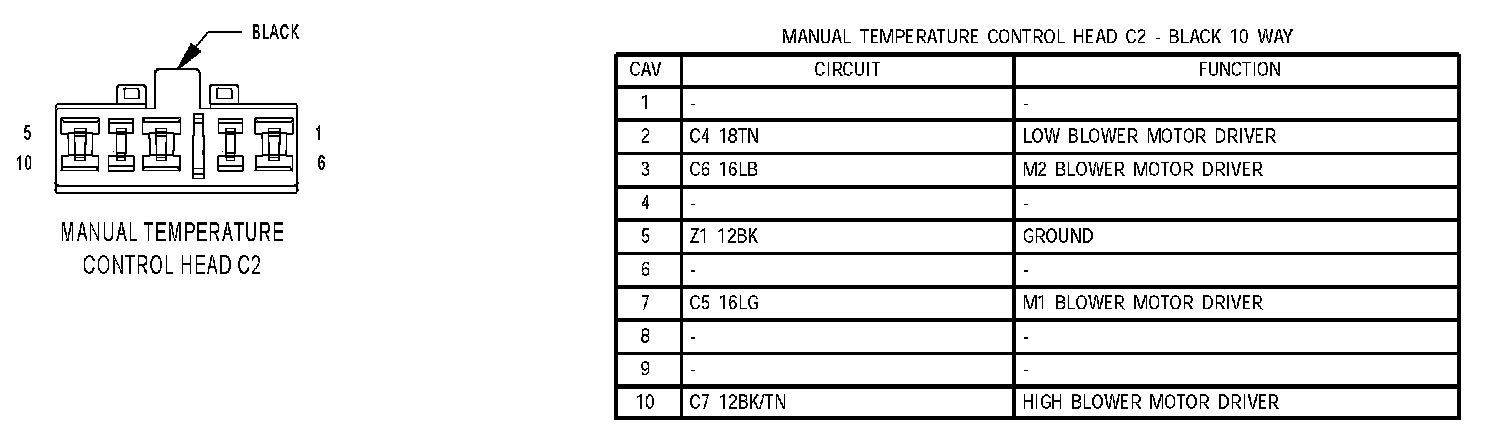

Manual Temperature Control Head C2:
