Home
>>
Chrysler
>>
2004
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C322 - C330
>>
C330
C330

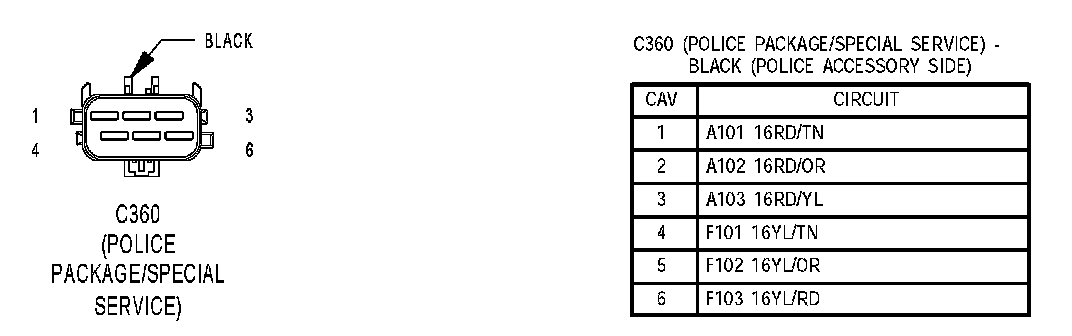

C360 (Police Package/Special Service):

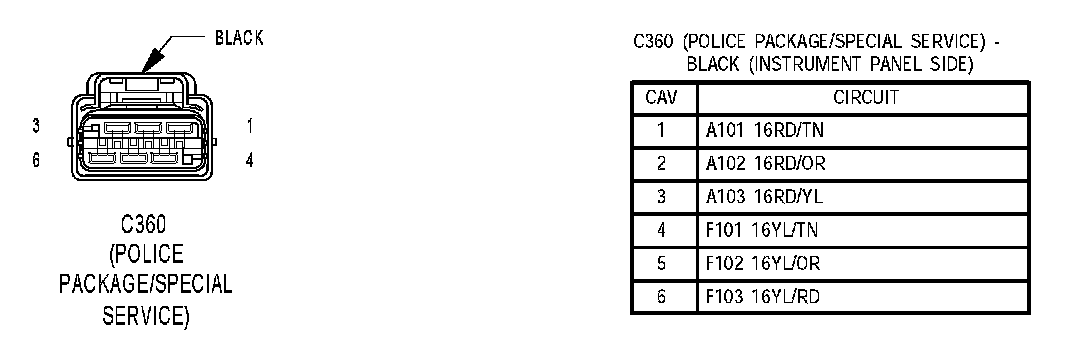

C360 (Police Package/Special Service):
