Home
>>
Chrysler
>>
2004
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C311 - C315
>>
C315
C315

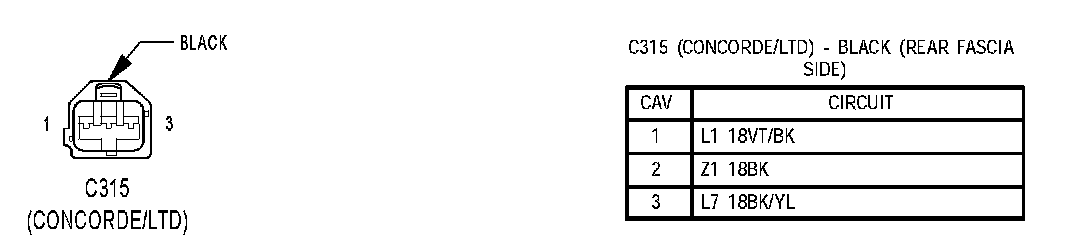

C315 (Concorde/LTD):

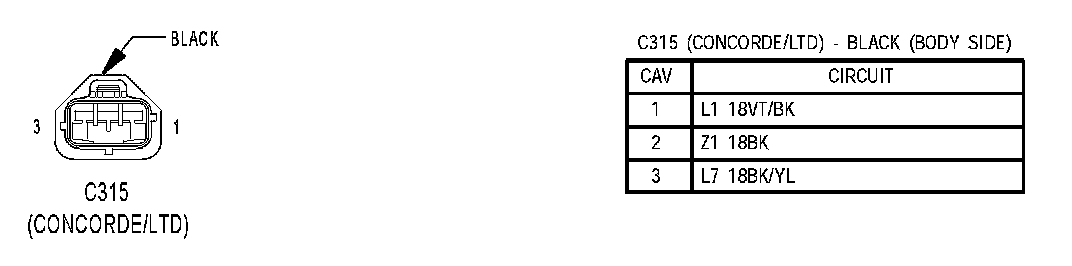

C315 (Concorde/LTD):
