Home >> Chrysler >> 2004 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> C311 - C315 >> C313

C313

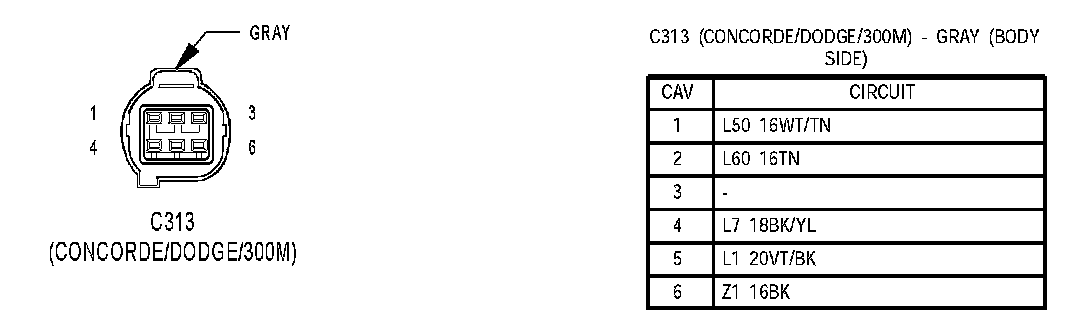

C313 (Concorde/Dodge/300M):

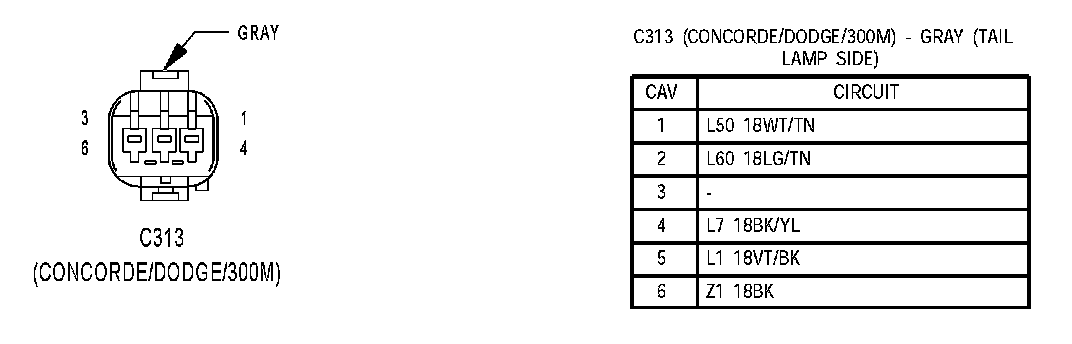

C313 (Concorde/Dodge/300M):

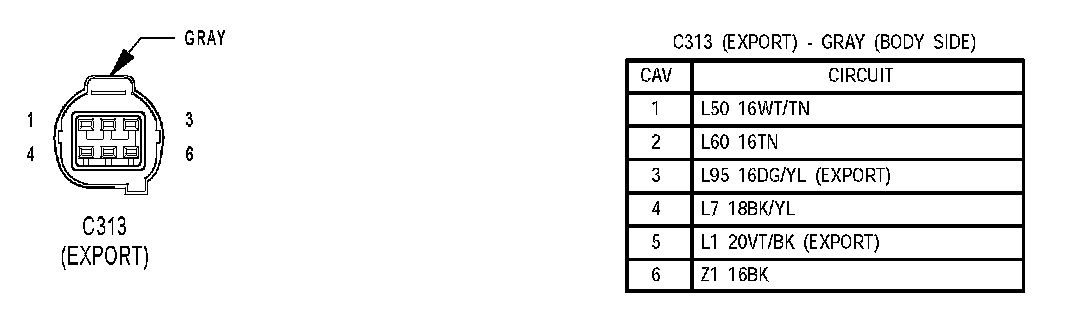

C313 (Export):

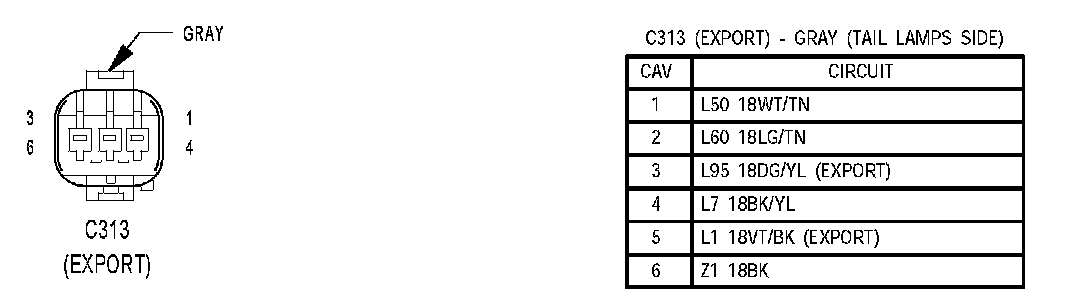

C313 (Export):
