FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2004
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C115 - C202
>>
C120
C120

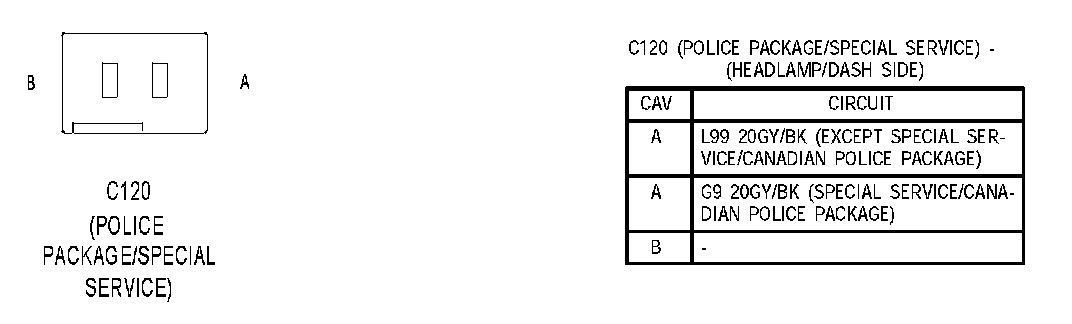

C120 (Police Package/Special Service):

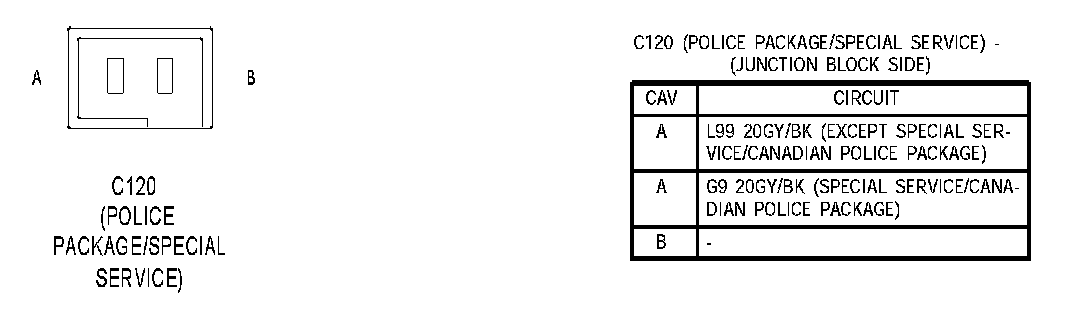

C120 (Police Package/Special Service):
