Home >> Chrysler >> 2004 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom >> Trac On Indicator Never/Always On

Trac On Indicator Never/Always On

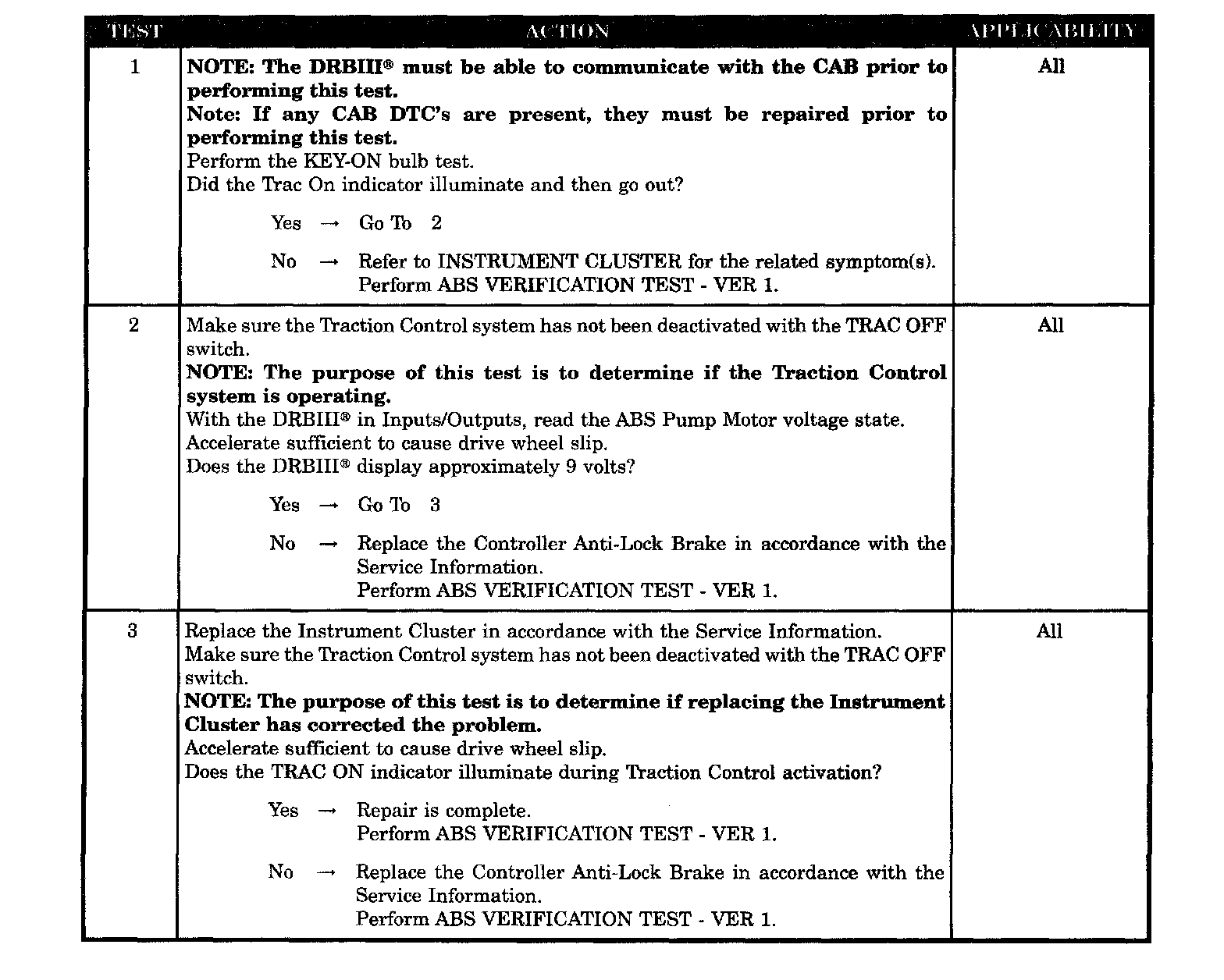

Test 1-3:





Symptom:
*TRAC ON INDICATOR NEVER/ALWAYS ON

POSSIBLE CAUSES
- FAILS KEY-ON BULB TEST
- CHECK TRACTION CONTROL OPERATION
- RECHECK TRAC ON INDICATOR
- CAB - NO TRAC ON INDICATOR
