Driver Heated Seat Switch

REMOVAL
1. Disconnect and isolate the negative battery cable remote terminal from the remote battery post.

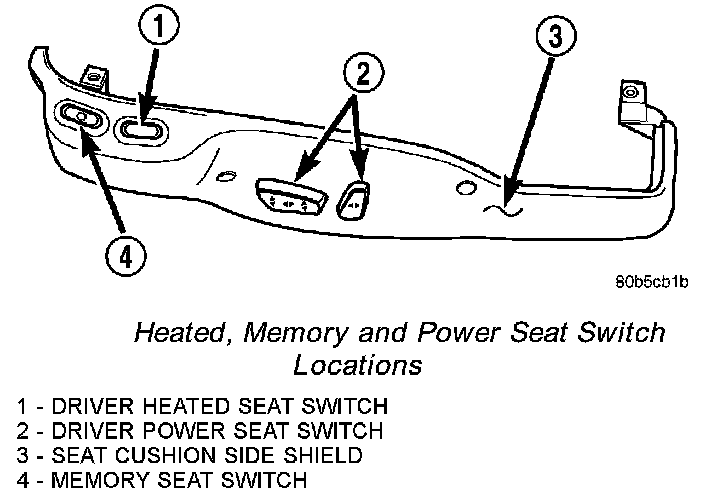

Heated, Memory And Power Seat Switch Locations:

2. Remove the appropriate seat cushion side shield.
3. Working from the underside of the switch, gently rock the switch back and forth out of its mounting location.
4. Disconnect the heated seat switch electrical connector and remove the switch.

INSTALLATION
1. Connect the heated seat switch electrical connector
2. Push the heated seat switch into its mounting location.
3. Install the appropriate seat cushion side shield.
4. Connect the remote negative battery cable.
