Speaker: Service and Repair
FRONT DOOR - LOWERREMOVAL
1. Disconnect and isolate the battery negative cable.
2.Open drivers door.
Fig.14 Front Door Speakers:
3. Using a trim stick (special tool #C-4755), carefully pry speaker grille away from door trim panel.
4. Remove three speaker retaining screws.
5. Pull speaker away from door and disconnect wiring.
INSTALLATION
1. Connect wiring and place speaker in door speaker opening.
2. Install three speaker retaining screws.
3. Place speaker grille into place and firmly press into place.
4. Connect battery negative cable.
FRONT DOOR - UPPER
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Open drivers door.
3. Remove two speaker enclosure attachment screws holding the enclosure ring and grill to the door.
4. Remove two speaker retaining screws.
5. Pull speaker away from door and disconnect wiring.
INSTALLATION
1. Connect wiring and place speaker in door speaker opening.
2. Install two speaker retaining screws.
3. Install two speaker enclosure attachment screws holding the enclosure ring and grill to the door.
4. Connect battery negative cable.
INSTRUMENT PANEL
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel top cover.
3. Remove two retaining screws to center speaker and disconnect wiring connector.
4. Remove speaker from vehicle.
INSTALLATION
1. Place speaker into position on instrument panel.
2. connect wiring connector, install two retaining screws to center speaker.
3. Install instrument panel top cover.
4. Connect battery negative cable.
REAR DOOR
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Open rear door.

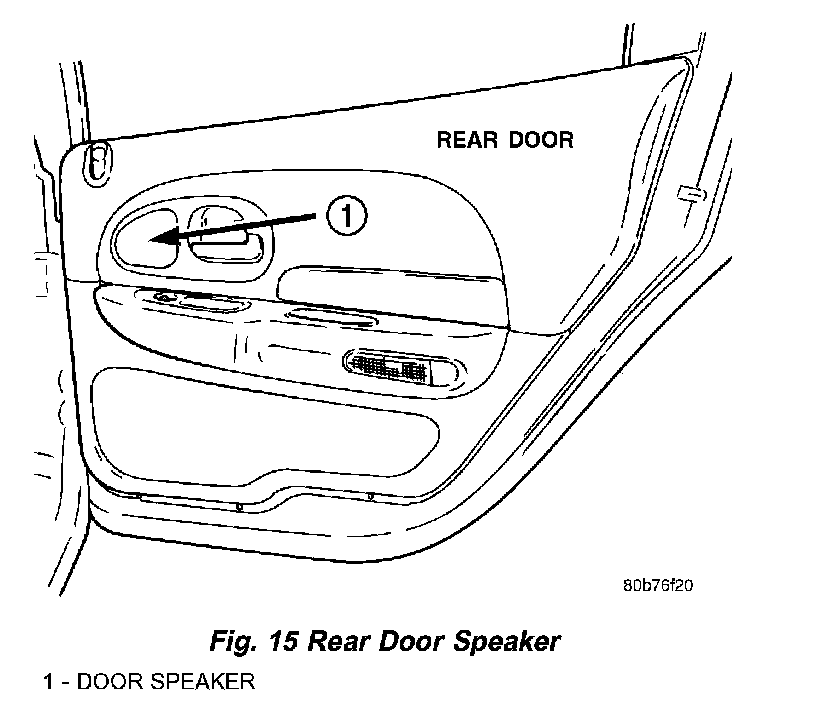

Fig.15 Rear Door Speakers:
3. Using a trim stick (special tool #C-4755), carefully pry speaker grille away from door trim panel.
4. Remove two speaker retaining screws.
5. Pull speaker away from door and disconnect wiring.
INSTALLATION
1. Connect wiring and place speaker in door speaker opening.
2. Install two speaker retaining screws.
3. Place speaker grille into place and firmly snap into place on the door trim panel.
4. Connect battery negative cable.
REAR SHELF
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the rear shelf trim panel. (Refer to BODY/INTERIOR/REAR SHELF TRIM PANEL - REMOVAL).
3. Remove four retaining screws.
4. Remove speaker and disconnect wire connector.
INSTALLATION
1. Connect wire connector and place speaker into speaker opening.
CAUTION: Be sure that the wiring connectors are facing forward when installed.
2. Install the four retaining screws.
3. Install the rear shelf trim panel.
4. Connect battery negative cable.
