Radio/Stereo: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center trim bezel.
3. Remove four radio mounting screws.
4. Pull radio from panel and disconnect wiring from radio.

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

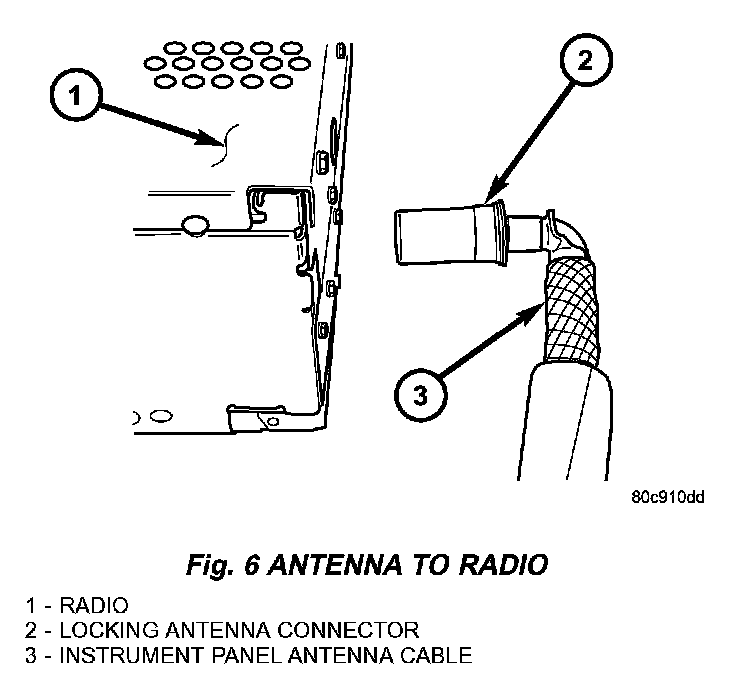

Fig.6 Antenna To Radio:

5. Disconnect the antenna cable by pulling the locking antenna connector away from the radio (Fig.6).
6. Remove radio from vehicle.

INSTALLATION
1. Place radio near instrument panel opening.
2. Connect wiring and antenna lead to radio and slide into place.
3. Install four radio mounting screws.
4. Install instrument panel center trim bezel.
5. Connect the battery negative cable.
