P2008

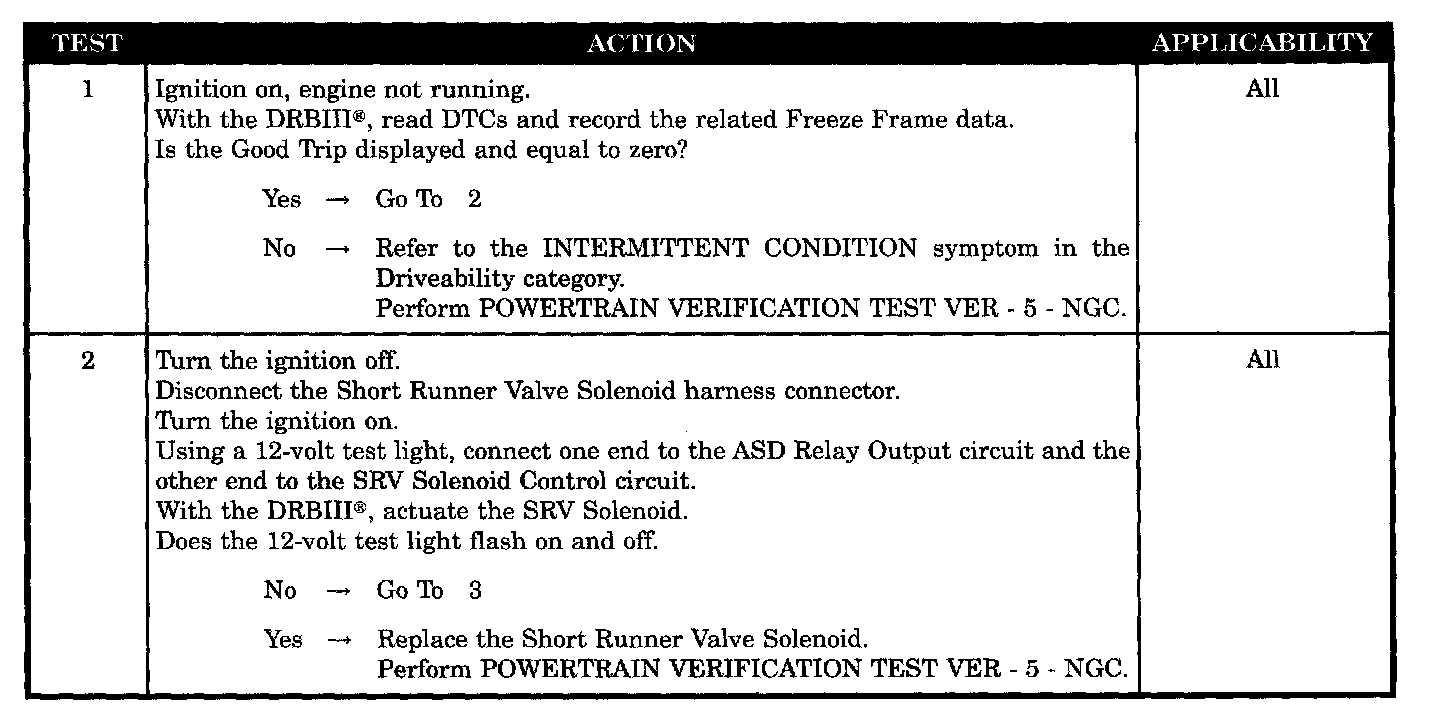

Test 1 - 2:

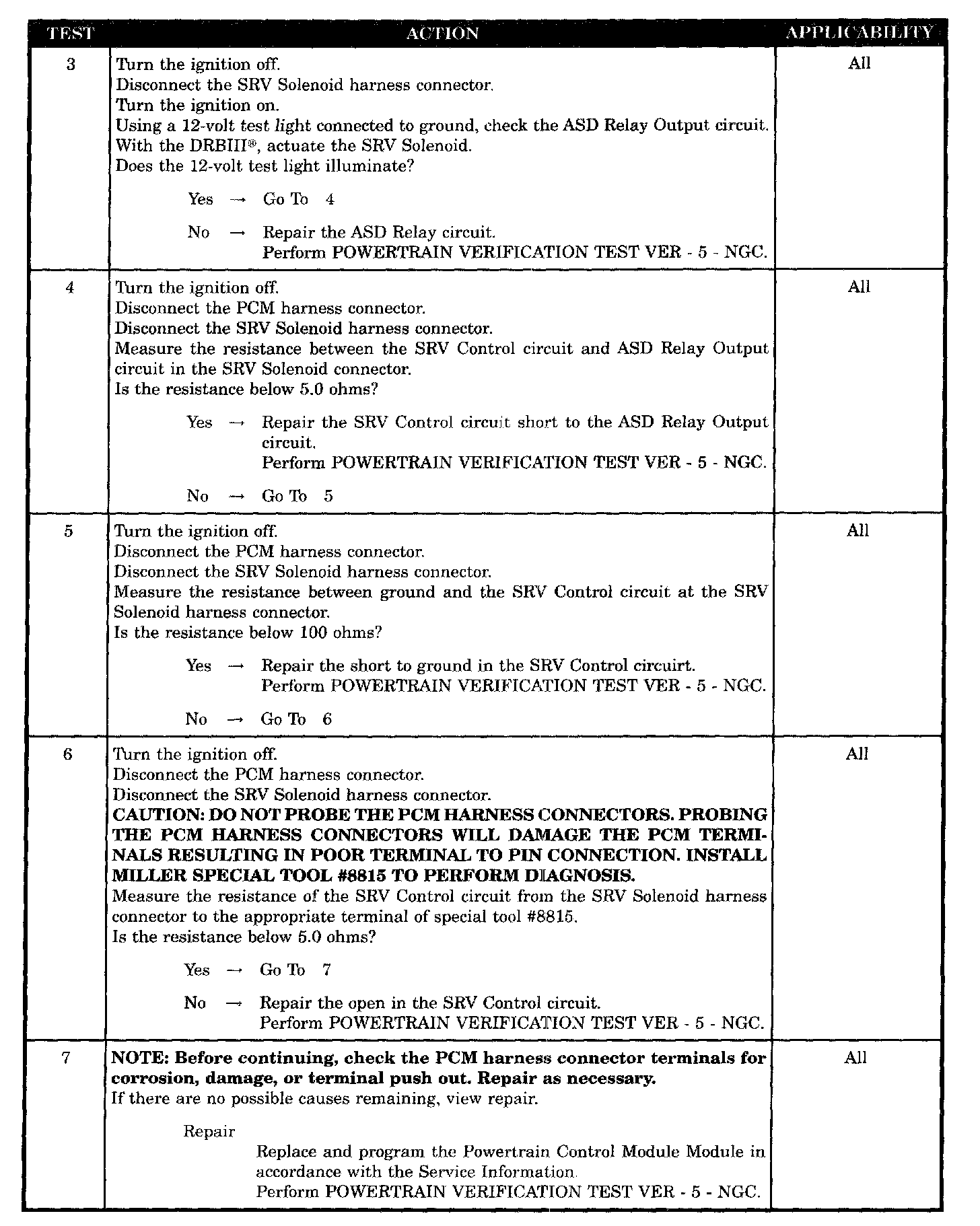

Test 3 - 7:

SYMPTOM
P2008-SHORT RUNNER SOLENOID CIRCUIT

WHEN MONITORED
The Engine running. ASD Relay is energized.

SET CONDITION
The PCM senses the SRV is not at the desired state. One Trip Fault.

POSSIBLE CAUSES
- Good trip equal to zero
- Short runner valve solenoid operation
- ASD relay output circuit
- SRV control circuit shorted to ASD relay output circuit
- SRV control circuit shorted to ground
- SRV control circuit open
- PCM
