P1797

Symptom:
P1797-MANUAL SHIFT OVERHEAT

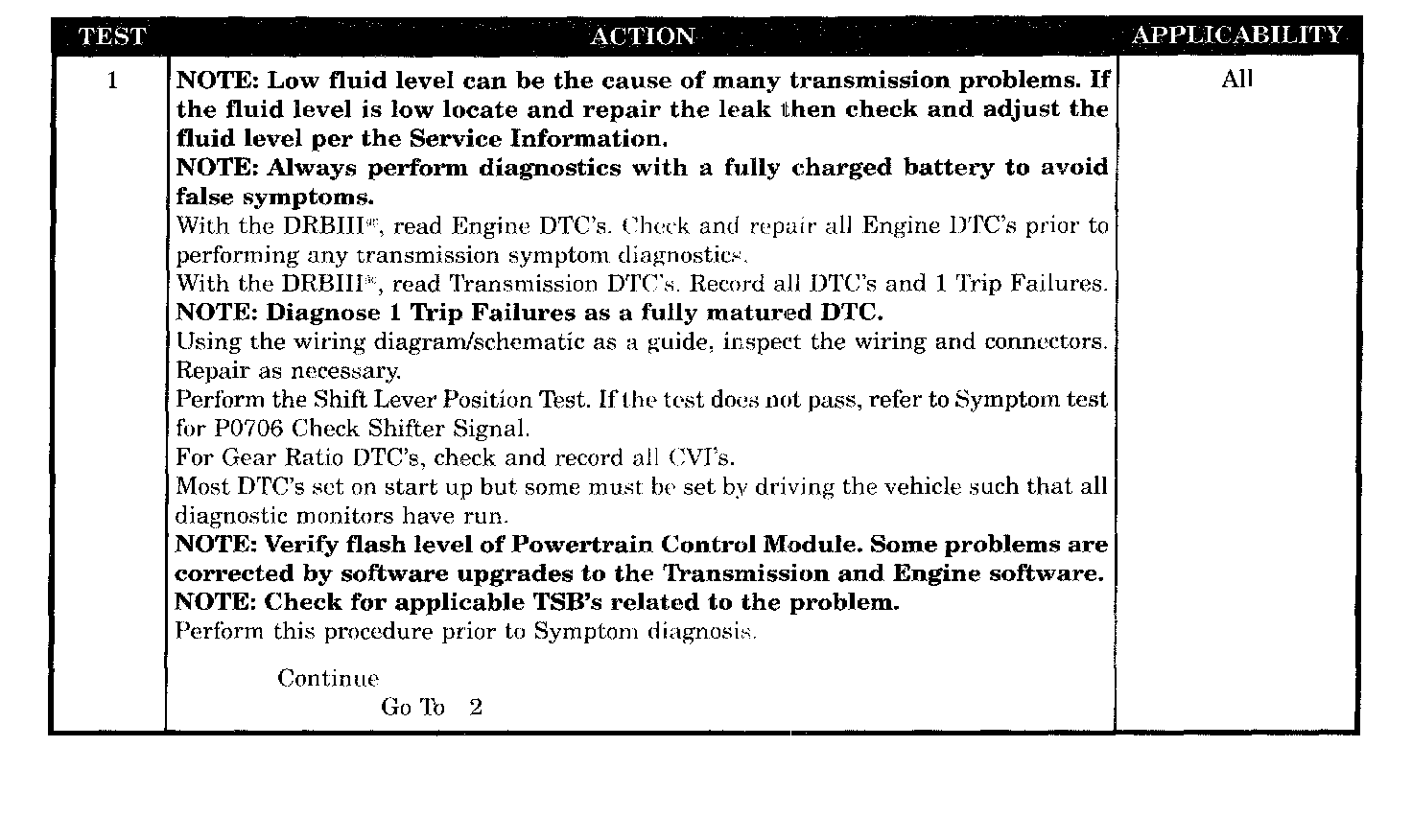

Test 1:

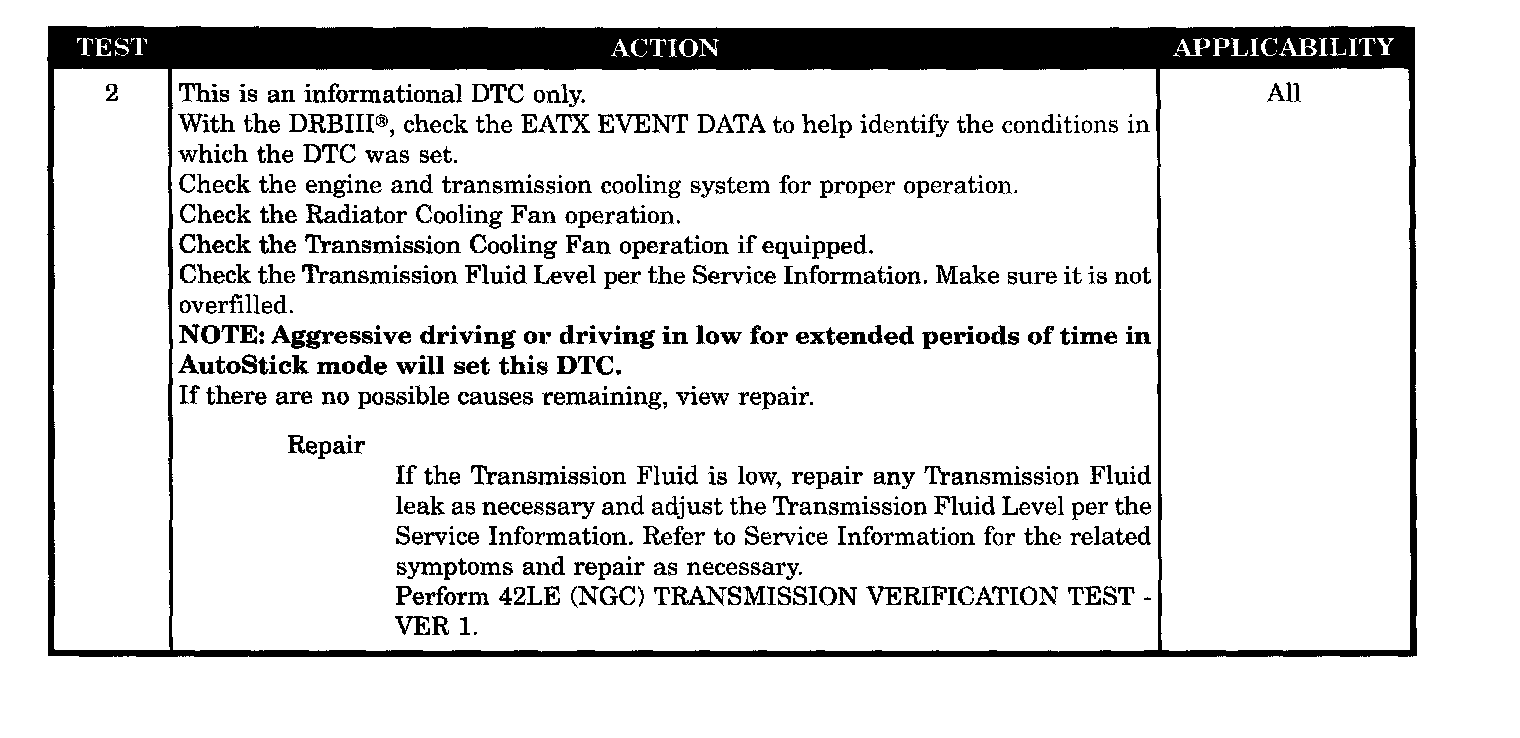

Test 2:

When Monitored:
Whenever the engine is running and transmission is in the Autos tick mode.

Set Condition:
If the Engine Temperature exceeds 123°C or 255°F. or the Transmission Temperature exceeds 135� C or 275c F while in AutoStick'-3 mode. Note: Aggressive driving or driving in low for extended periods of tine in Autos tick mode wild set this DTC.

POSSIBLE CAUSES
- MANUAL SHIFT OVERHEAT
