No Response From SDAR (Satellite Receiver)

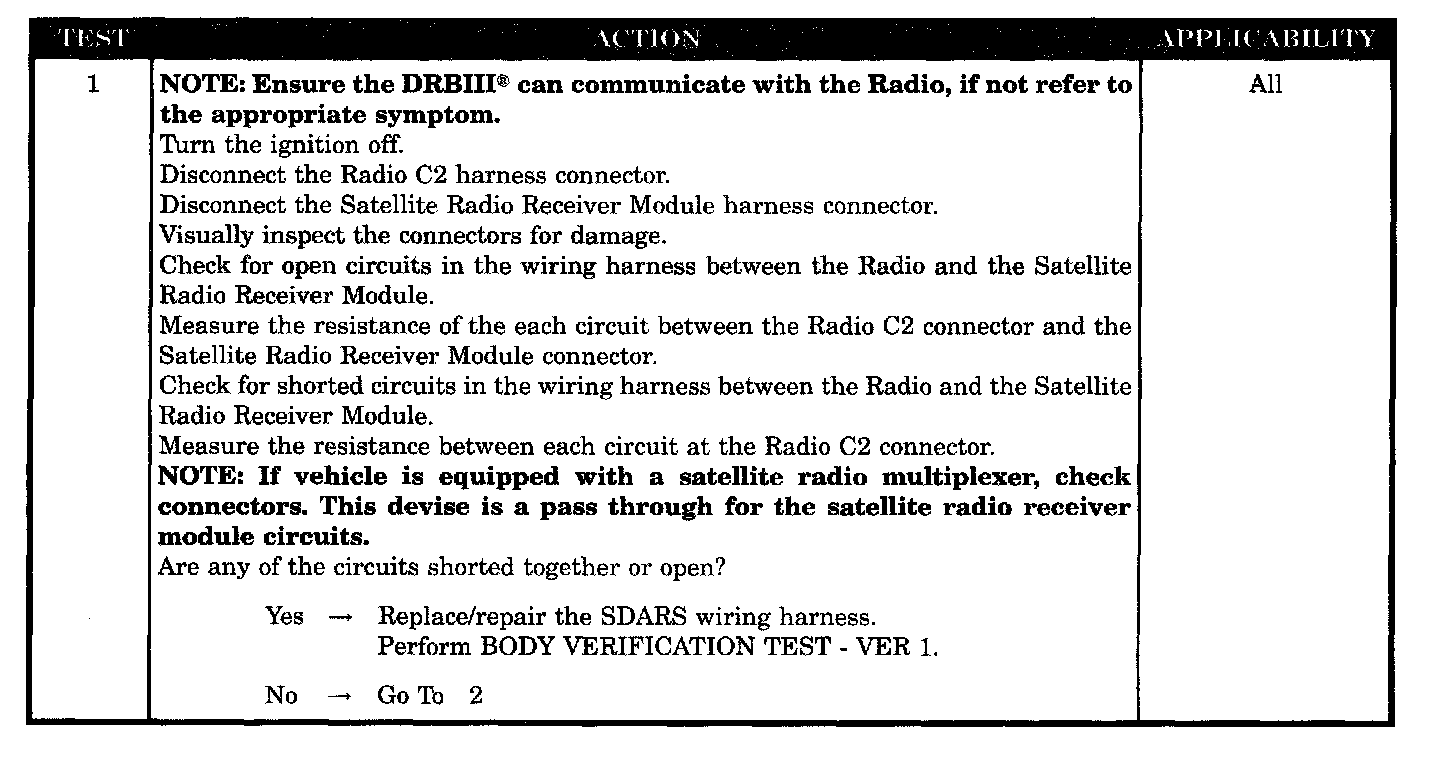

Test 1:

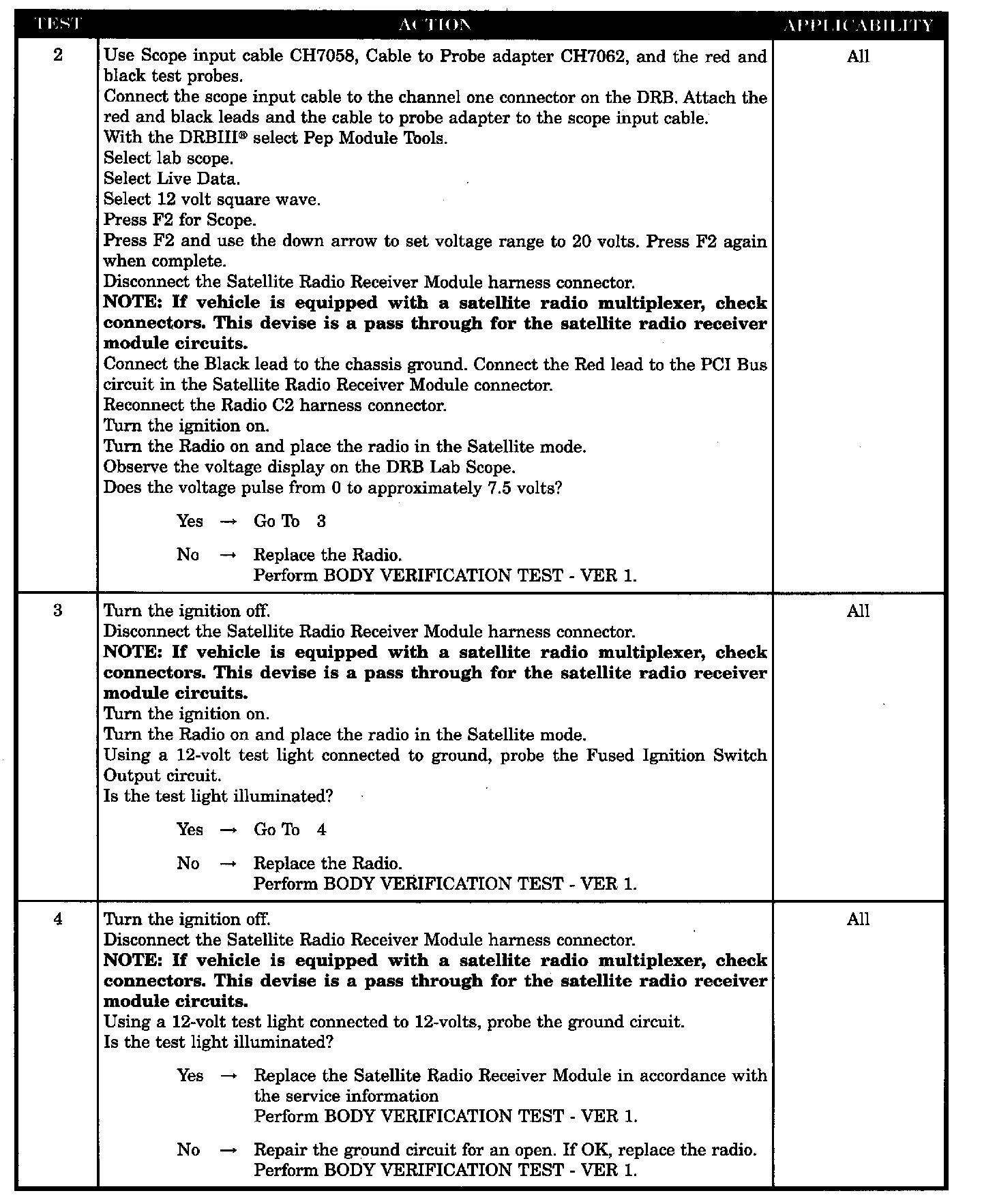

Test 2 - 4:

SYMPTOM
NO RESPONSE FROM SATELLITE RADIO RECEIVER MODULE

POSSIBLE CAUSES
- SDARS wiring harness
- PCI BUS circuit open
- Fused ignition switch output circuit open
- Radio ground CKT open
- Satellite radio receiver module
