No J1850 (PCI BUS) Communication (No PCI Transmission)

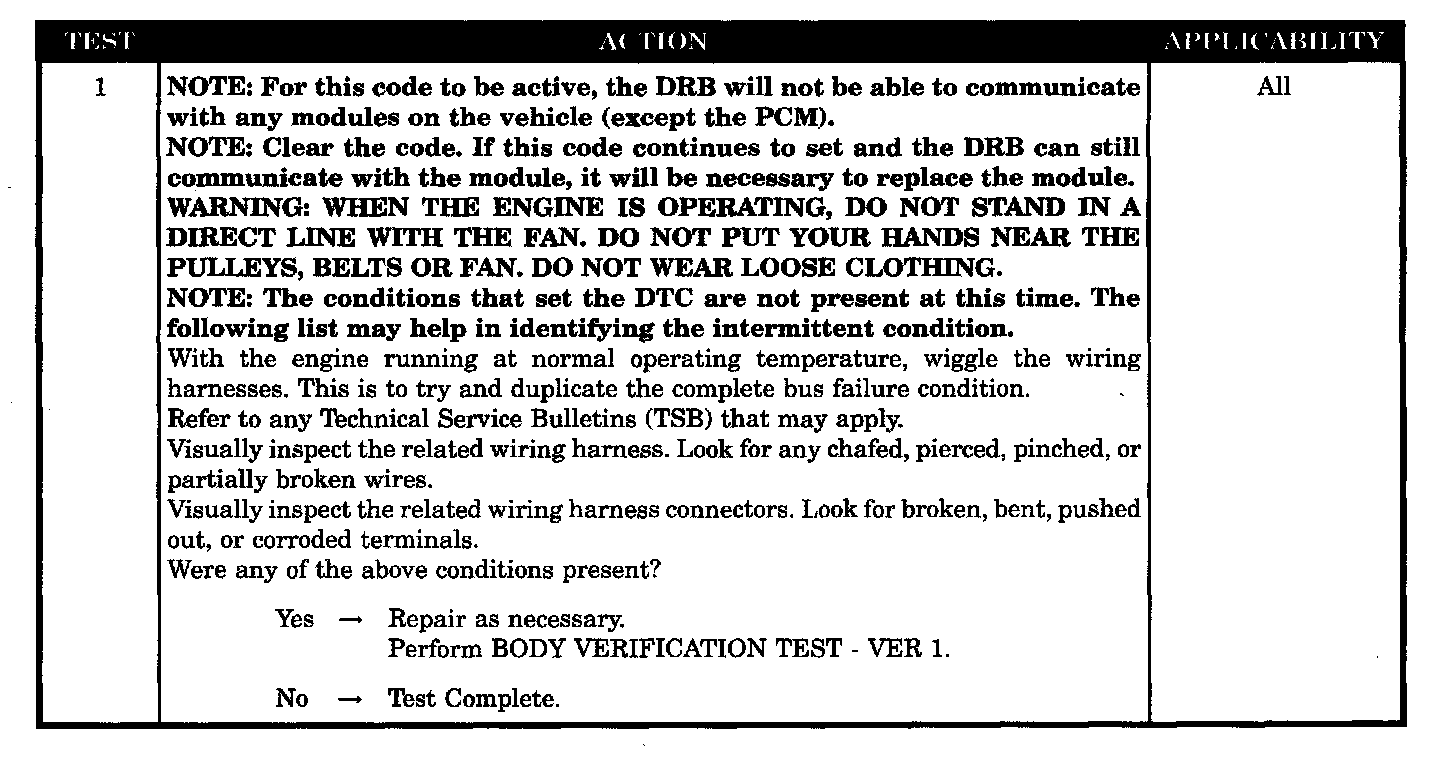

Test 1:

SYMPTOM
NO J1850 (PCI BUS) COMMUNICATION (NO PCI TRANSMISSION)

WHEN MONITORED
With the ignition on.

SET CONDITION
Anytime the module detects a communication problem on the PCI Bus circuit.

POSSIBLE CAUSES
- Intermittent condition
