Bus Low - SDARS

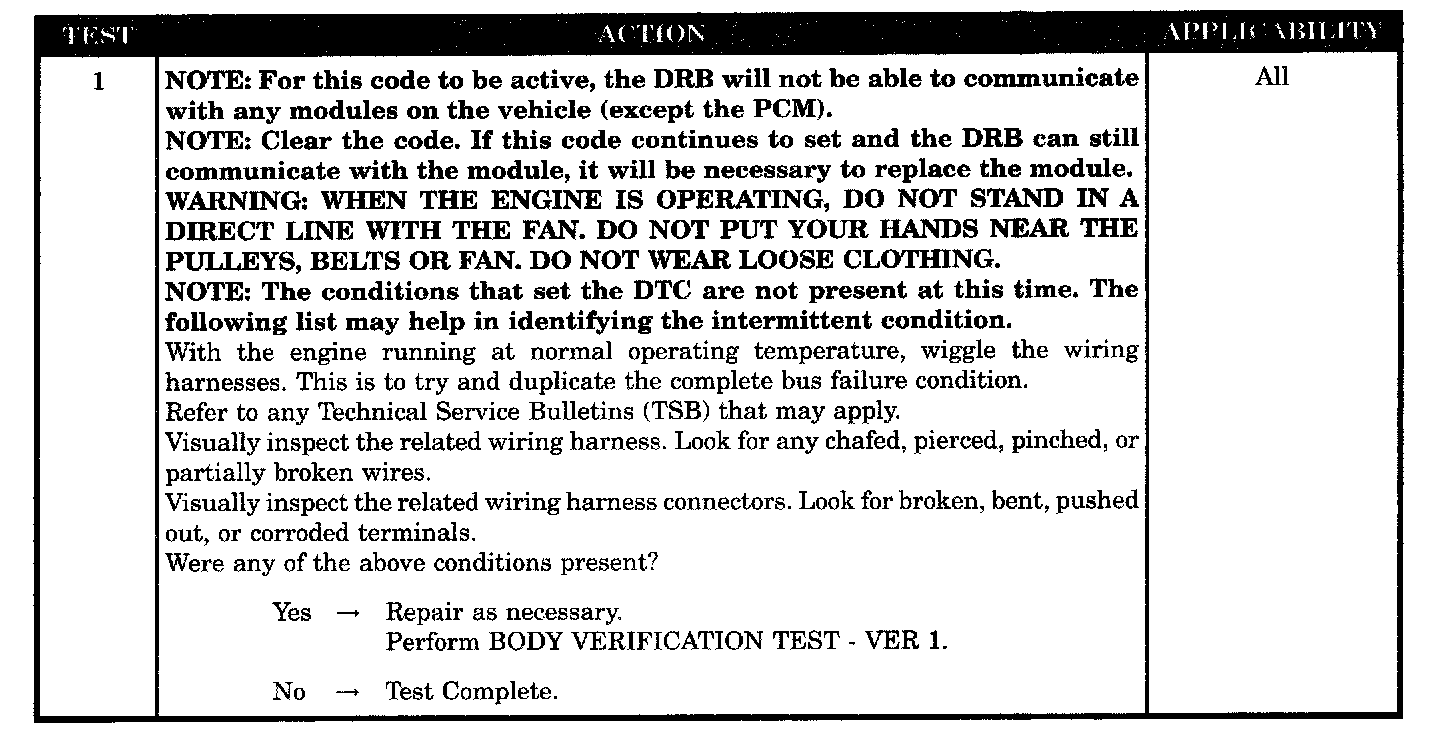

Test 1:

SYMPTOM
BUS LOW - SDARS

WHEN MONITORED
With the ignition in the run position, and the IOD fuse installed.

SET CONDITION
Anytime the module detects a short to ground on the PCI Bus circuit.

POSSIBLE CAUSES
- Intermittent condition
