Cluster Lamp Failure

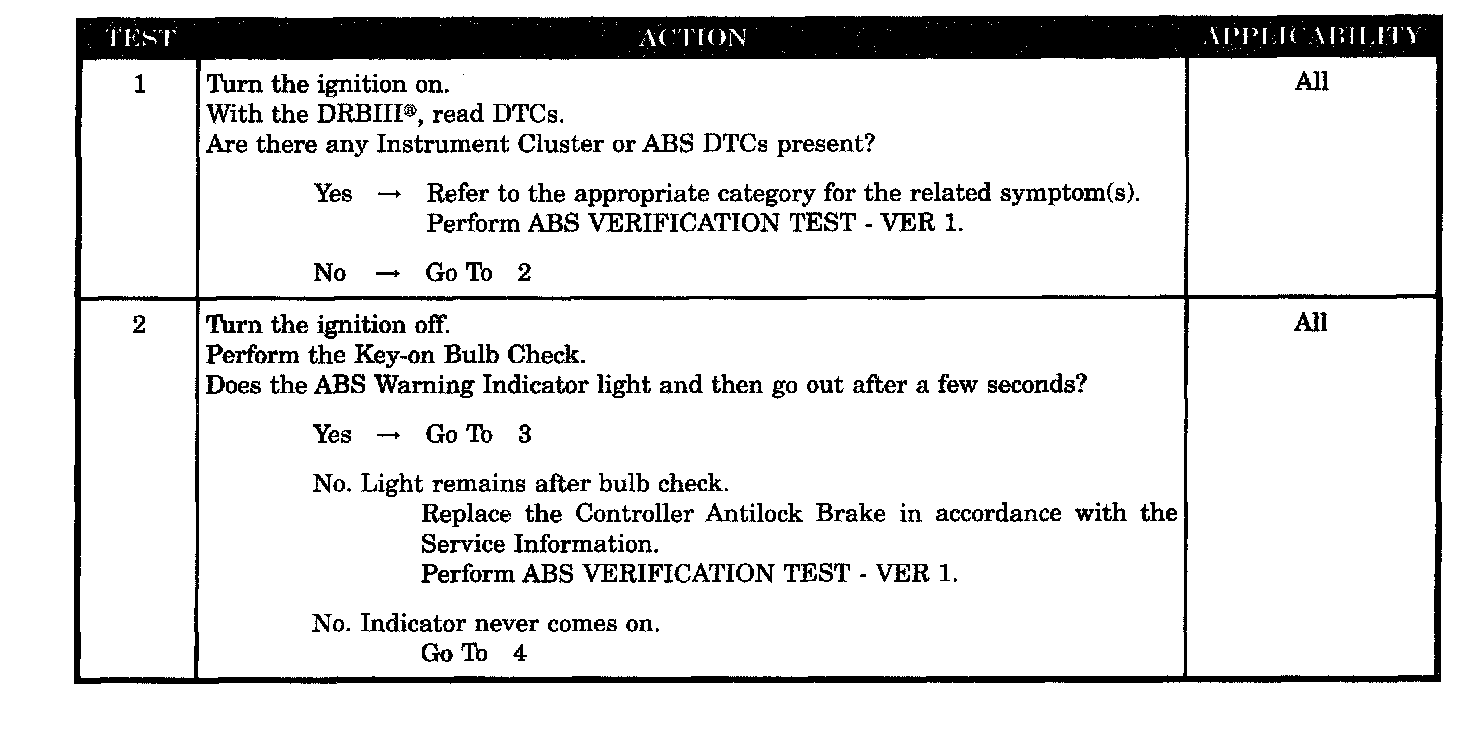

Test 1-2:

Test 3-4:

SYMPTOM
CLUSTER LAMP FAILURE

WHEN MONITORED
Key ON. After Key-ON bulb check

SET CONDITION
When the instrument cluster informs the CAB that the cluster cannot turn on the ABS Lamp.

POSSIBLE CAUSES
- INSTRUMENT CLUSTER OR ABS DTC PRESENT
- INSTRUMENT CLUSTER
- CAB-NO DTC SIGNAL TO THE INSTRUMENT CLUSTER
- CAB-PERMANENT FAULT SIGNAL
- CAB-NO KEY-ON BULB CHECK SIGNAL
