Description and Operation
>>
Manual Transaxle Controls
Manual Transaxle Controls

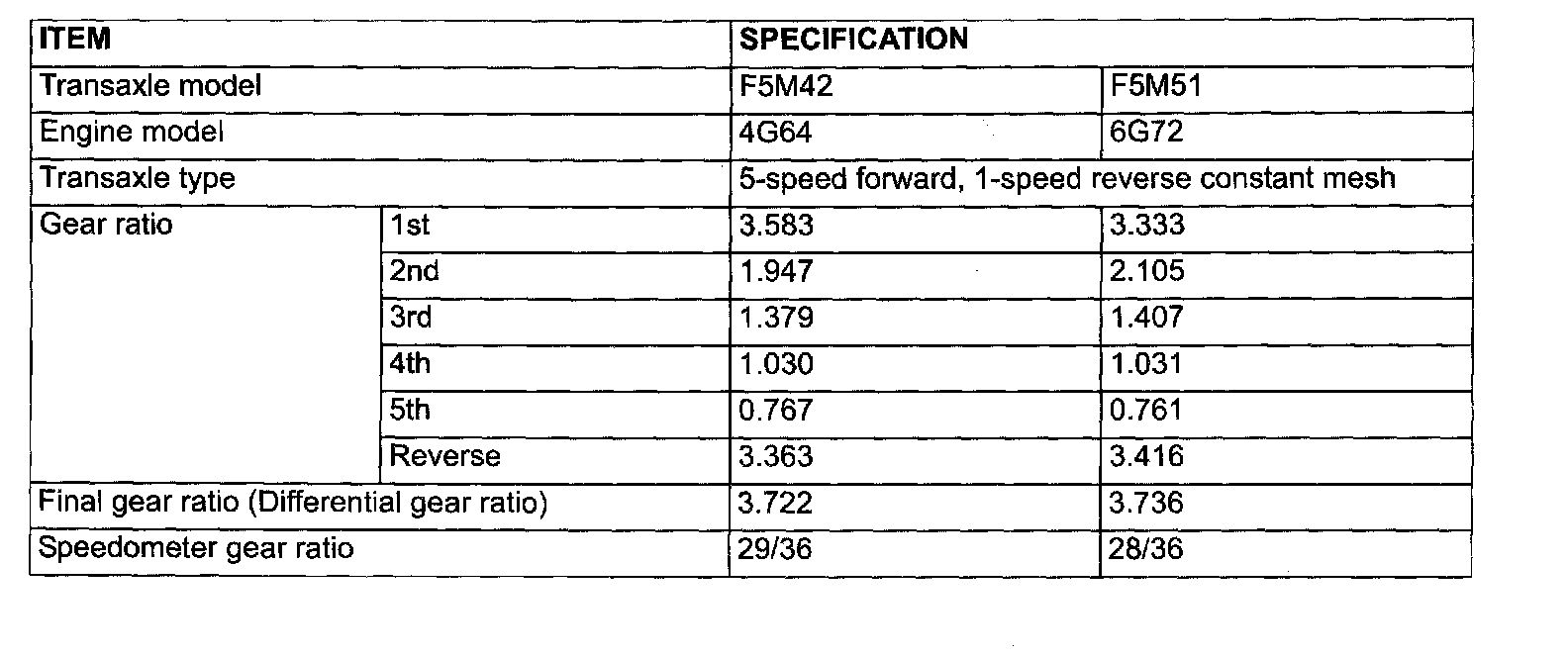

GENERAL DESCRIPTION

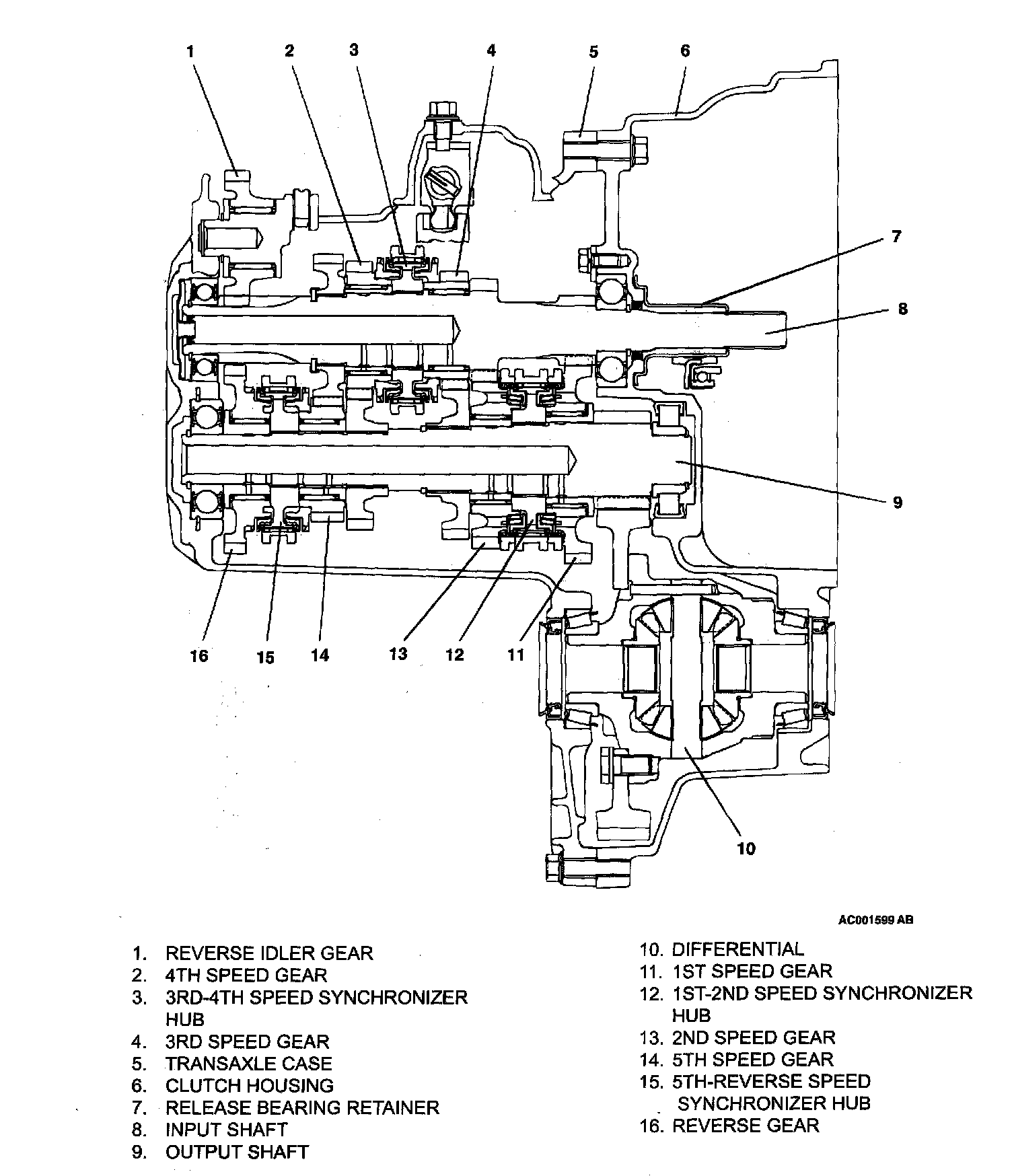

SECTIONAL VIEW
- 2.4L

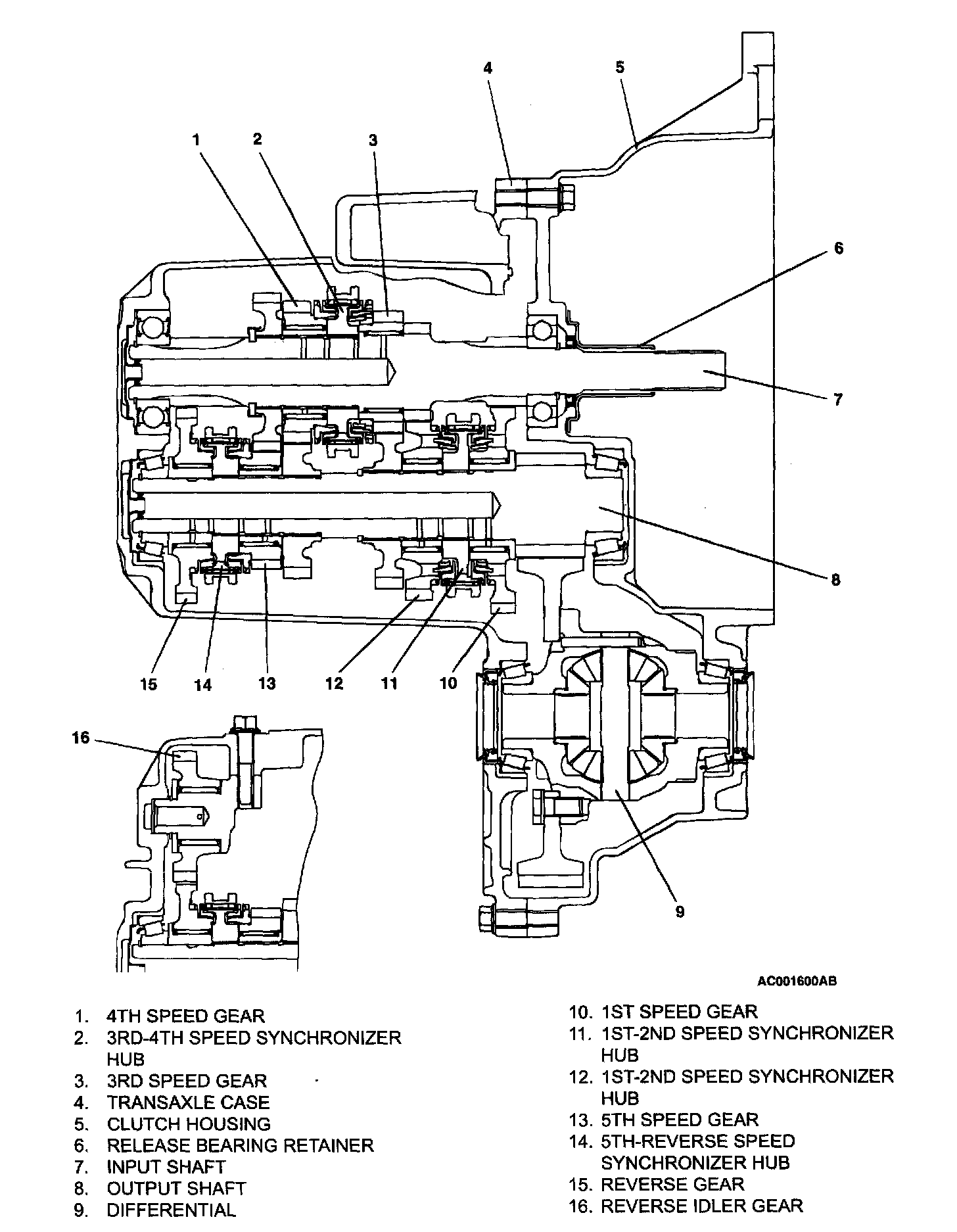

SECTIONAL VIEW
- 3.0L
