Transmission Mount: Service and Repair

TRANSAXLE MOUNTING





REMOVAL AND INSTALLATION

CAUTION: Mounting locations marked by * should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

INSTALLATION SERVICE POINT
>>A<< TRANSAXLE MOUNT STOPPER INSTALLATION

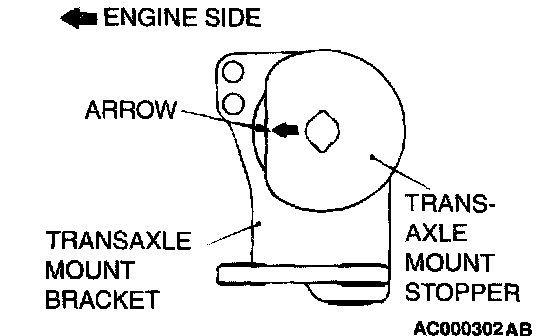

Clamp the transaxle mount stopper so that the arrow points in the direction as shown in the diagram.
