Suspension: Service and Repair

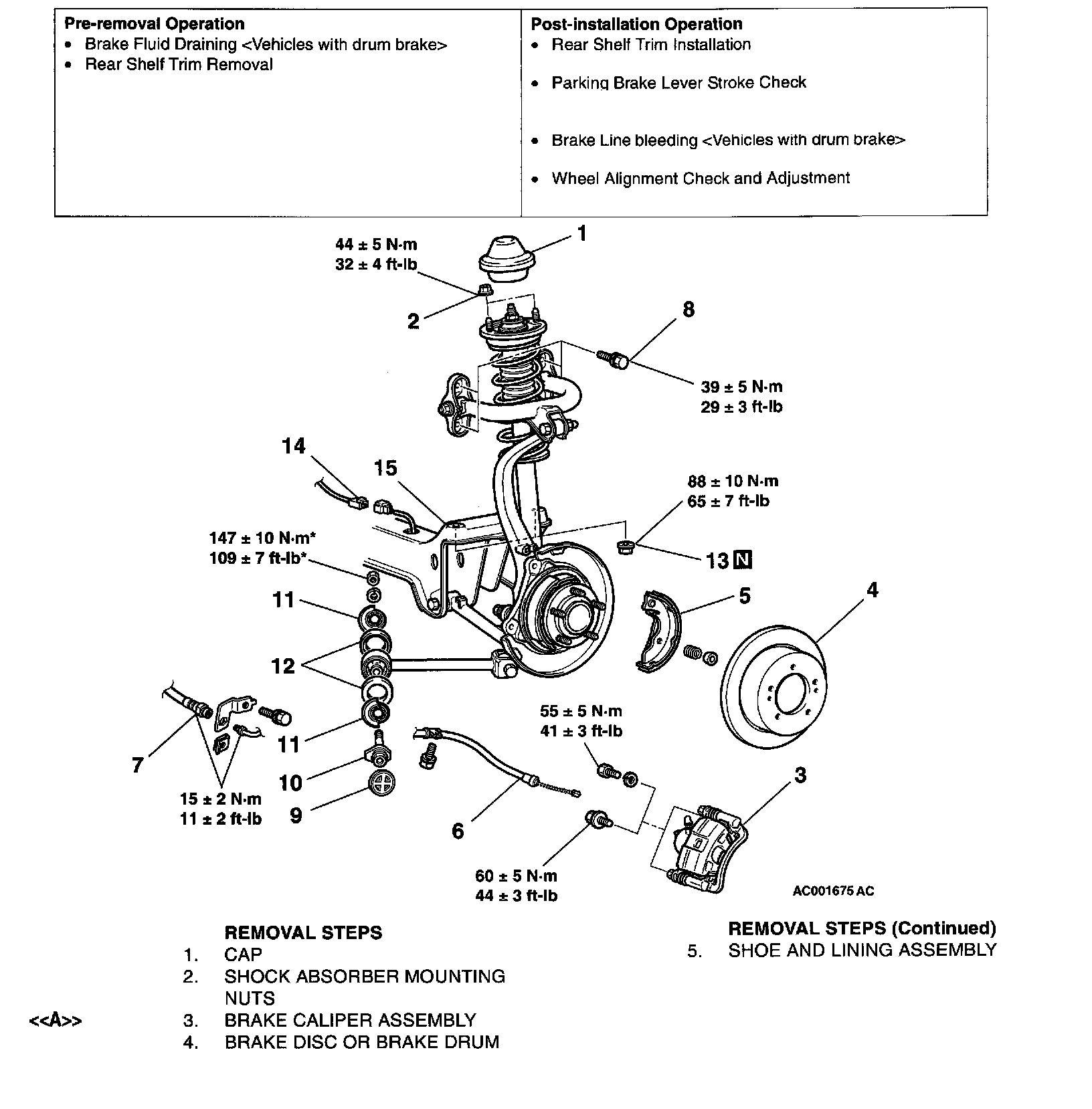

REAR SUSPENSION ASSEMBLY





REMOVAL AND INSTALLATION

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

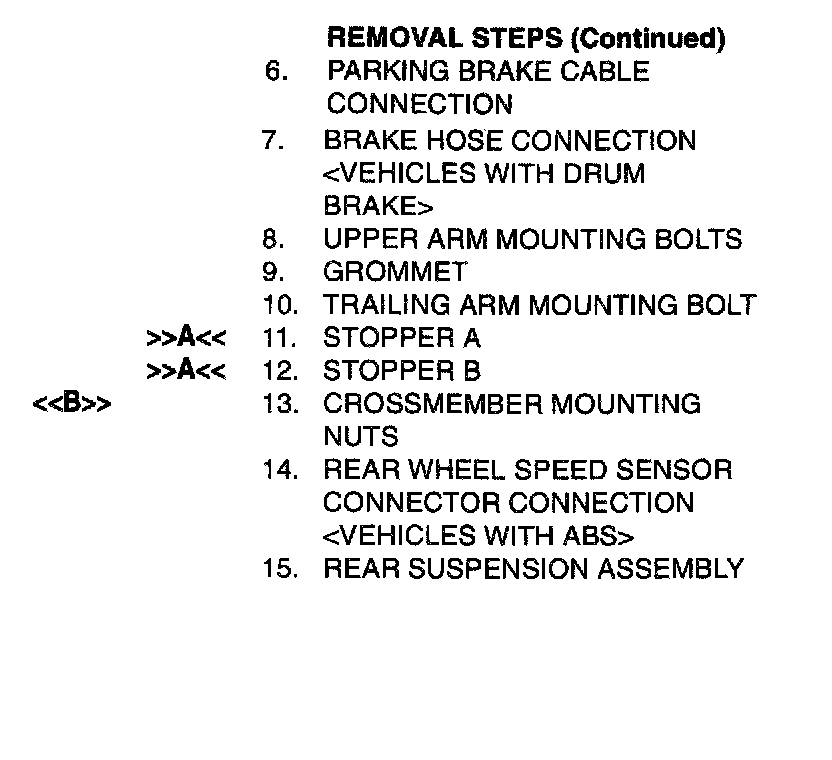

REMOVAL SERVICE POINTS
<> BRAKE CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with a wire, so that it does not fall.

<> CROSSMEMBER MOUNTING NUT REMOVAL

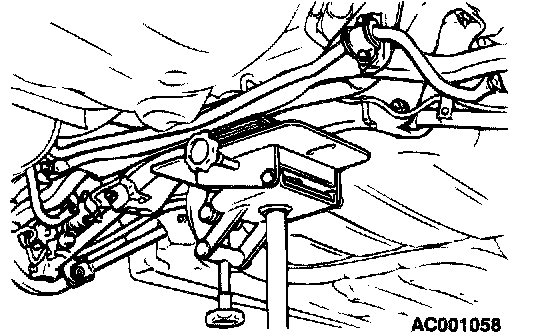

Support the crossmember with a garage jack or transmission jack to remove the crossmember mounting nut.

INSTALLATION SERVICE POINT
>>A<< STOPPER B/STOPPER A INSTALLATION

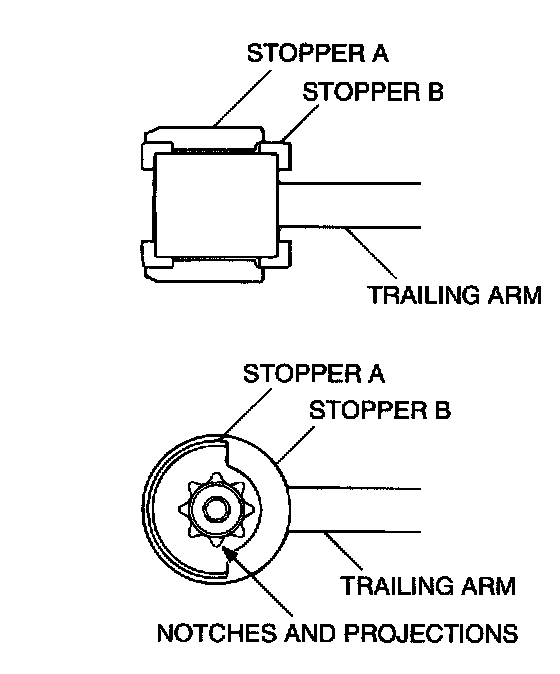

1. Install stopper B in the shown direction.
2. Install stopper A in the shown direction while checking that the notches on stopper A are engaged with the projections on the trailing arm bushing.

INSPECTION
Check crossmember for cracks or other damage.
