Upper Control Arm

UPPER ARM ASSEMBLY

%%�4:

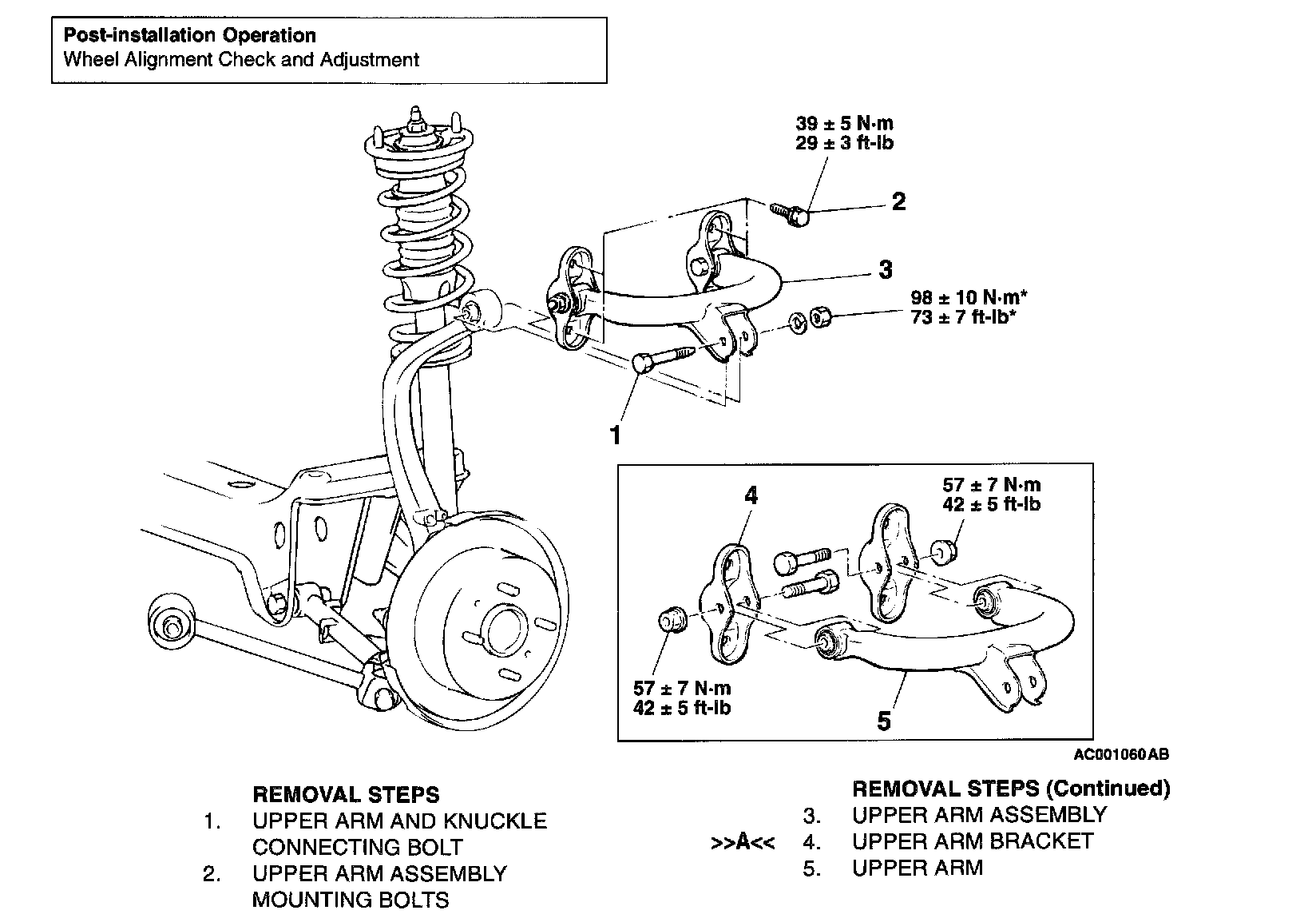

REMOVAL AND INSTALLATION

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

INSTALLATION SERVICE POINT
>>A<< UPPER ARM BRACKET INSTALLATION

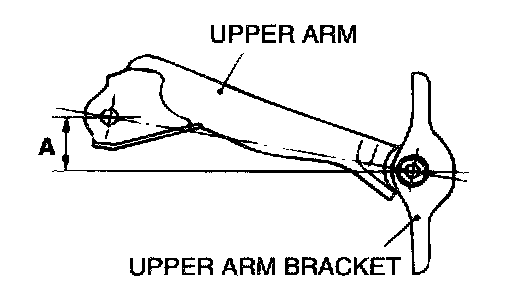

Install the upper arm bracket so that the dimension shown in the illustration is at the standard value.
Standard value (A): 37.2 ± 2 mm (1.46 ± 0.08 inches)

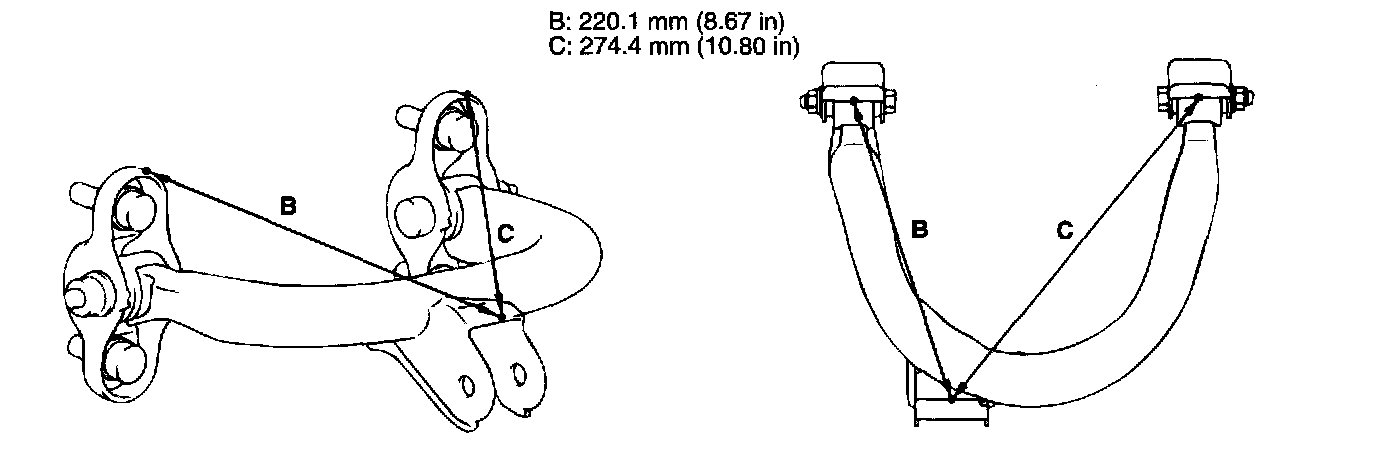

NOTE: Refer to distances B and C shown in the illustration to check the installation angle of the upper arm bracket.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the upper arm for bends or damage.
- Check all bolts for condition and straightness.
