Tie Rod End Ball Joint Breakaway

TIE ROD END BALL JOINT BREAKAWAY

TORQUE CHECK

Required Special Tools:
- MB990326: Preload Socket
- MB991113 or MB990635: Steering Linkage Puller

CAUTION:
- Use special tool MB991113 or MB990635 to loosen the nut from the ball joint instead of removing it.

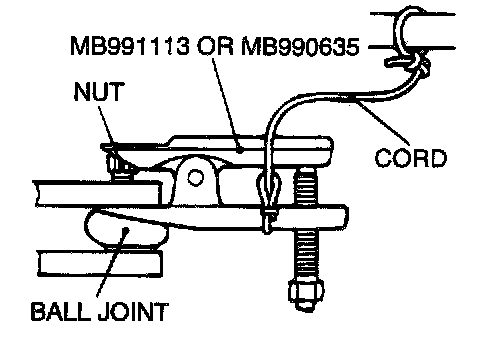

- Hang special tool MB991113 or MB990635 with ropes to prevent it from falling.





1. Use special tool MB991113 or MB990635 to disconnect the ball joint.





2. Move the ball joint stud several times and install the nut on the stud. Measure the ball joint breakaway torque with special tool MB990326.
Standard value: 0.5 - 2.5 Nm (4.4 - 22.1 inch lbs.)
3. If the breakaway torque exceeds the standard value, replace the tie rod end.
4. If the breakaway torque is under the standard value, check the ball joint for end play or ratcheting. If no end play or ratcheting, the ball joint can be re-used.
5. Tighten the nut to the specified torque and install a new cotter pin.
Tightening torque: 29 ± 4 Nm (21 ± 4 ft. lbs.)
