Inspection Procedure 8: Squeaking Noise
INSPECTION PROCEDURE 8: Squeaking NoiseDIAGNOSIS
STEP 1. Check for interference of the wheel and vehicle body. If interfering, adjust the steering angle.
1. Place the front wheel on a turning radius gauge and measure the steering angle.

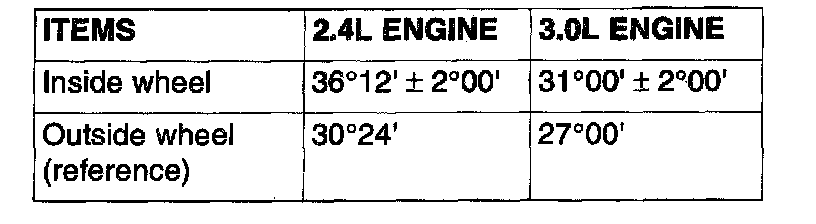

Standard Value
2. If the steering angle is not within the standard value, adjust the toe-in.
Standard value:

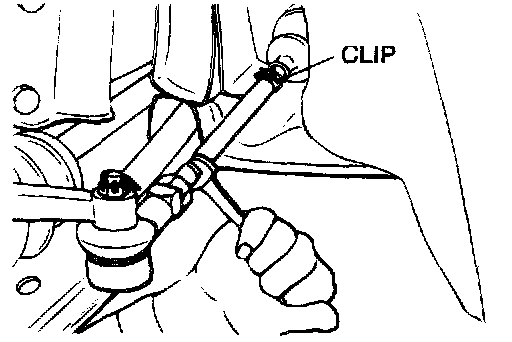

3. Adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions).
NOTE: The toe will move out as the left tumbuckle is fumed toward the front of the vehicle and the right tumbuckle is turned toward the rear of the vehicle.
Q: Is the steering angle normal?
YES: Go to Step 2.
NO: Adjust the steering angle. Then go to Step 3.
STEP 2. Check the steering gear box for damage.
Q: Is there damage?
YES: Repair or replace the part. Then go to Step 3.
NO: Go to Step 3.
STEP 3. Check symptoms. Confirm that no noise is generated.
Q: Is there noise?
YES: Repeat to Step 1.
NO: Diagnosis is complete.
