Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Relay >> Service and Repair

Starter Relay: Service and Repair

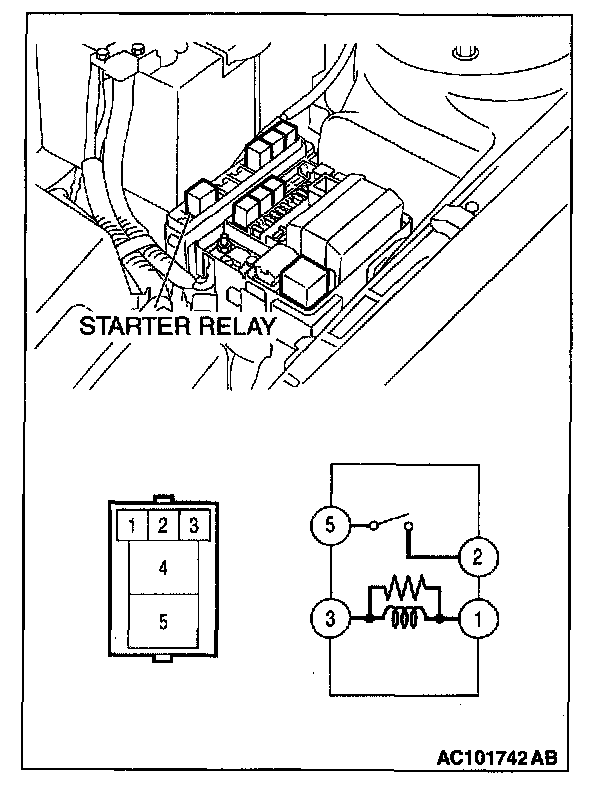

Starter Relay Check <M/T>:

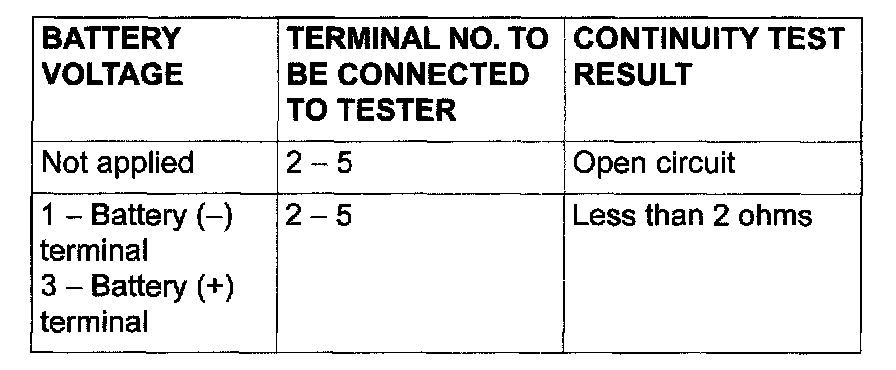

STARTER RELAY CHECK
