Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Specifications

Charging System: Specifications

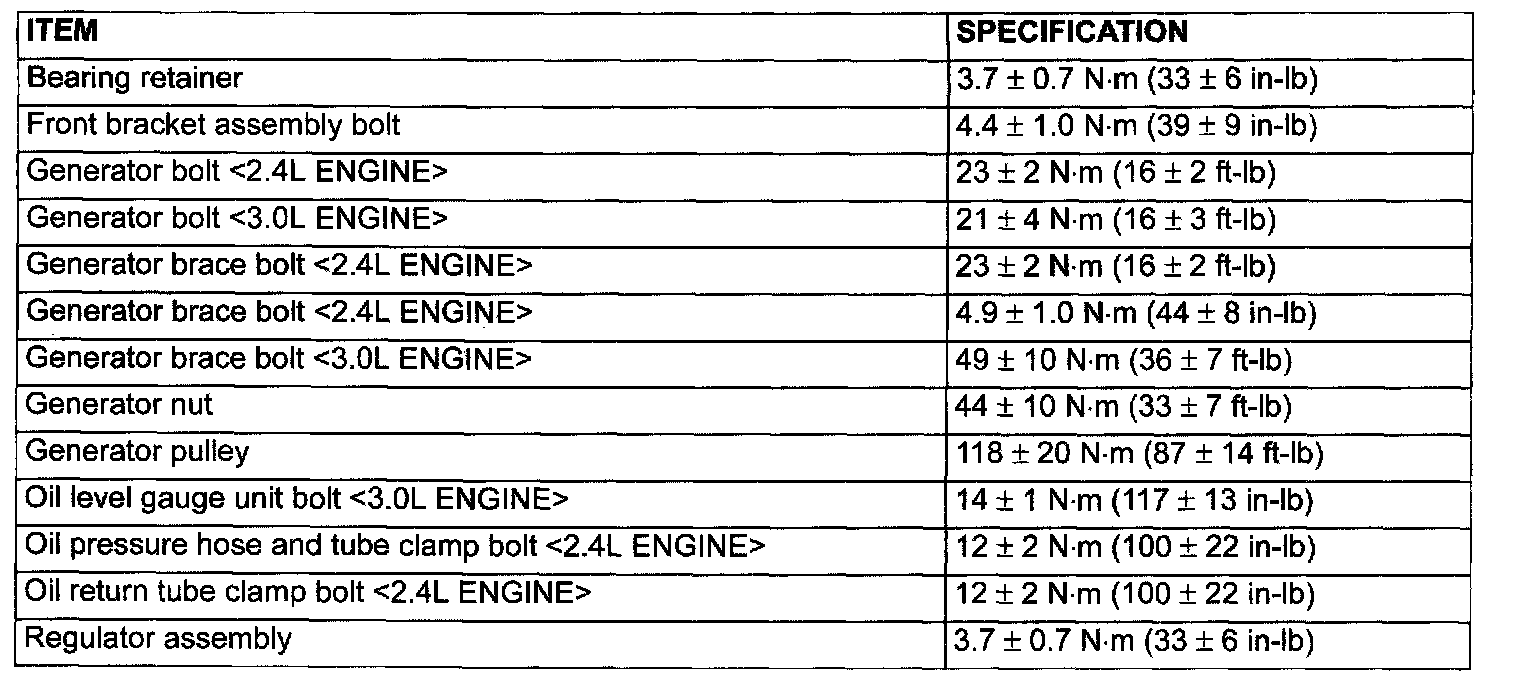

Fastener Tightening Specification:



General Specification:

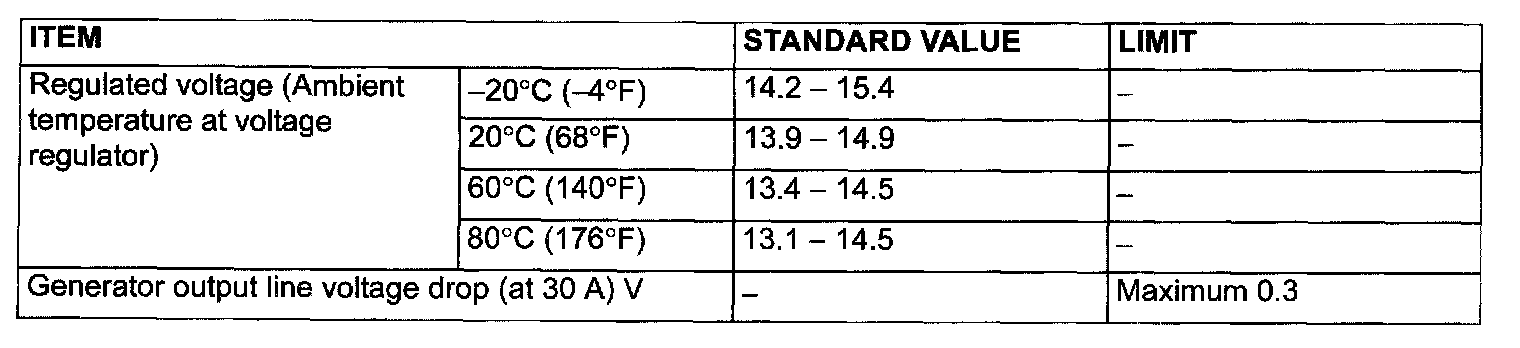

Service Specification Part 1:

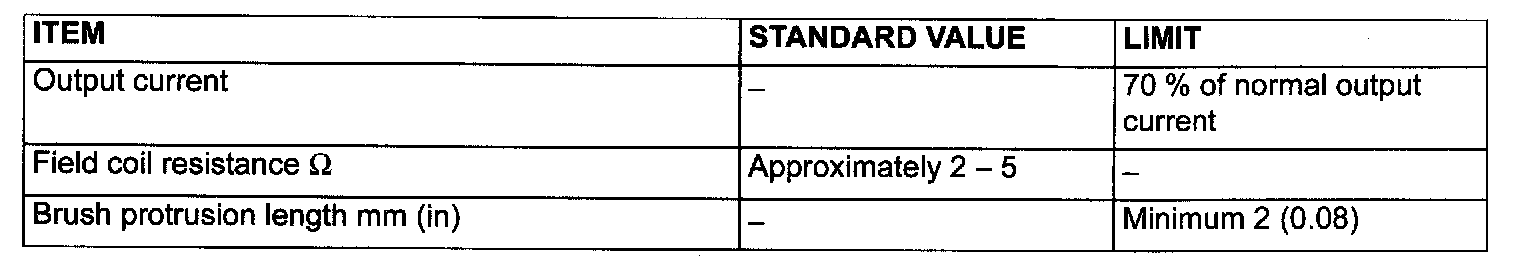

Service Specification Part 2:
