Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering >> System Specifications

System Specifications

Front Suspension

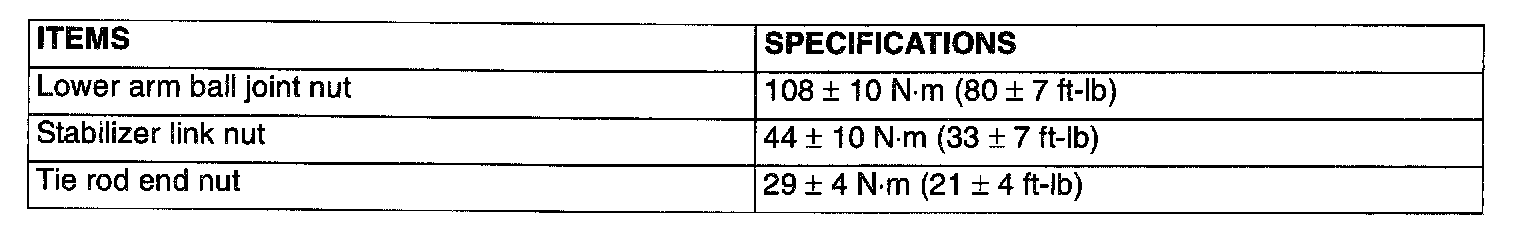

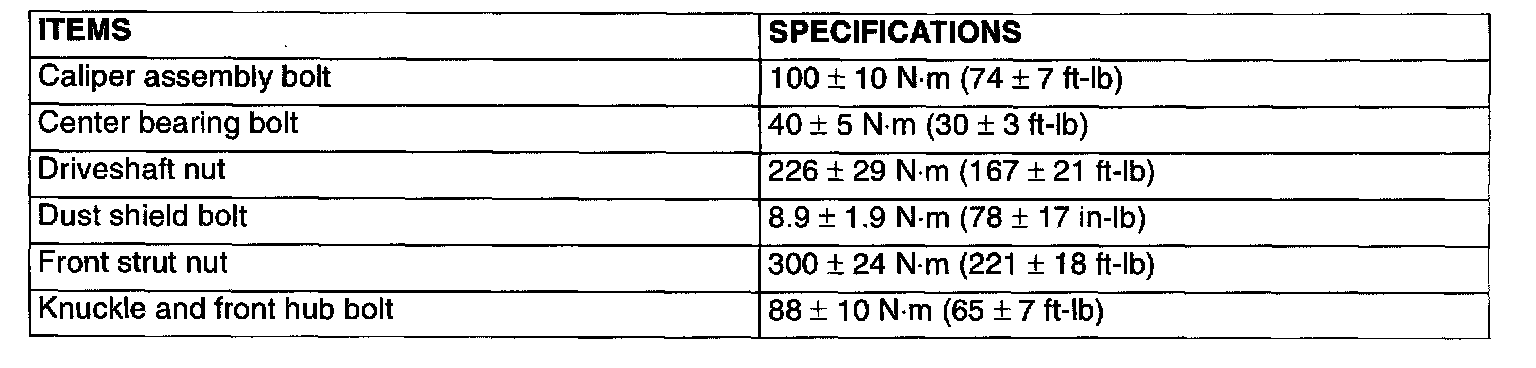

Fastener Tightening Specifications Part 1 of 2





Fastener Tightening Specifications Part 2 of 2





General Specifications

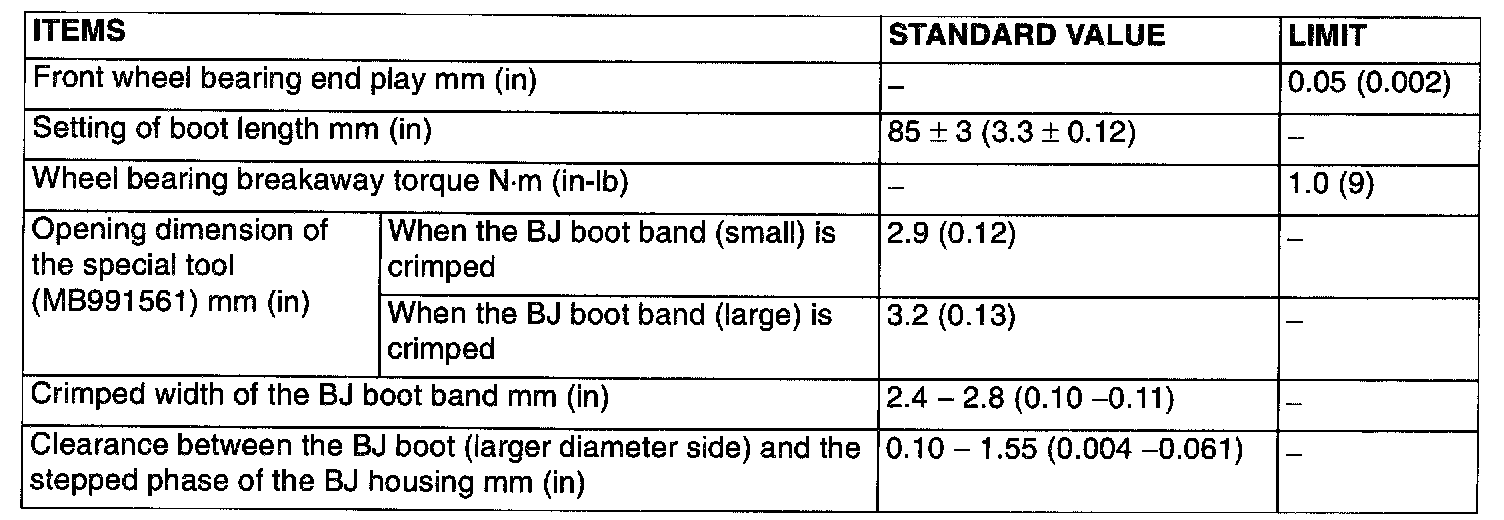

Service Specifications

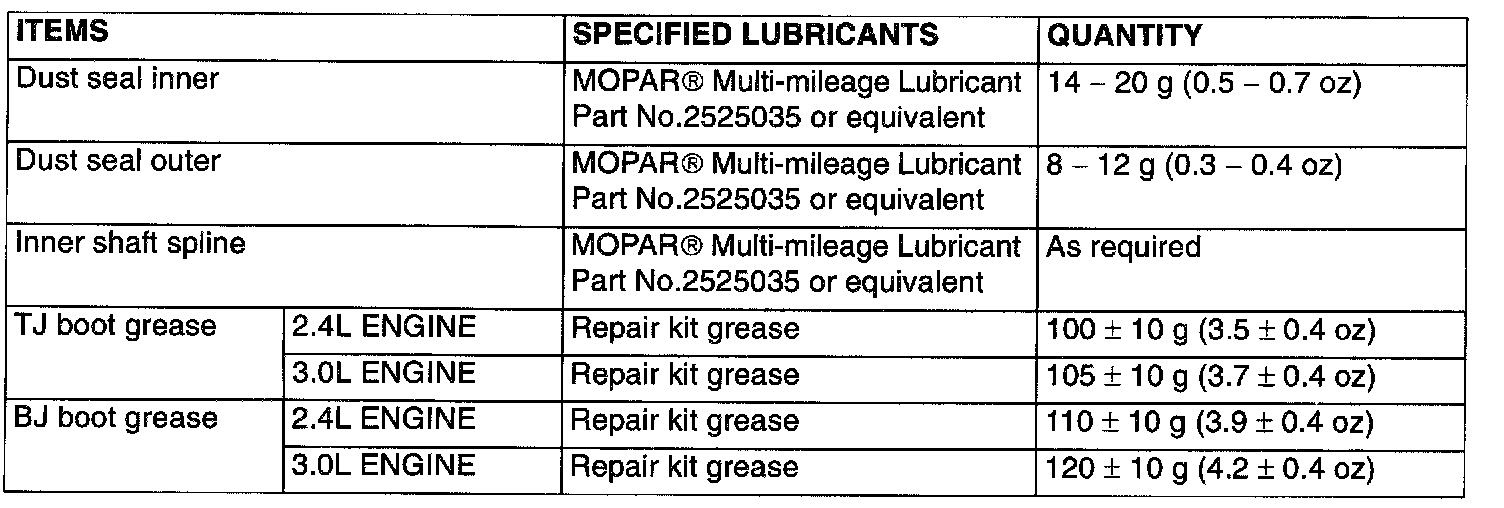

Lubricants

Rear Specifications

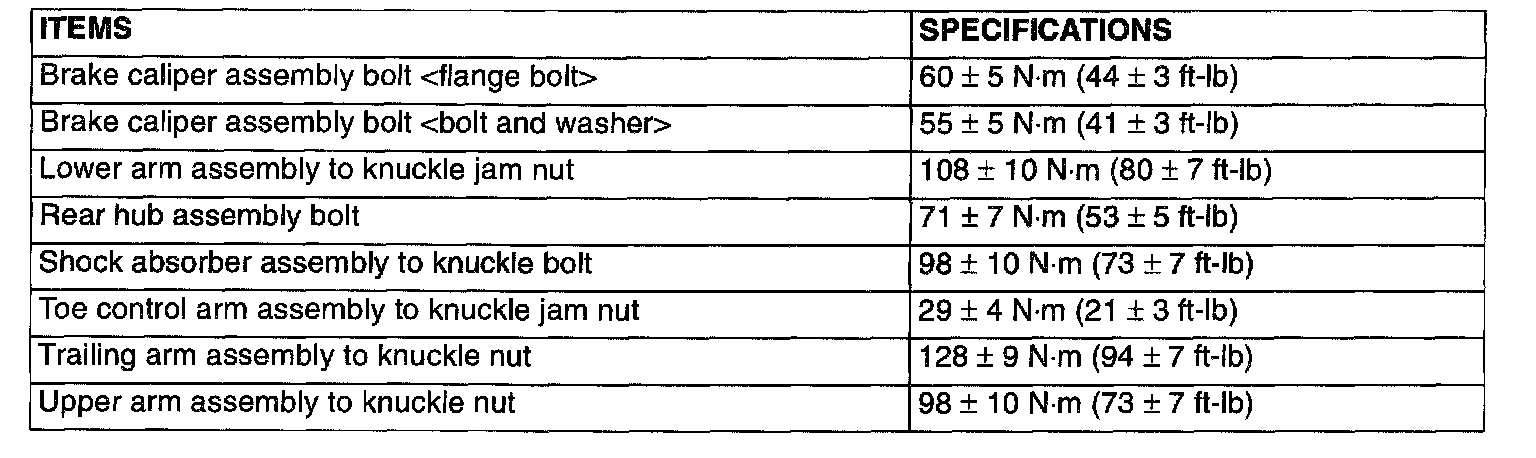

Fastener Tightening Specifications

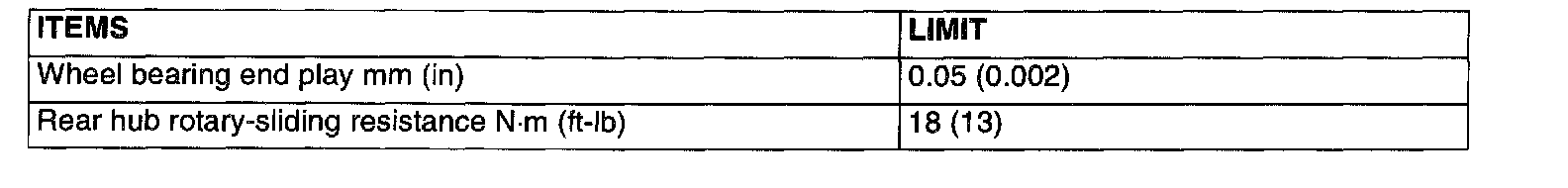

Service Specifications
