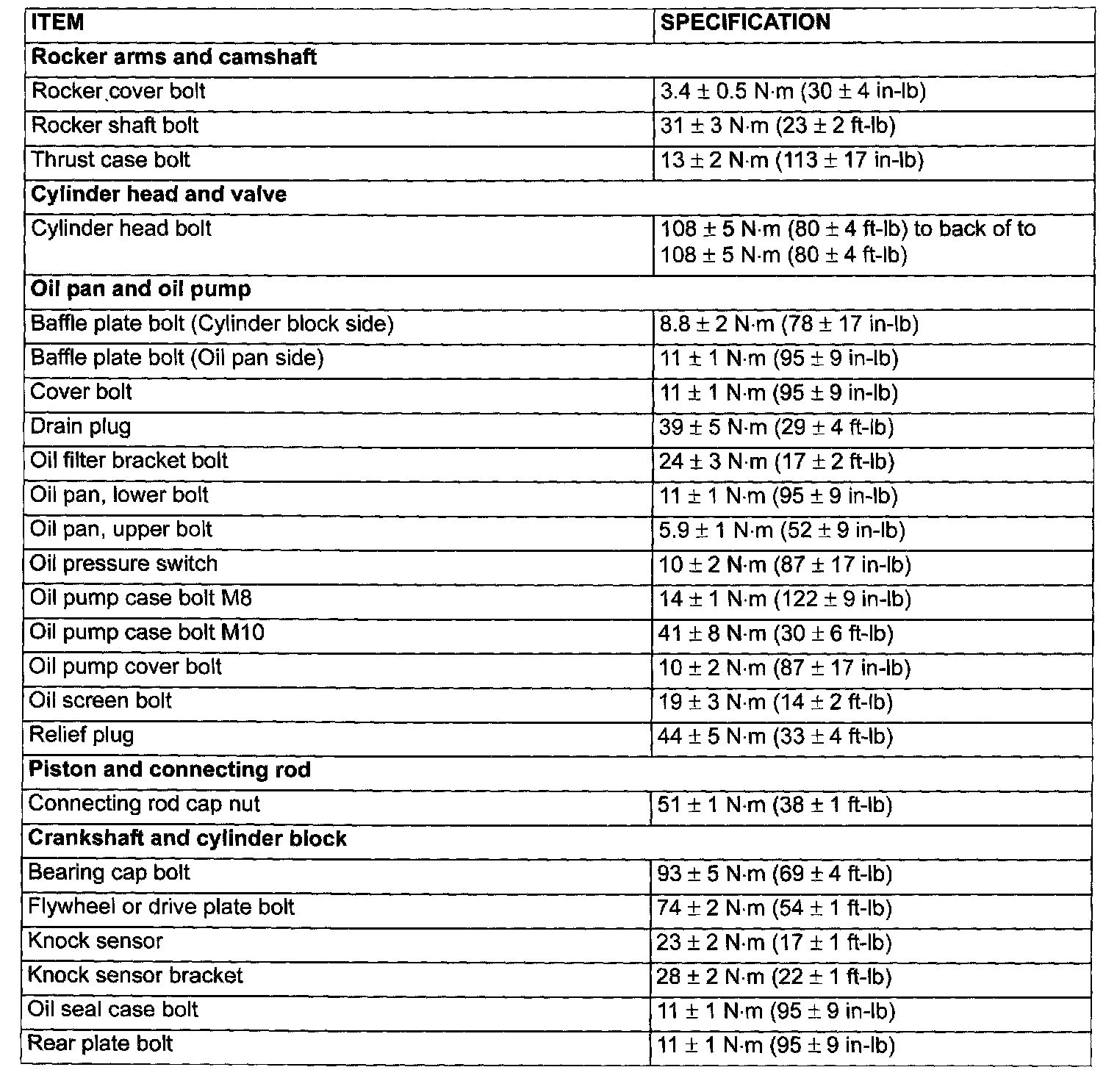

Engine Torque Specifications

FASTENER TIGHTENING SPECIFICATIONS






For Cylinder Head Tightening Sequence Service and Repair
