Windshield Wipers and Washers

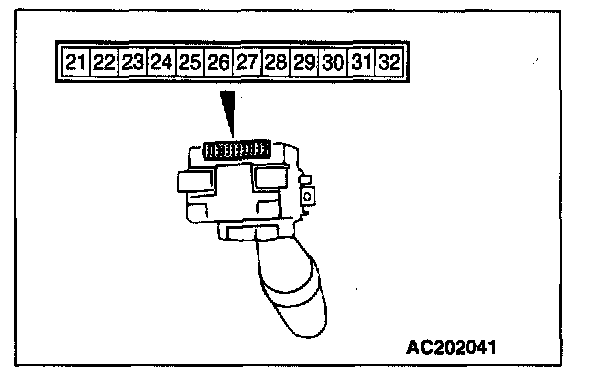

WINDSHIELD WIPER AND WINDSHIELD WASHER SWITCH CHECK
Check continuity between the switch terminals.

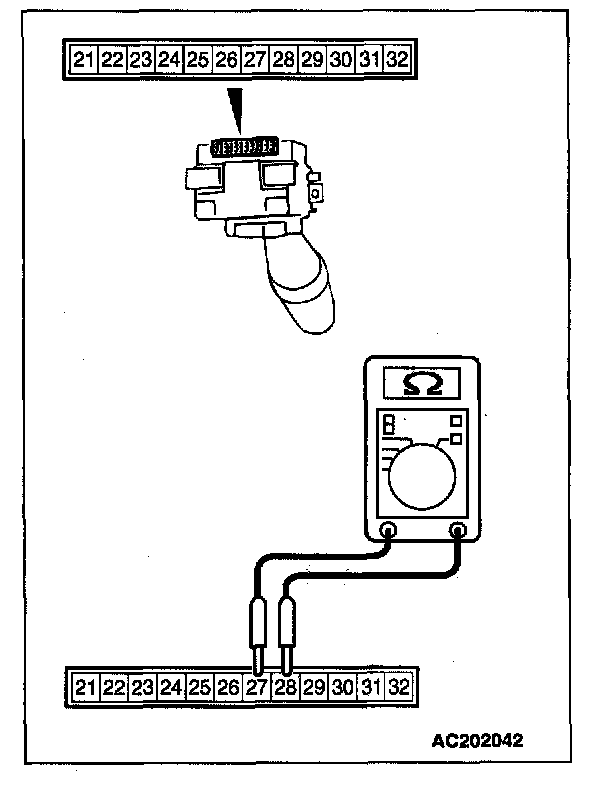

WINDSHIELD INTERMITTENT WIPER VOLUME CHECK
Check that the resistance varies between 0 and 1 kilo ohm when the windshield intermittent volume is turned from FAST to SLOW by measuring resistance between connector terminals 27 and 28 at the column switch.
