Key Reminder Switch: Testing and Inspection

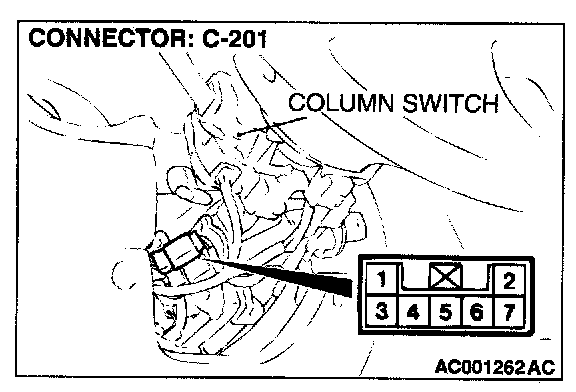

Disconnect key reminder switch connector without removing the ignition switch and steering lock cylinder.

Key reminder switch check

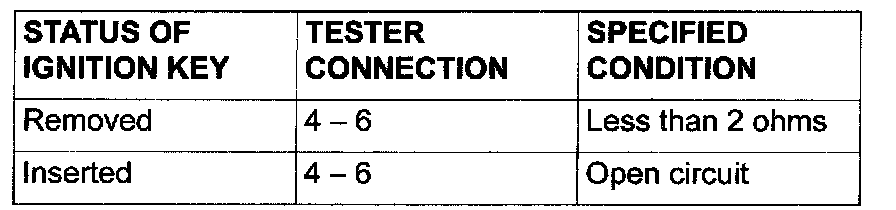

Check for continuity between terminal 4 and terminal 6.

Ignition key ring antenna check
Check for continuity between terminal 3 and terminal 7.

Standard value: Should be less than 2 ohms
