Impact Sensor: Service and Repair

SIDE IMPACT SENSOR

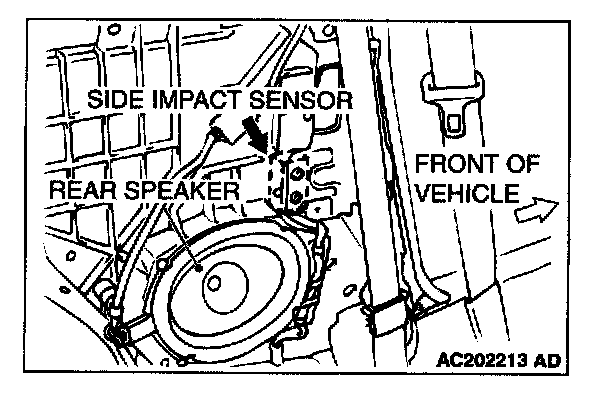

A side impact sensor is installed behind the quarter trim on both driver and passenger sides of the vehicle.

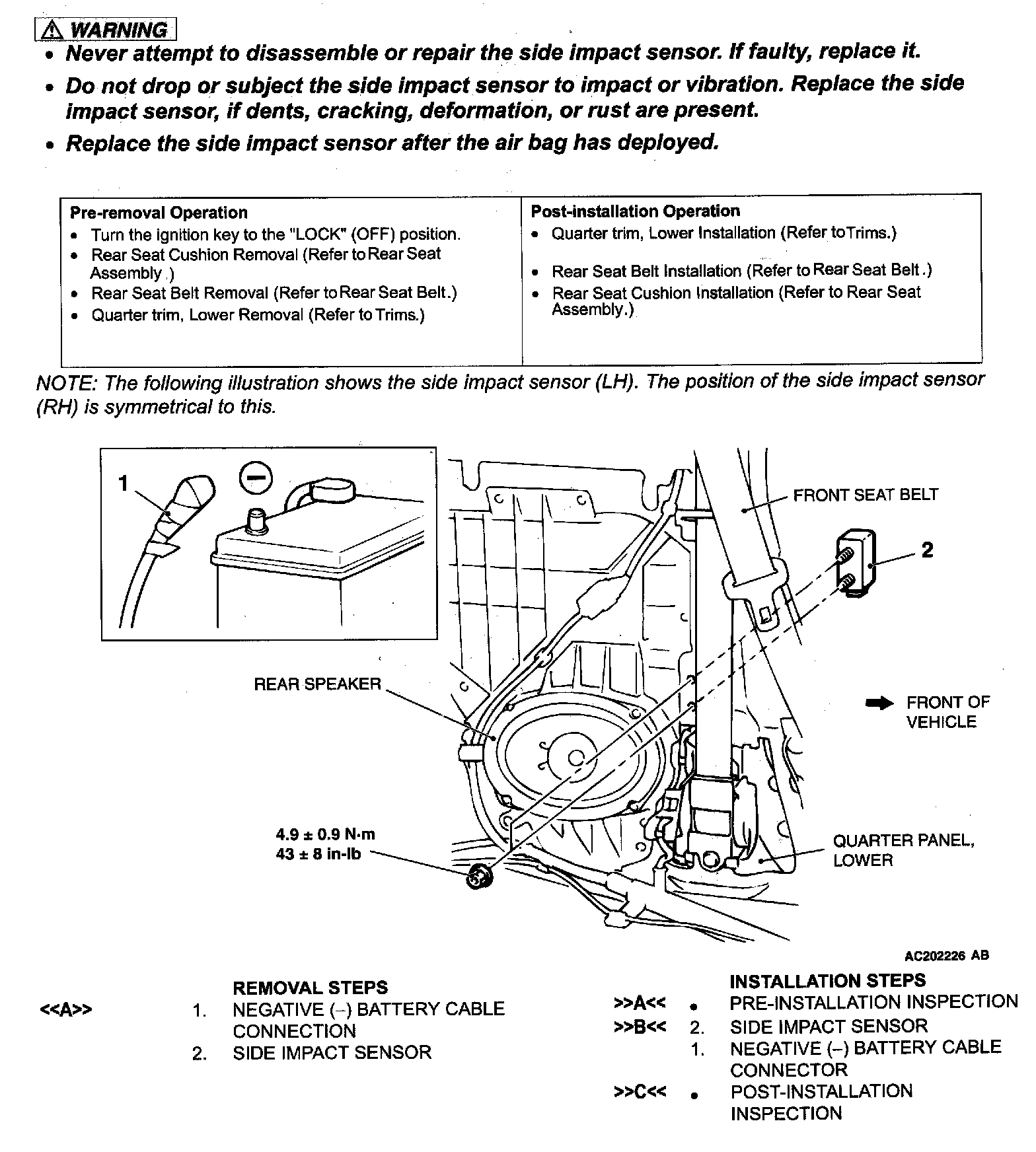

Removal And Installation:

REMOVAL SERVICE POINT




<> NEGATIVE (-) BATTERY CABLE DISCONNECTION

DANGER: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.

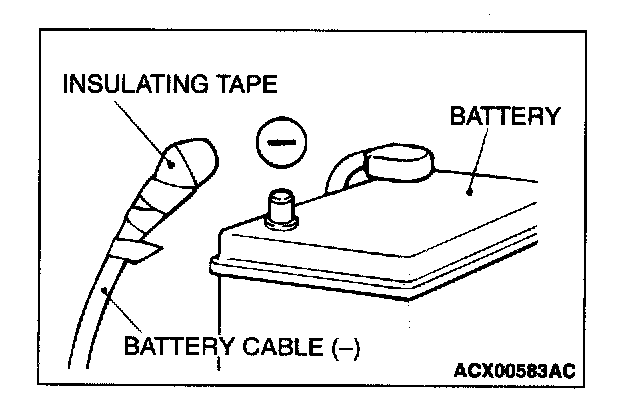

Disconnect the negative (-) battery cable from the battery and tape the terminal to prevent accidental connection and air bag deployment.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION
Check the side impact sensor for dents, breakage and bending and measure the resistance between the terminals, even when installing a new side impact sensor.

>>B<

WARNING: If the side impact sensor is not installed securely and correctly, the side-airbag may not operate normally. Securely connect the connector.

>>C<< POST-INSTALLATION INSPECTION
1. Reconnect the negative (-) battery cable.
2. Turn the ignition switch to the "ON' position.

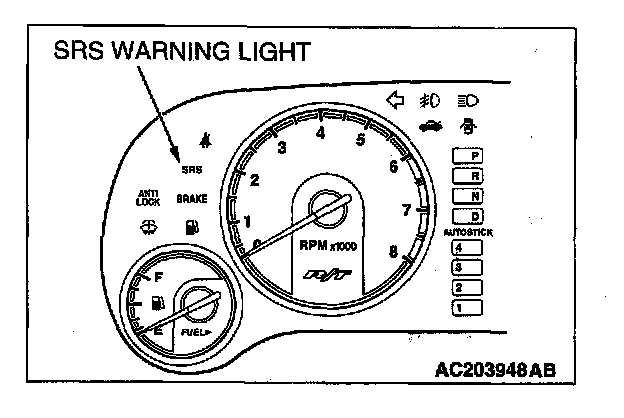

3. Does the "SRS" warning light illuminate for approximately seven seconds, and go out?
4. If yes, the SRS system is functioning properly.

INSPECTION

WARNING: If a dent, crack, deformation or rust is detected, replace with a new sensor.

NOTE: For checking of the side impact sensor other than described below, refer to the section concerning SRS diagnosis.

1. Check the side impact sensor and bracket for dents, cracks or deformation.
2. Check the connector for damage, and terminal for deformation.
3. Check that there is no bending or corrosion in the quarter panel.
