Air Bag Systems: Service Precautions
SERVICE PRECAUTIONSDANGER
- In order to avoid injury to yourself or others from accidental deployment of the air bag during servicing, read and carefully follow all the precautions and procedures described in this manual.

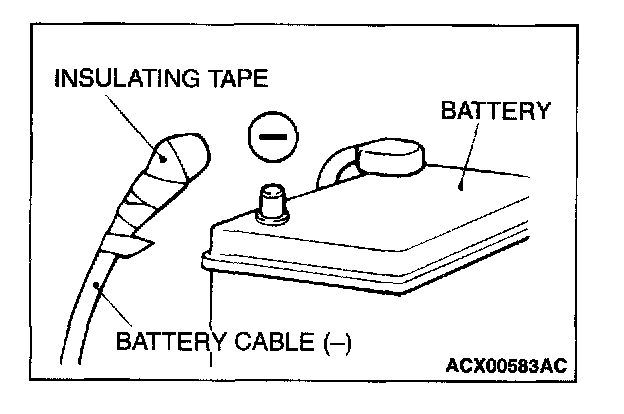

- After disconnecting the battery cable, wait 60 seconds or more before proceeding with the following work. The SRS system is designed to retain enough voltage to deploy the air bag for a short time even after the battery has been disconnected, so serious injury may result from unintended air bag deployment if work is done on the SRS system immediately after the battery cables are disconnected.
WARNING
- Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.
- Do not use any electrical test equipment on or near the SRS components, except those specified on.
- Never Attempt to Repair the Following Components: SRS-ECU, Clock Spring, Air Bag Module, Side Impact Sensor. If any of these components are diagnosed as faulty, they should only be replaced, in accordance with the INDIVIDUAL COMPONENT SERVICE procedures in this manual, starting on.

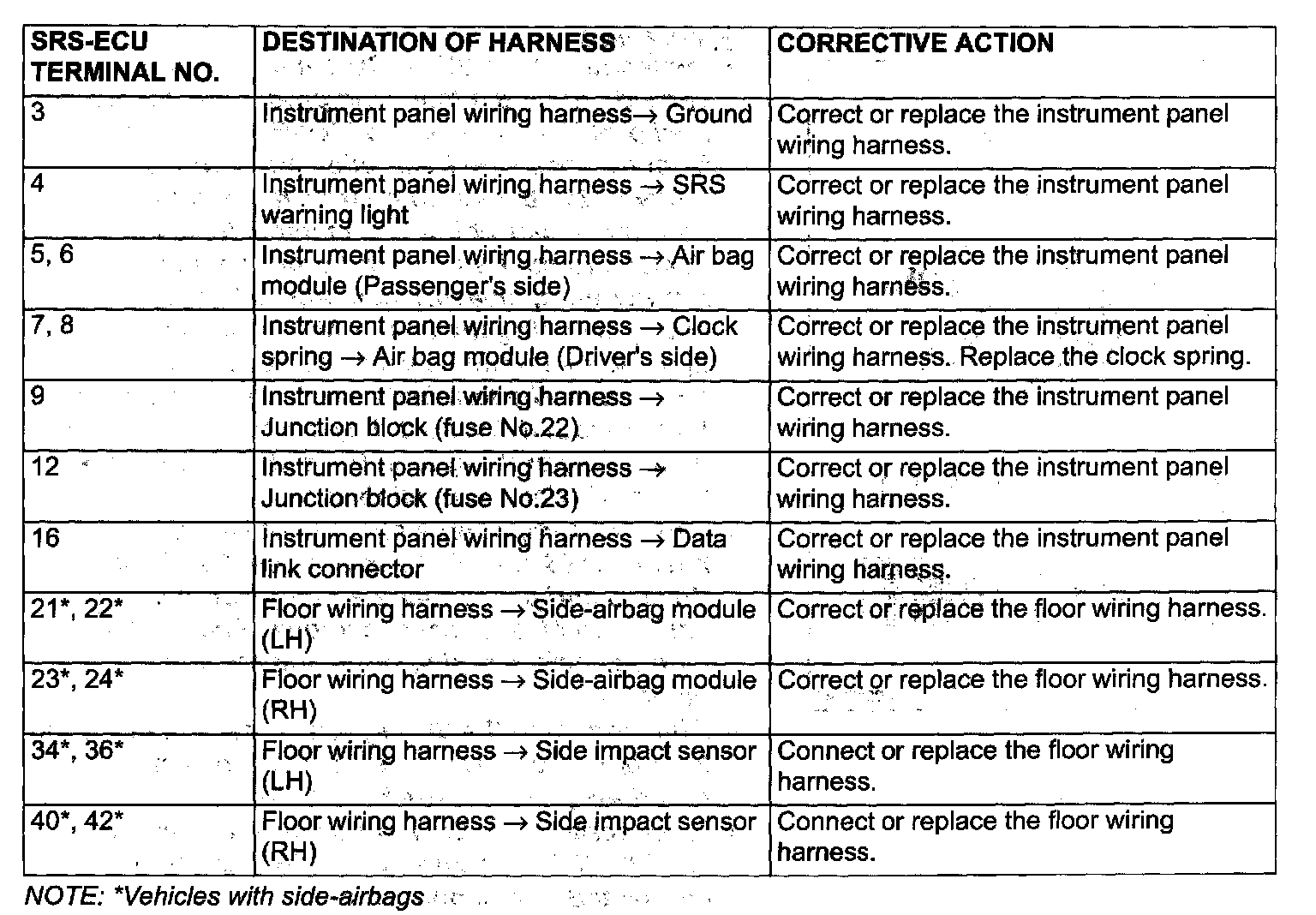

- Do not attempt to repair the wiring harness connectors of the SRS. If any of the connectors are diagnosed as faulty, replace the wiring harness. If the wires are diagnosed as faulty, replace or repair the wiring harness according to the following table.
WARNING

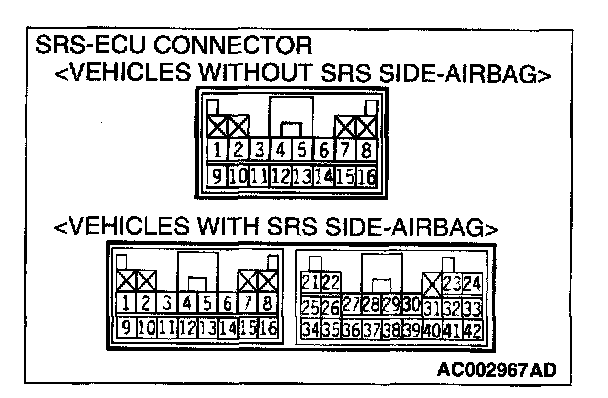

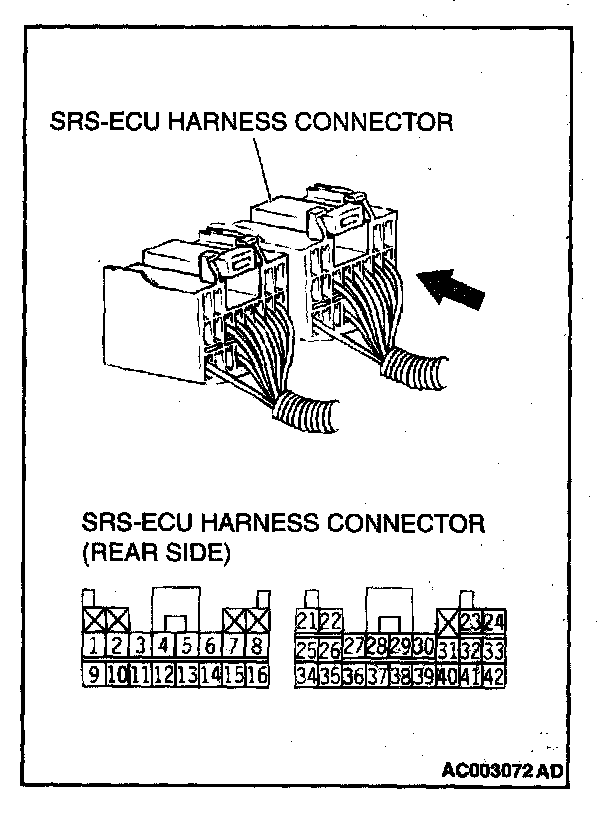

- Inspection at the SRS-ECU connector should be carried out by the following procedure. Insert the backprobing tool into the SRS-ECU connector from harness side (rear side), and connect the tester to the backprobing tool. If any tool other than the backprobing tool is used, it may cause damage to the harness and other components. Furthermore, measurement should not be carried out by touching the backprobing tool directly against the terminals from the front of the connector. The terminals are plated to increase their conductivity, so if they are touched directly by the backprobing tool, the plating may break, which will decrease reliability.
- The SRS components should not be subjected to heat over 93 °C (200 °F),so remove the SRS-ECU, driver's and passenger's air bag modules, clock spring, and front seat assemblies (side-airbag module) before drying or baking the vehicle after painting.
- After servicing the SRS system, check the warning light operation to make sure that the system functions properly.
- Make certain that the ignition switch is in the "LOCK" (OFF) position when the scan tool is connected or disconnected.
- If you have any questions about the SRS system, please contact your local distributor.
