Vehicles With Side Air Bag

Supplemental Restraint System (SRS) <Vehicles With Side Air Bag> Part 1:

Supplemental Restraint System (SRS) <Vehicles With Side Air Bag> Part 2:

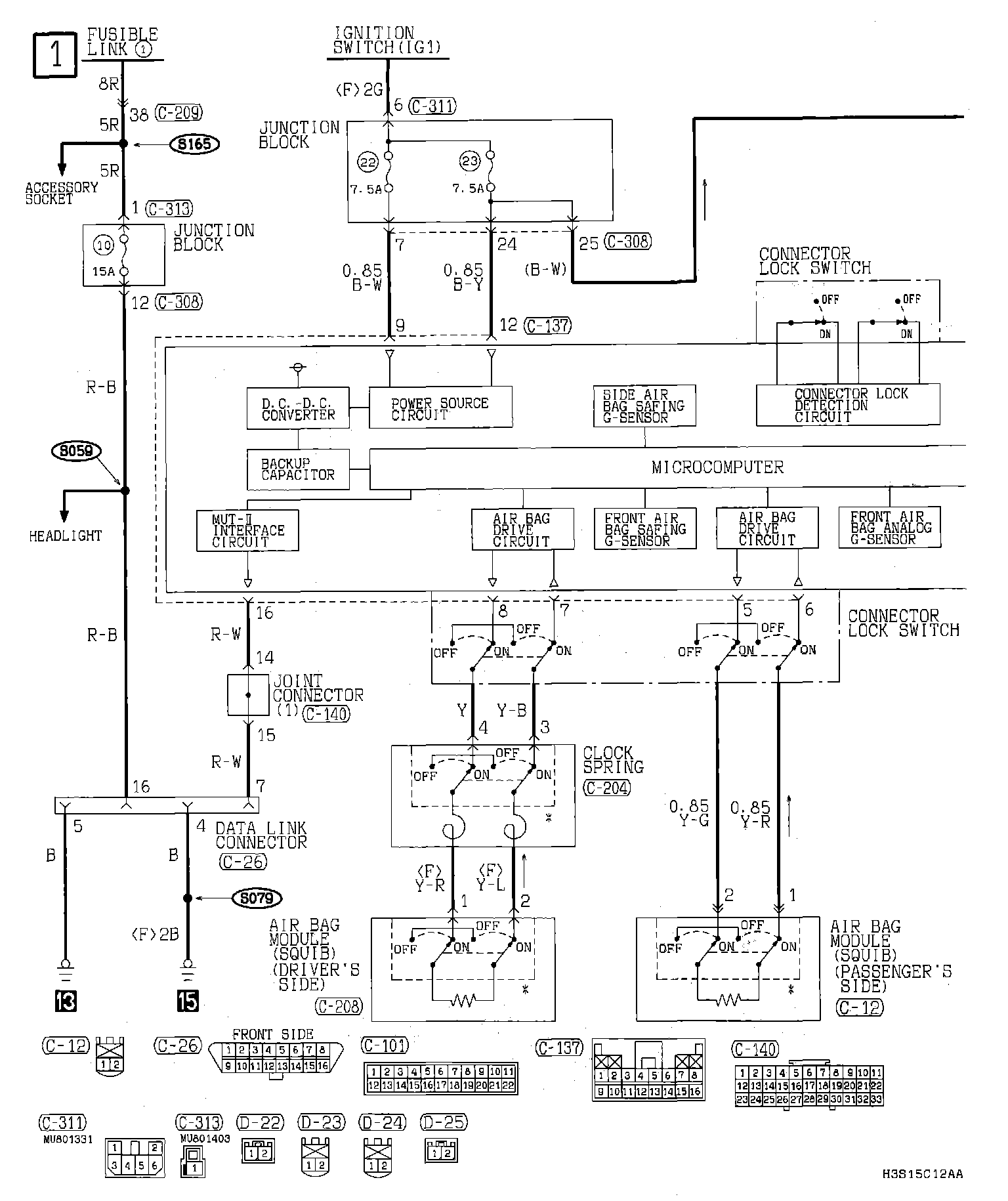

Schematic:

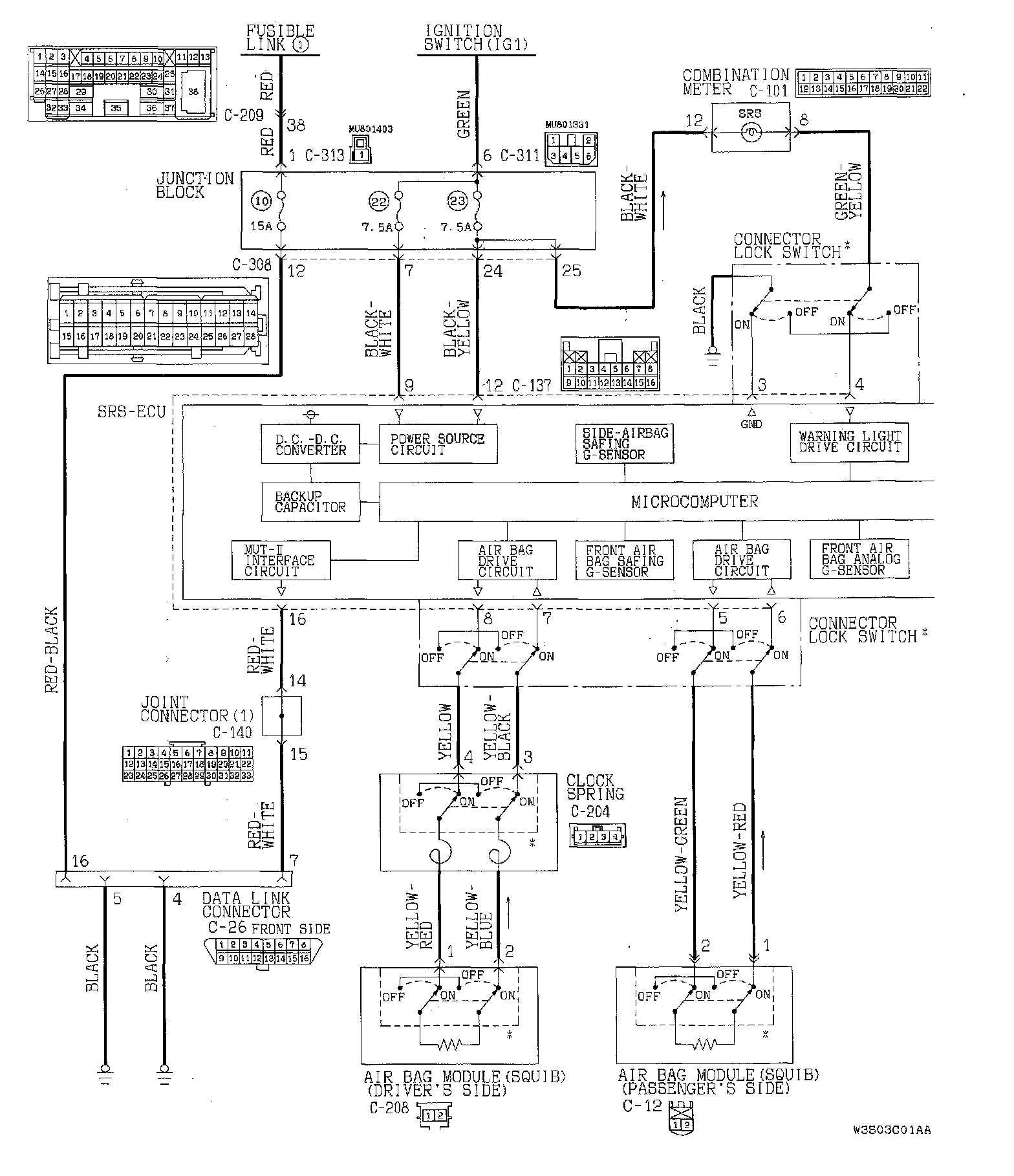

Circuit Diagram Part 2:

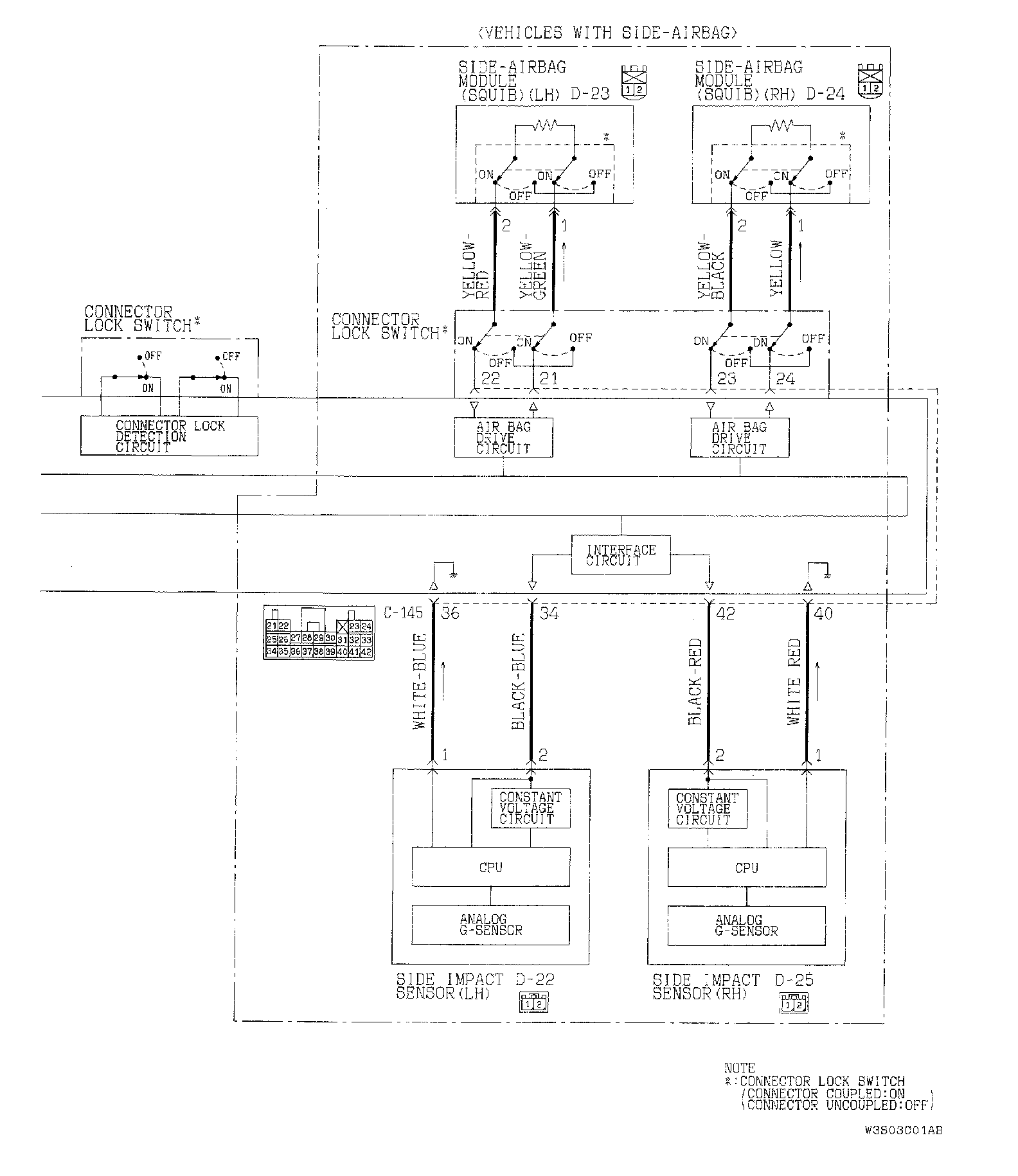

Circuit Diagram Part 3:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
