Ignition Cable: Testing and Inspection

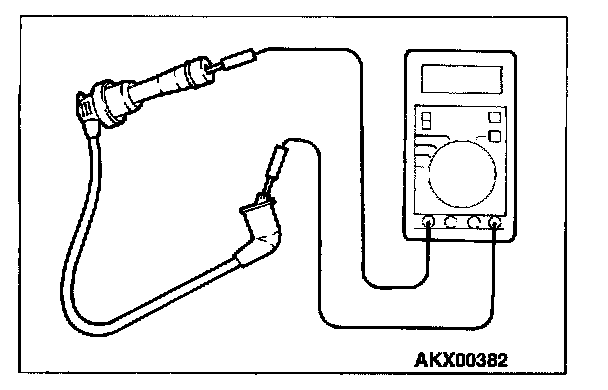

Measure the resistance of the all spark plug leads.
1. Check the cap and coating for cracks.
2. Measure the resistance.

Limit: 19 kilo ohms
