Electrical Diagrams

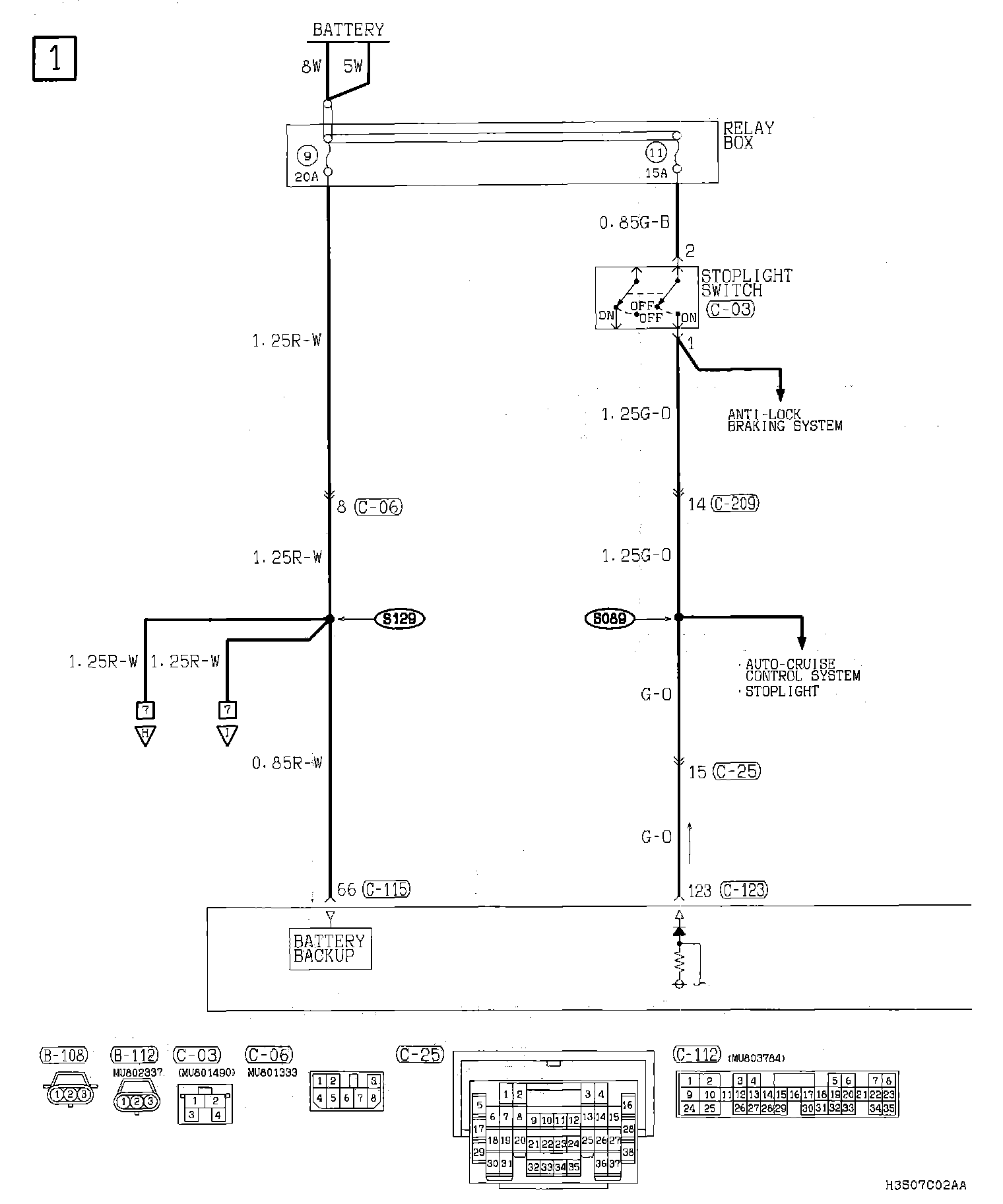

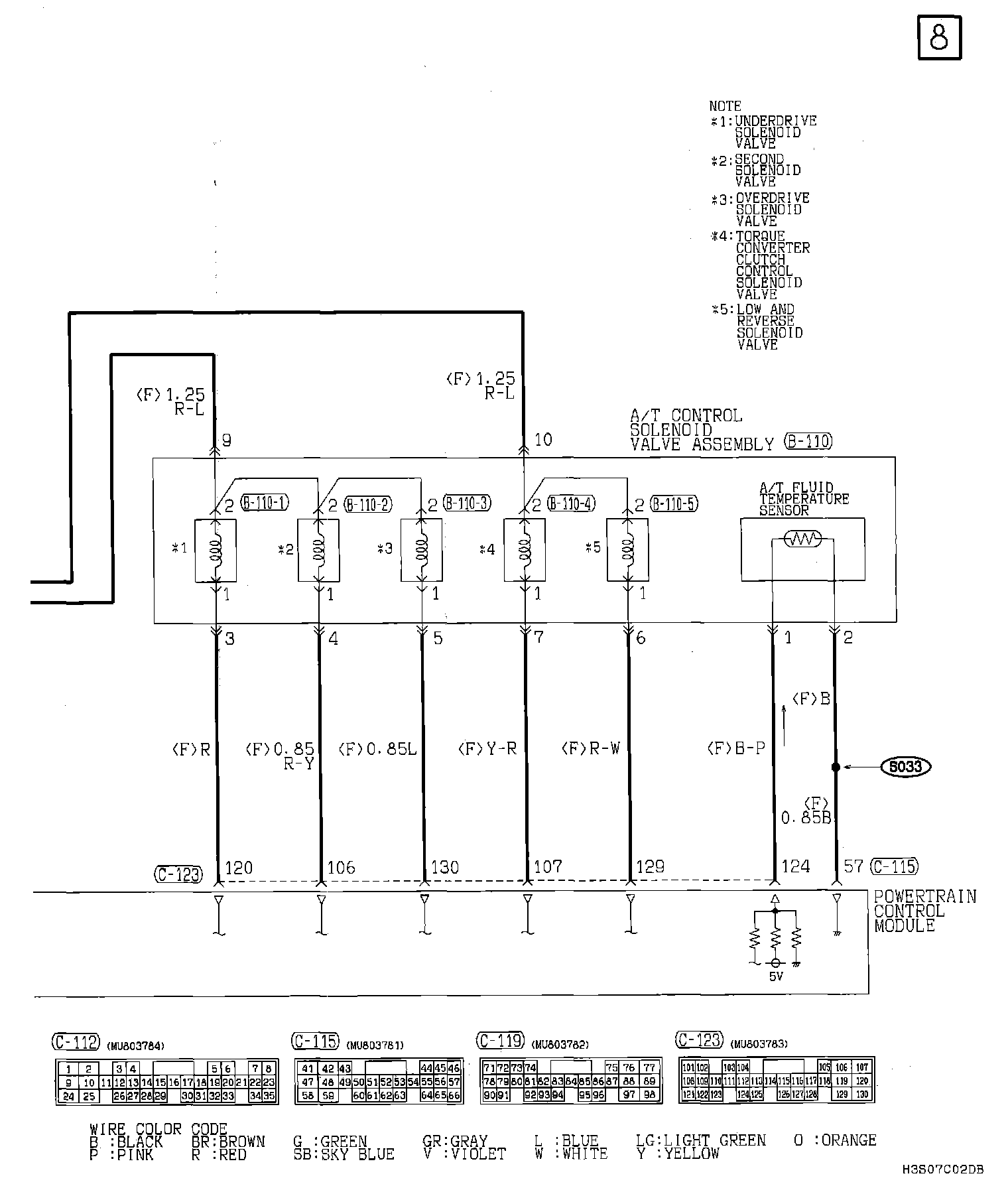

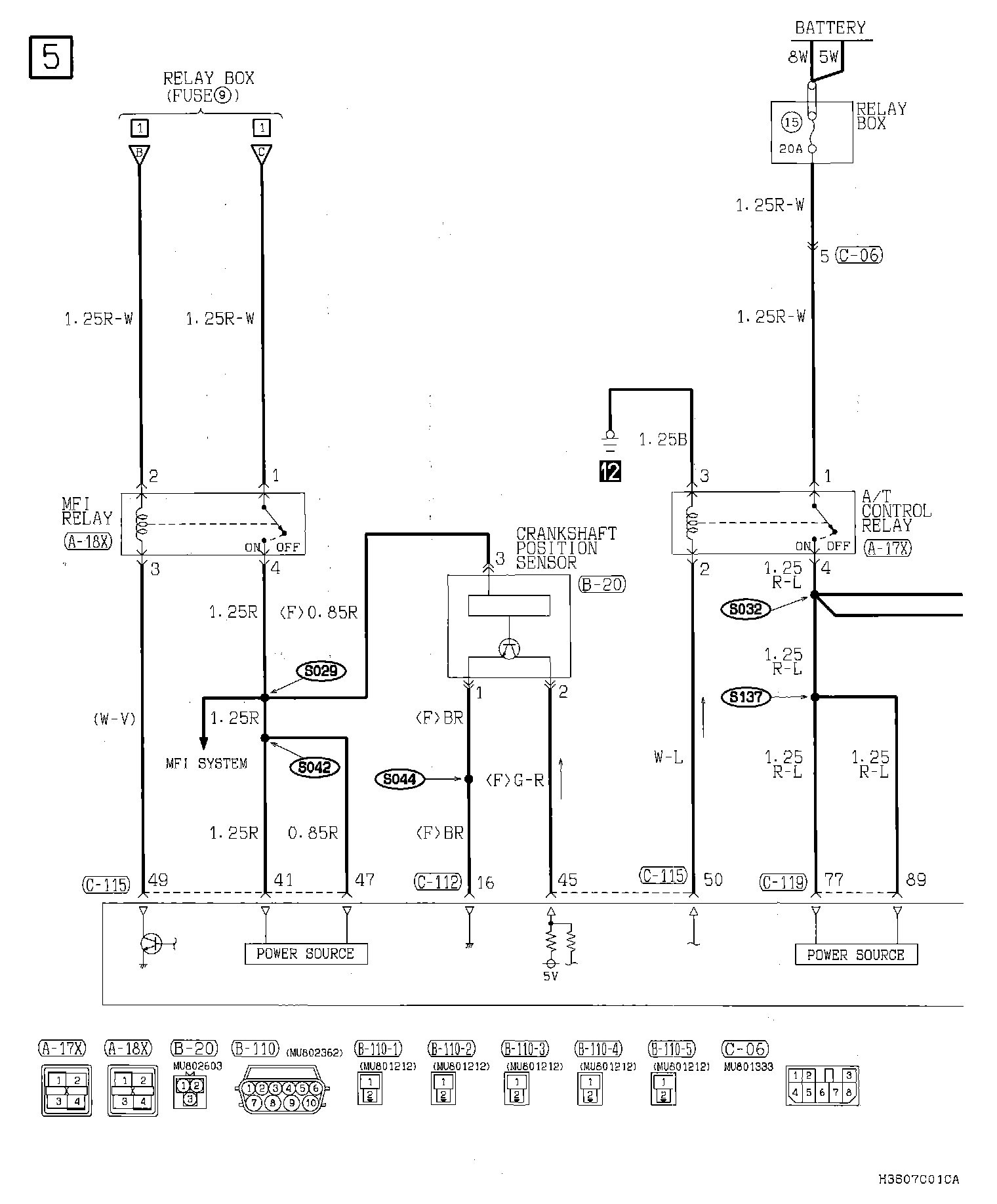

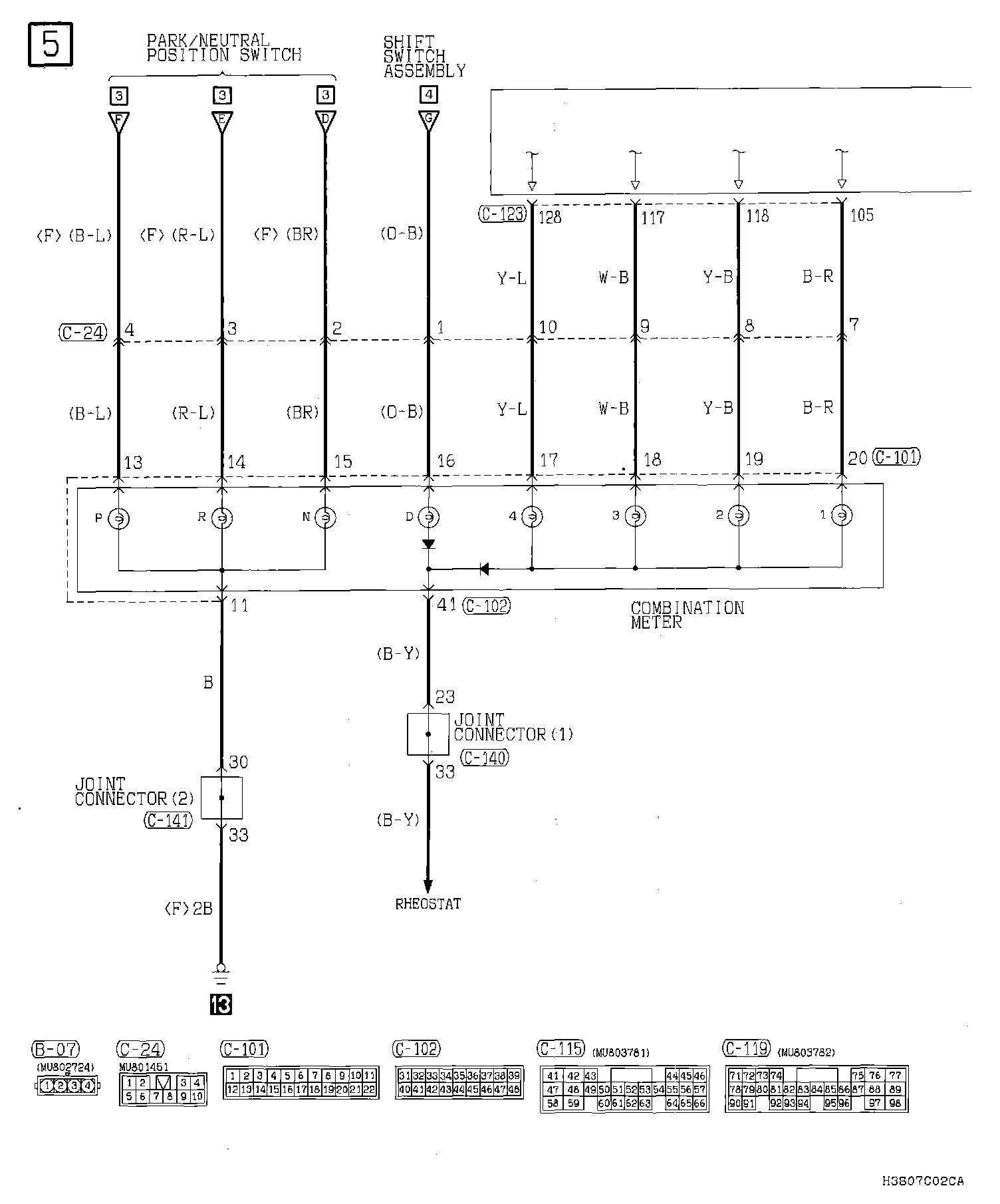

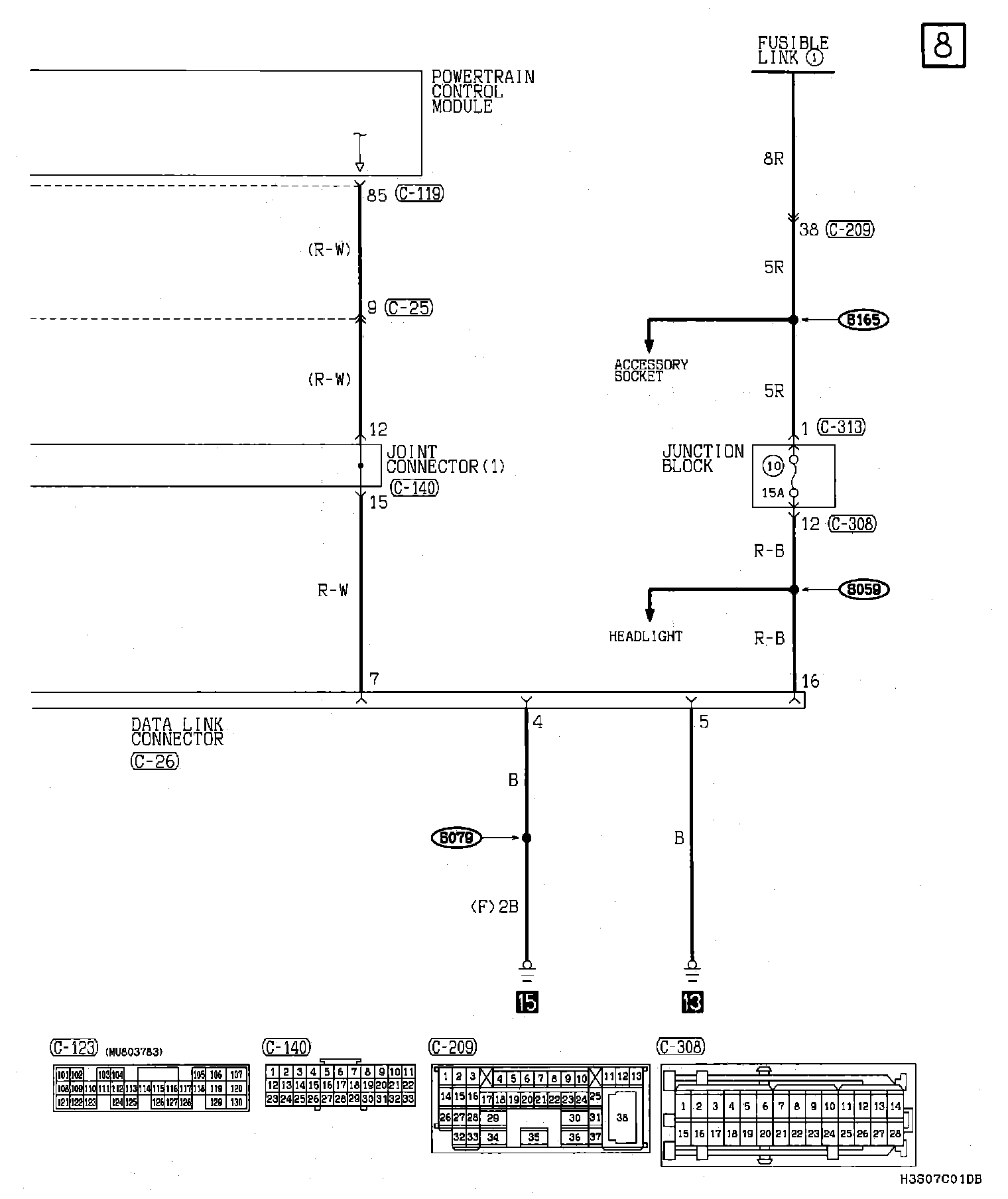

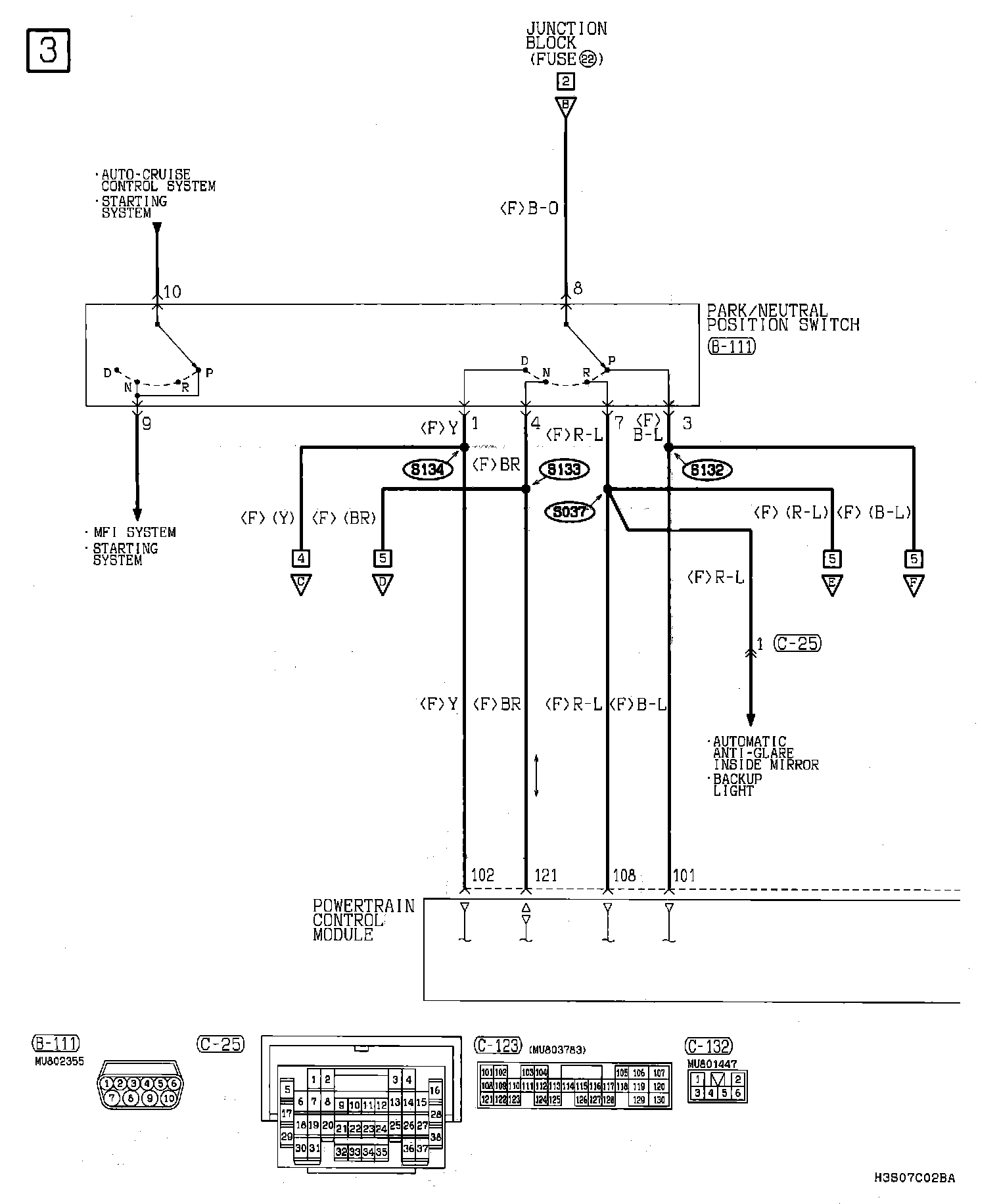

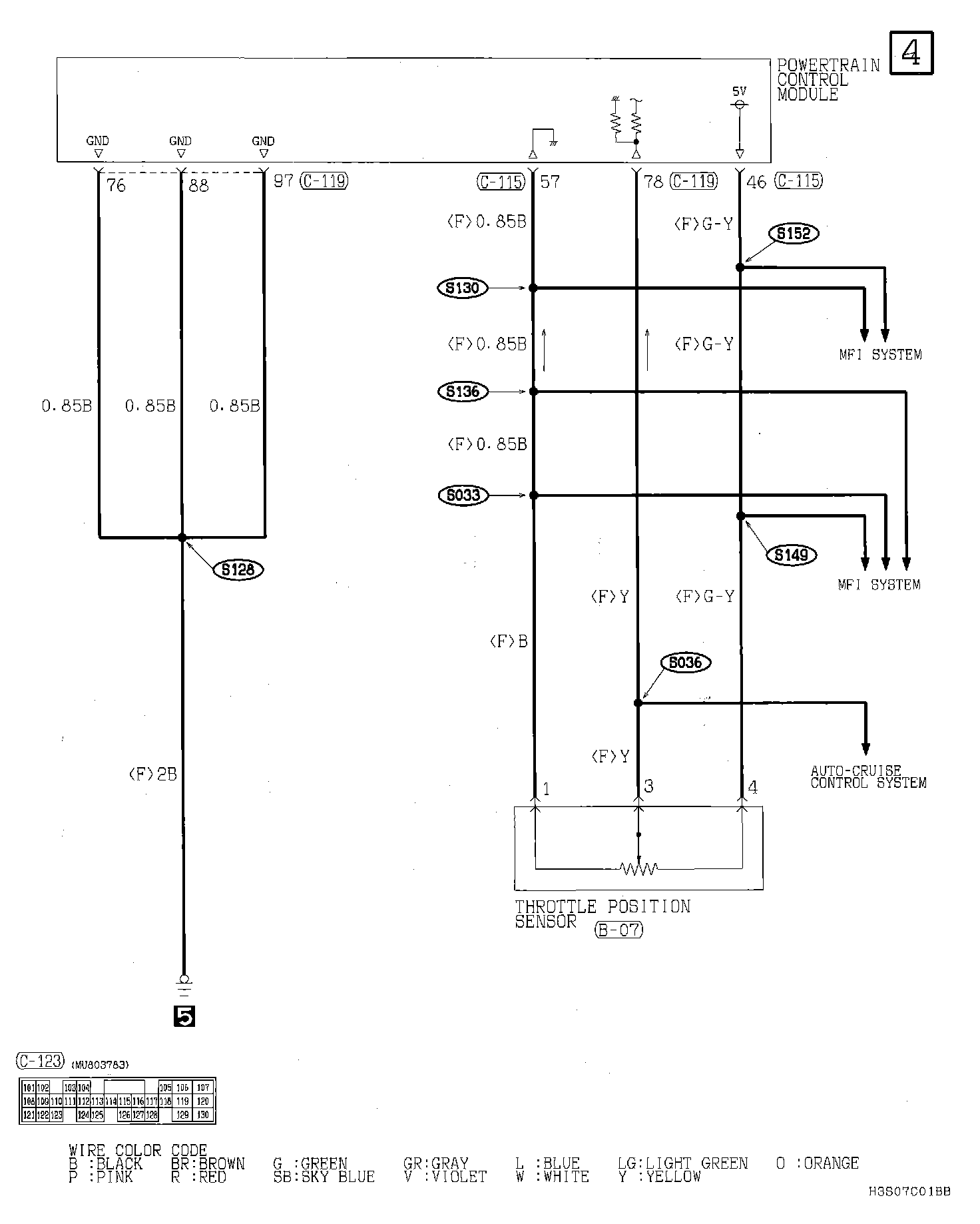

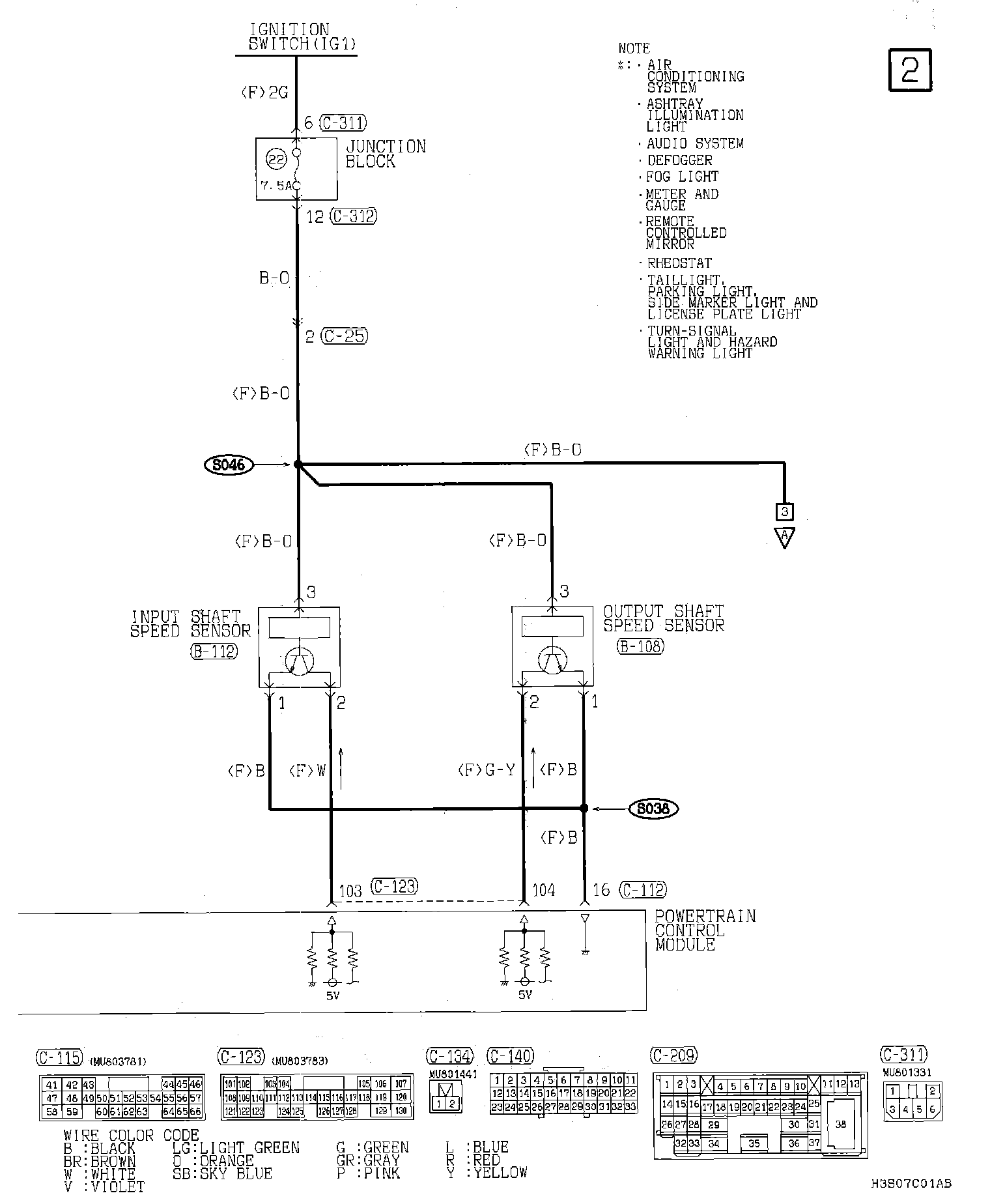

INVECS-II 4A/T <3.0L Engine (Vehicles Without Sport Mode Type)> Part 1:

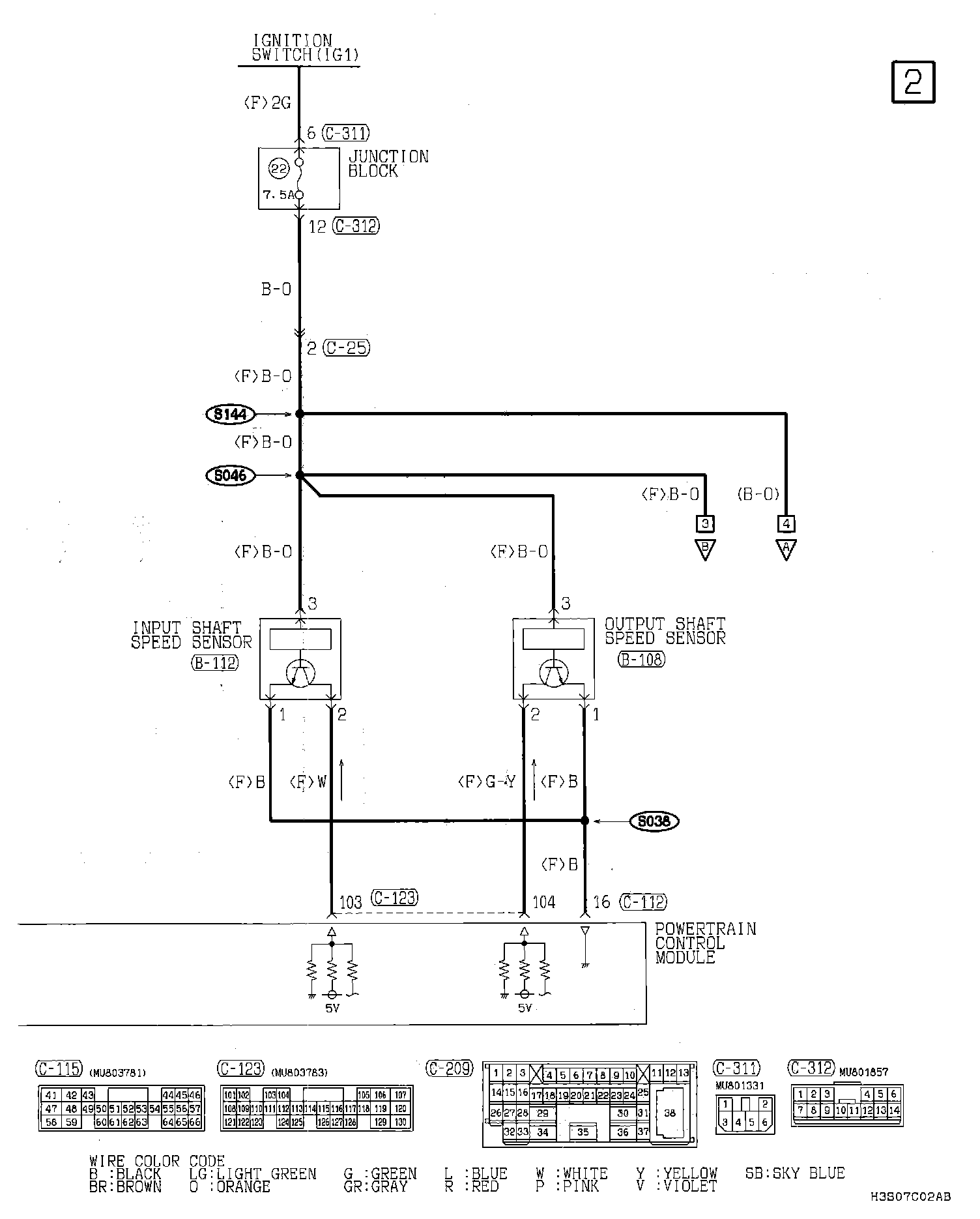

INVECS-II 4A/T <3.0L Engine (Vehicles Without Sport Mode Type)> Part 2:

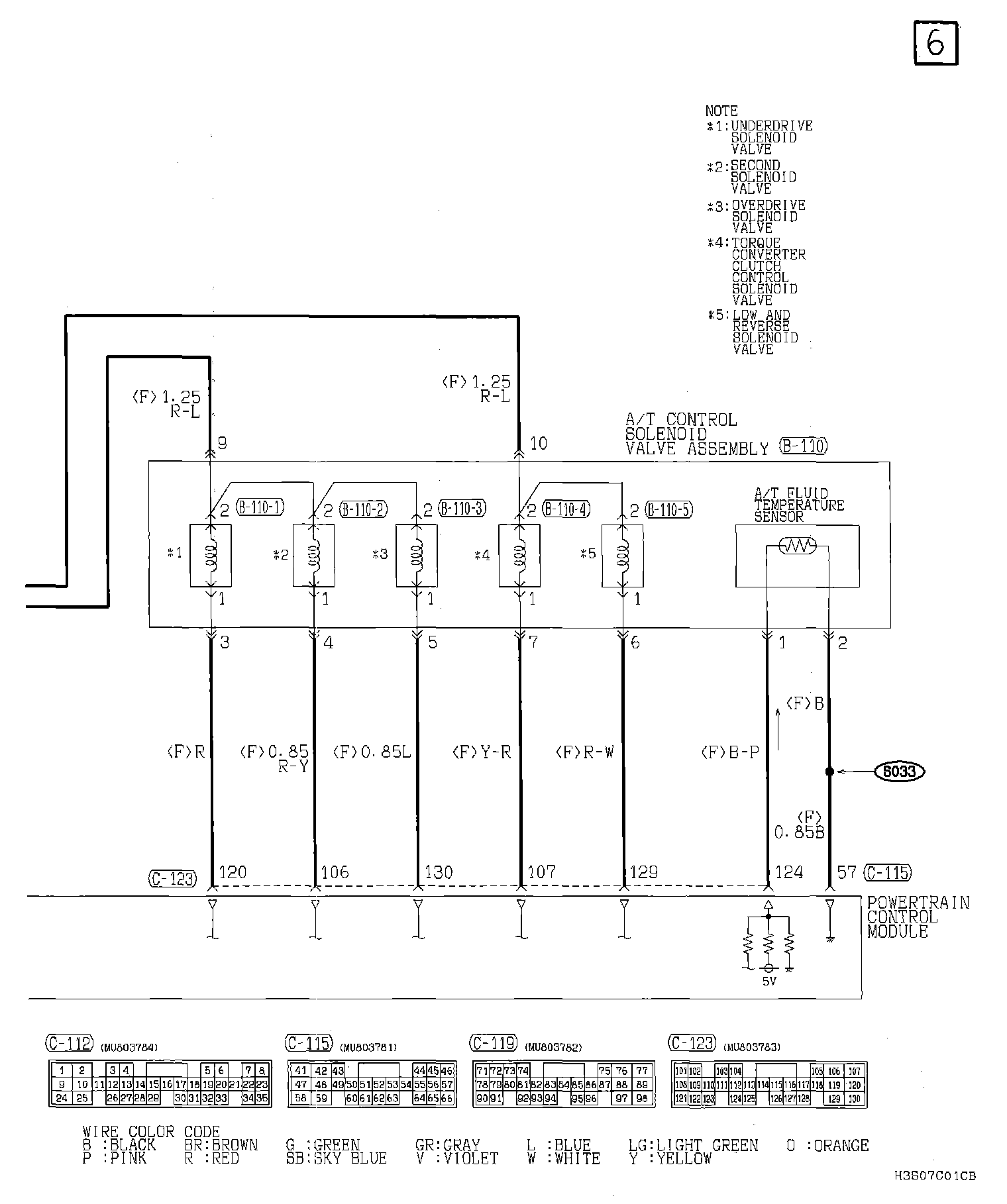

INVECS-II 4A/T <3.0L Engine (Vehicles Without Sport Mode Type)> Part 3:

INVECS-II 4A/T <3.0L Engine (Vehicles Without Sport Mode Type)> Part 4:

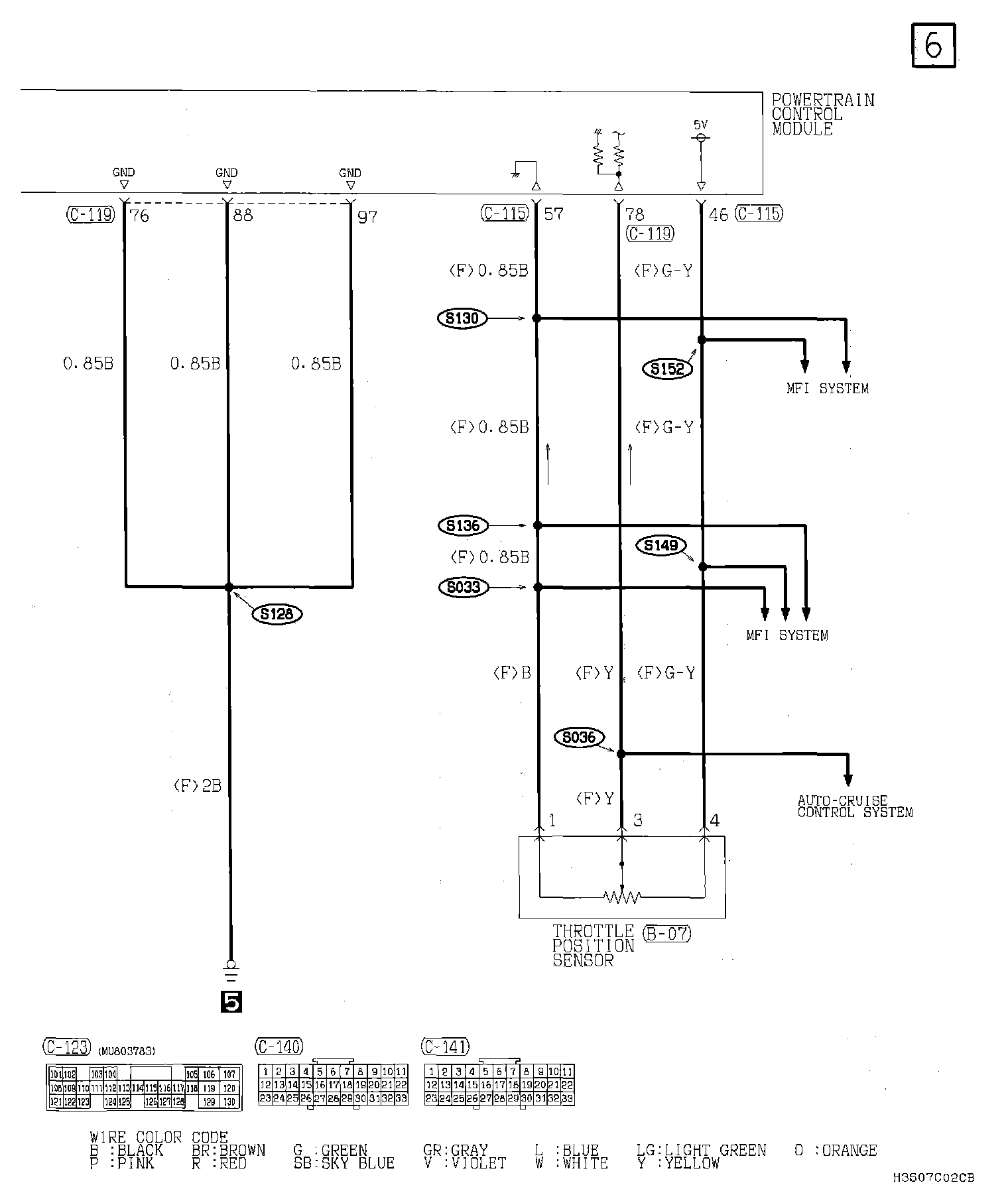

INVECS-II 4A/T <3.0L Engine (Vehicles Without Sport Mode Type)> Part 5:

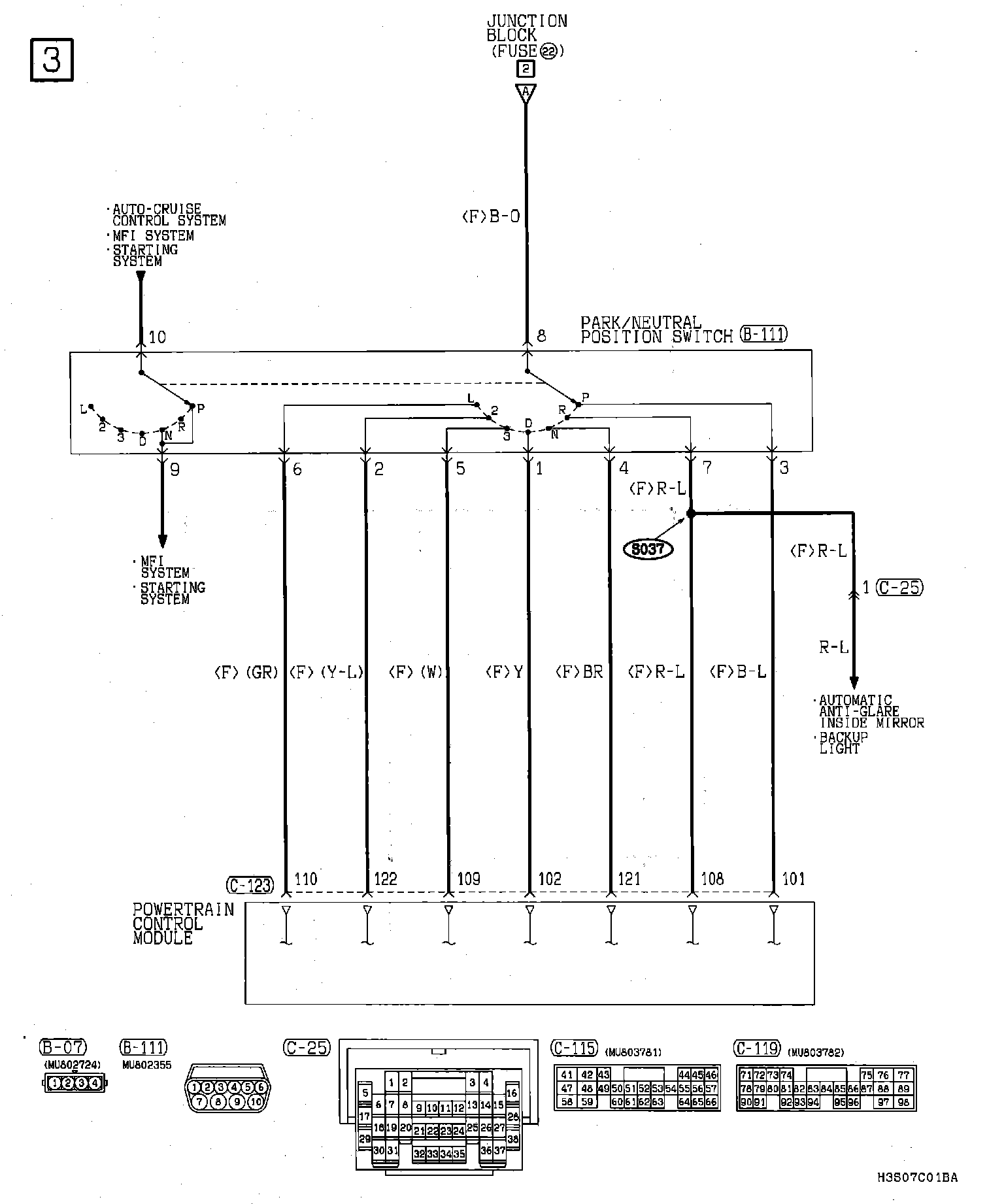

INVECS-II 4A/T <3.0L Engine (Vehicles Without Sport Mode Type)> Part 6:

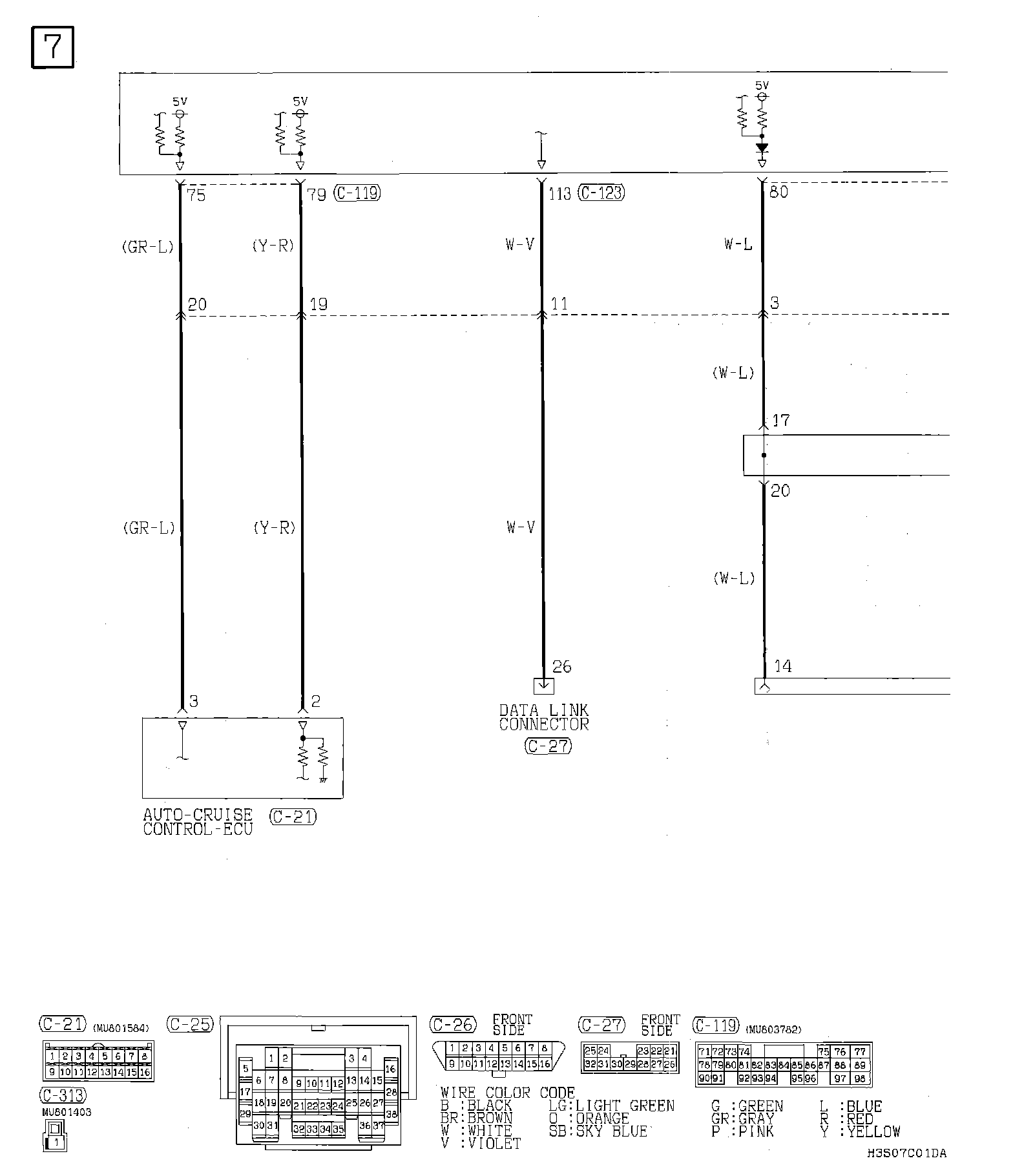

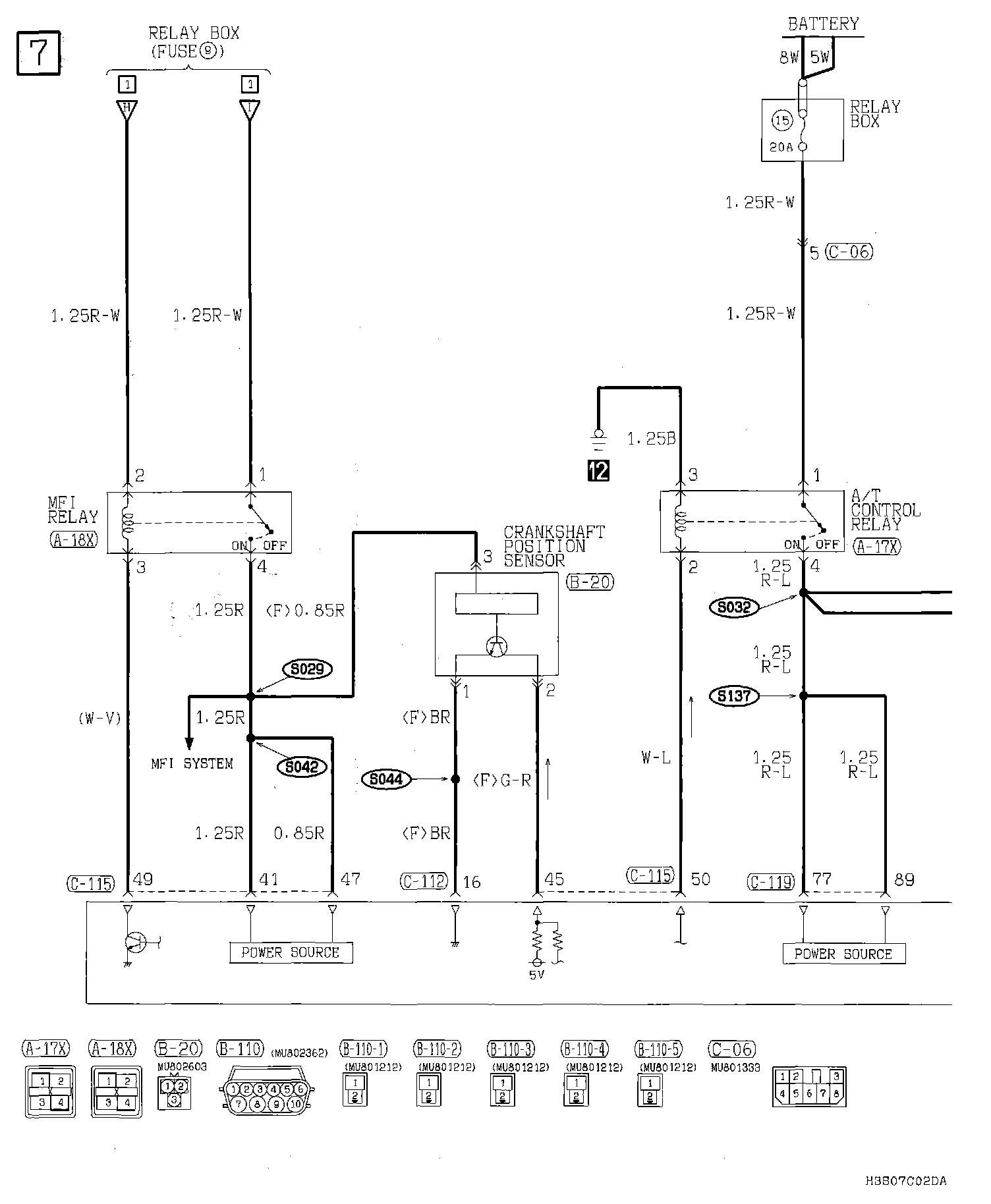

INVECS-II 4A/T <3.0L Engine (Vehicles Without Sport Mode Type)> Part 7:

INVECS-II 4A/T <3.0L Engine (Vehicles Without Sport Mode Type)> Part 8:

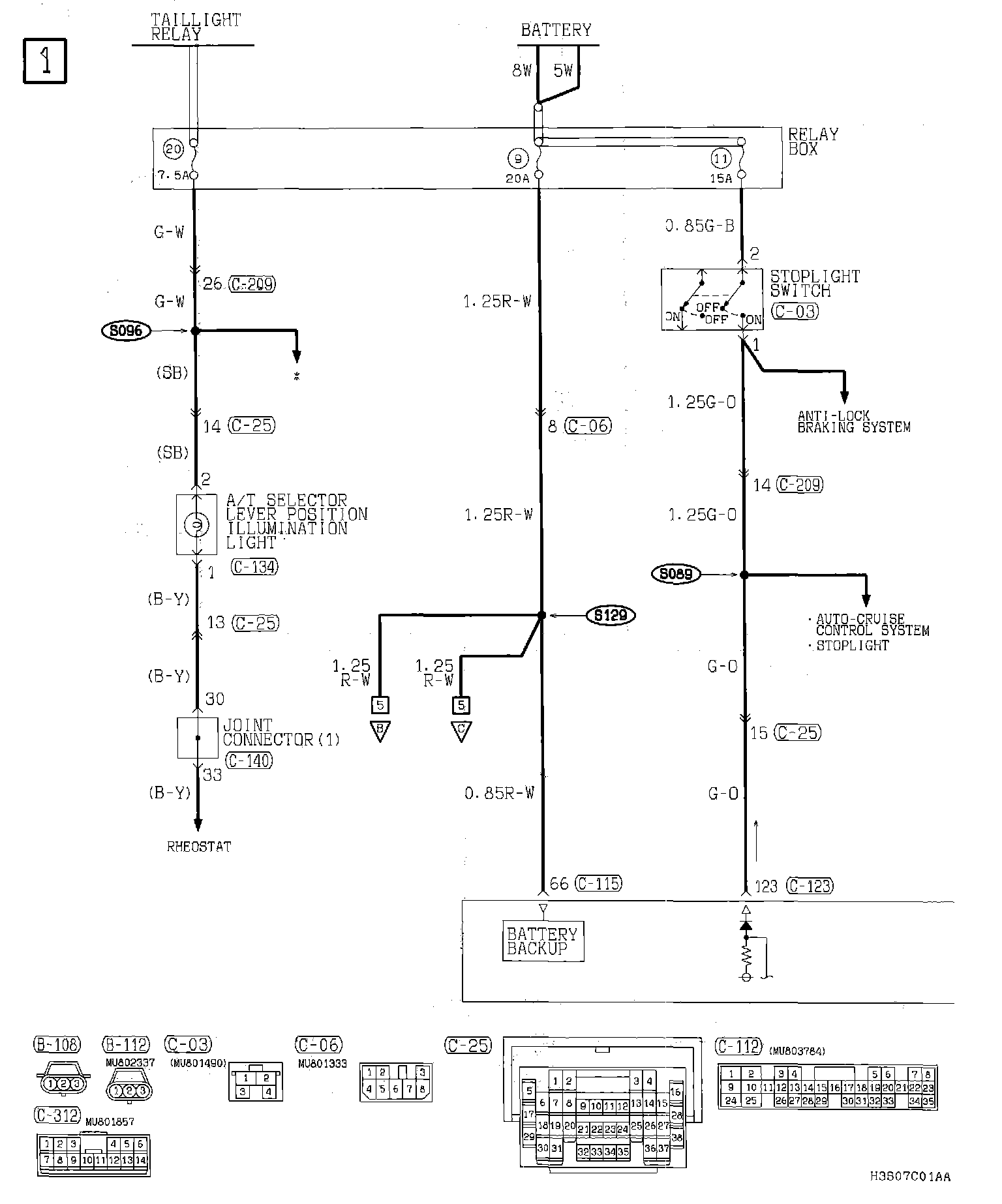

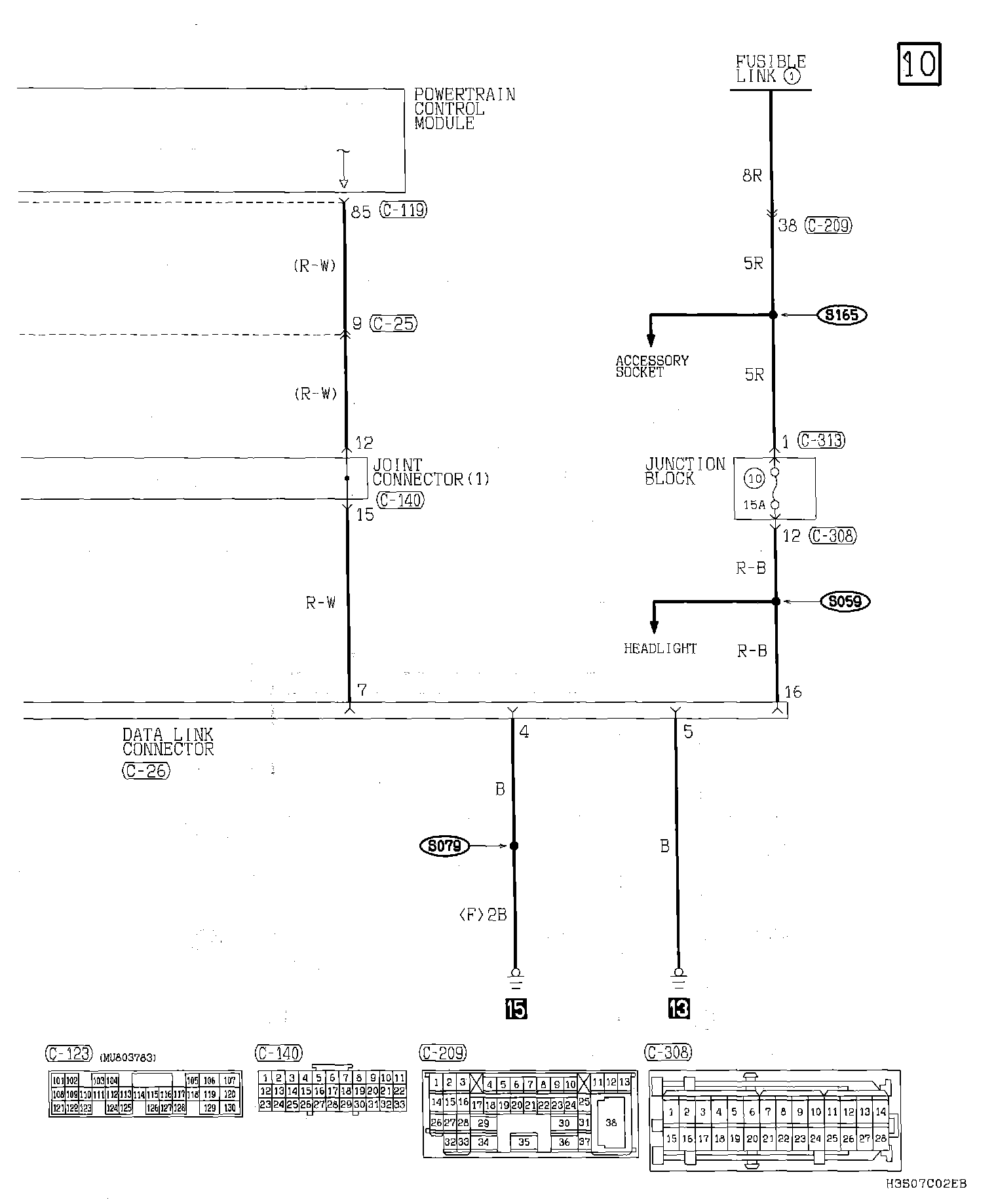

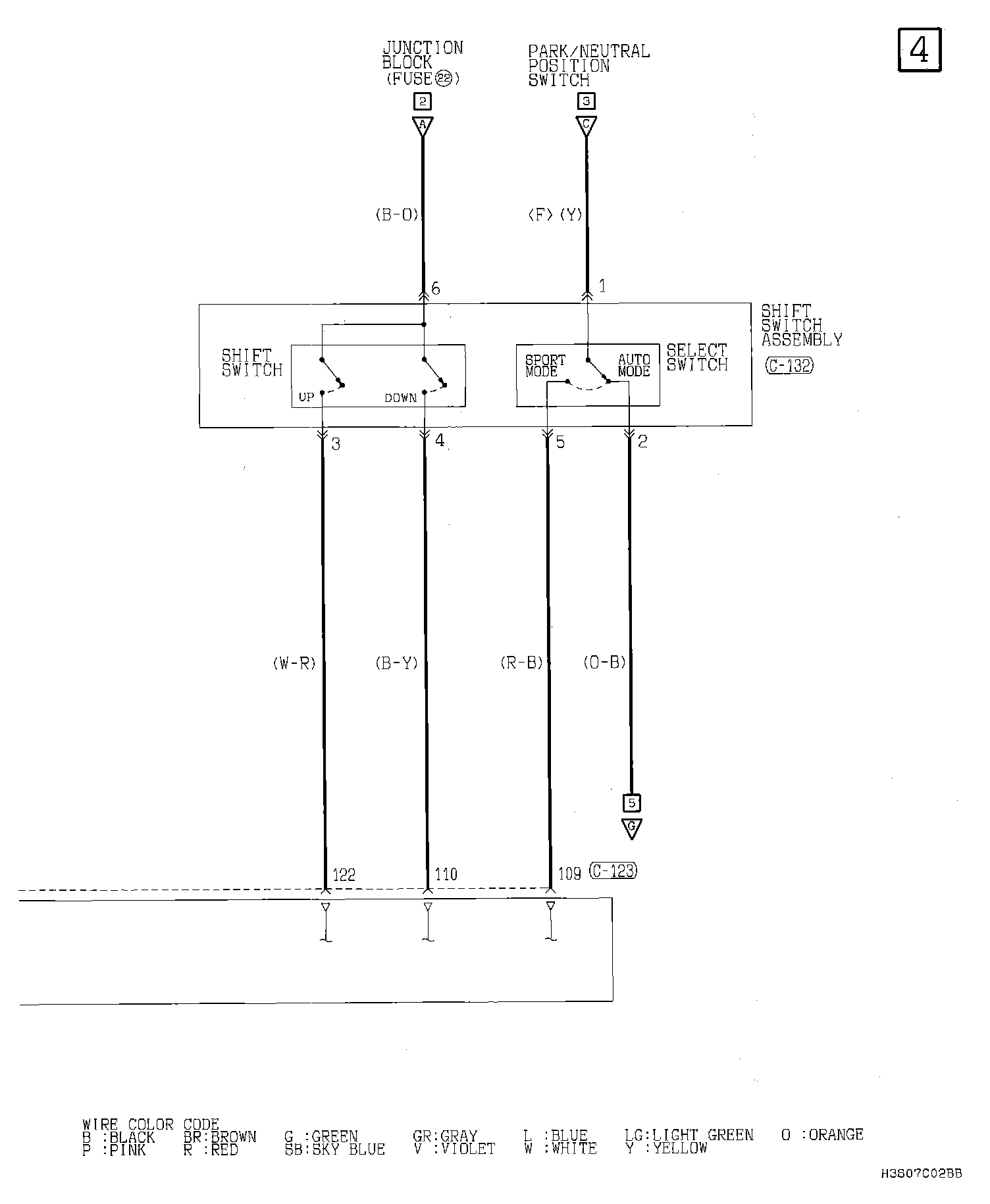

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 1:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 2:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 3:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 4:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 5:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 6:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 7:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 8:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 9:

INVECS-II 4A/T <3.0L Engine (Vehicles With Sport Mode Type)> Part 10:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
