Removal and Installation

Throttle Body Assembly:

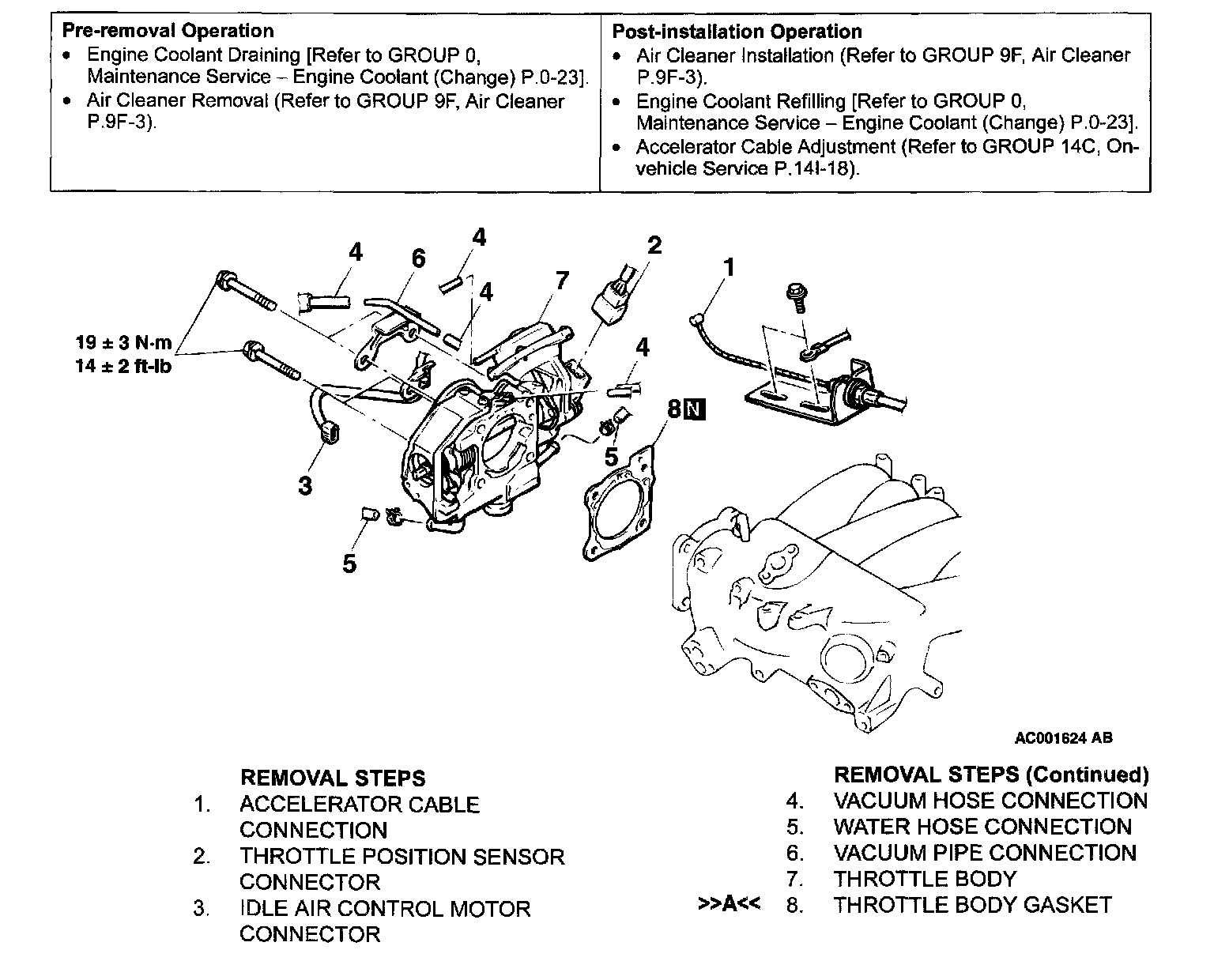

THROTTLE BODY ASSEMBLY

INSTALLATION SERVICE POINT

<> THROTTLE BODY GASKET INSTALLATION





CAUTION Poor idling etc. may result if the throttle body gasket is installed incorrectly.

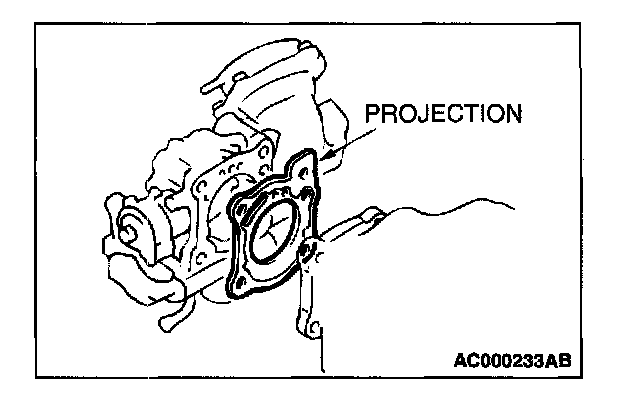

Install the throttle body gasket as shown in the illustration.
