Catalytic Converter: Service and Repair

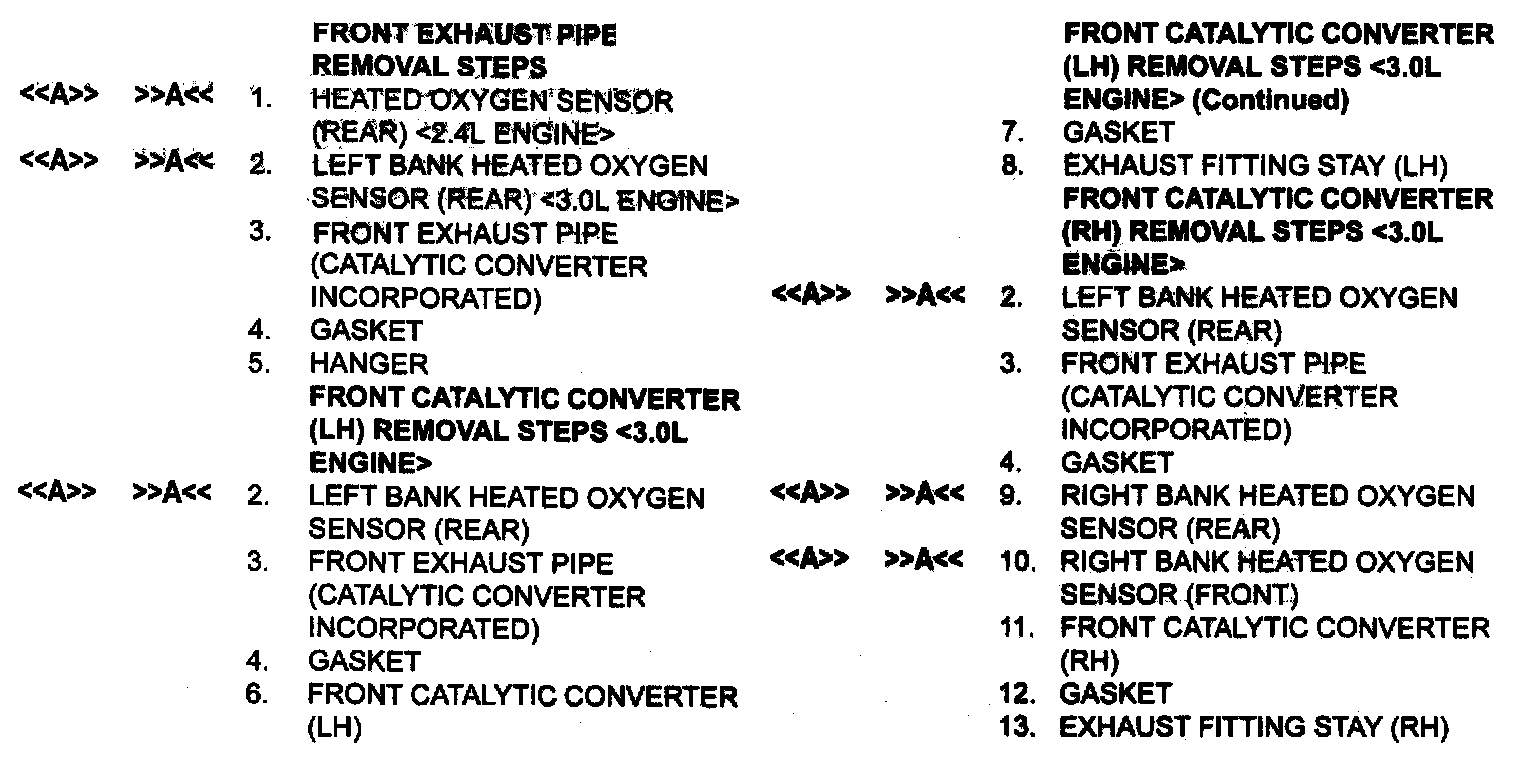

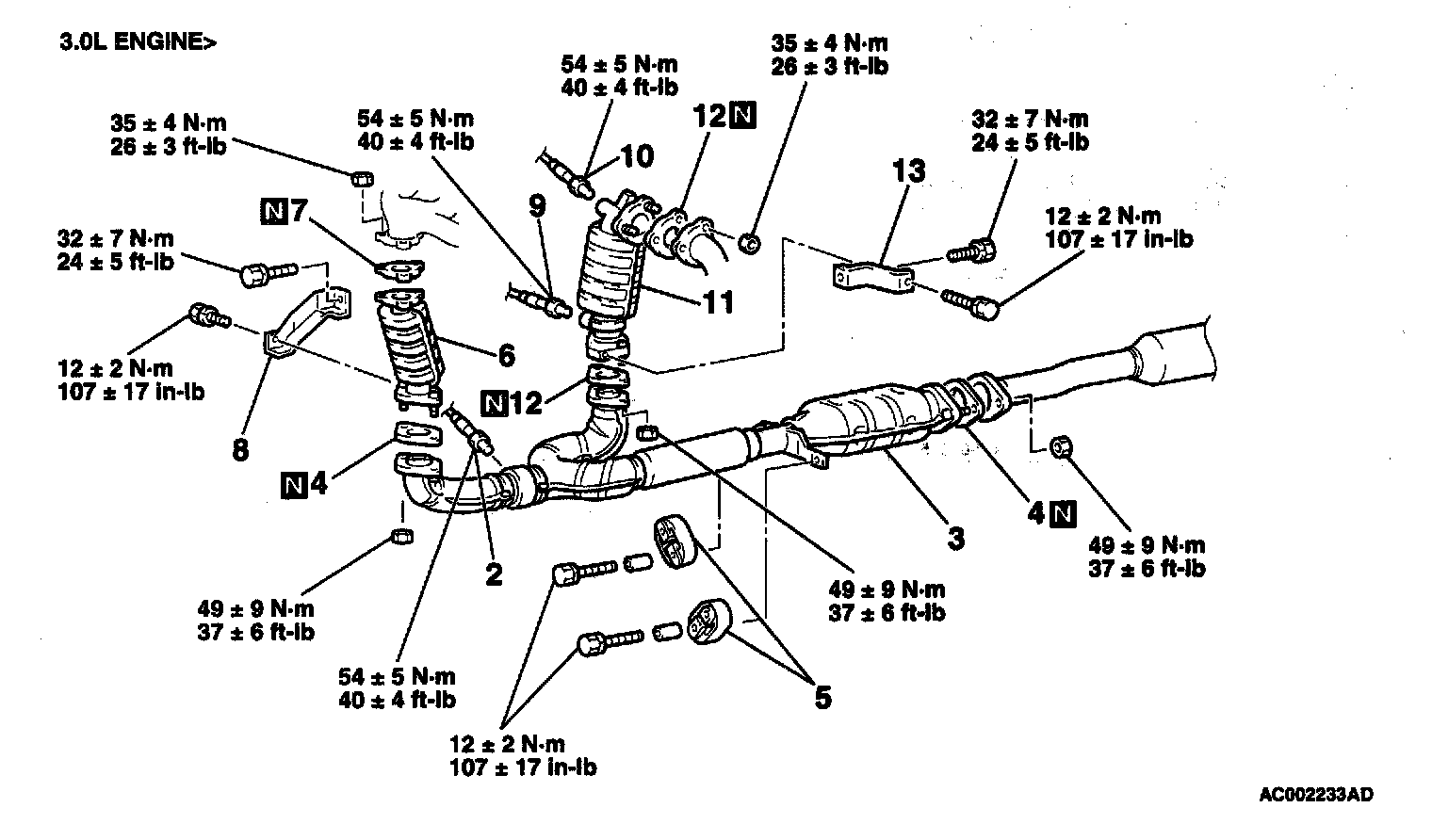

REMOVAL AND INSTALLATION

Removal And Installation:

Required Special
- MD998770: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

<> HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR/RIGHT BANK HEATED OXYGEN SENSOR (REAR/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL

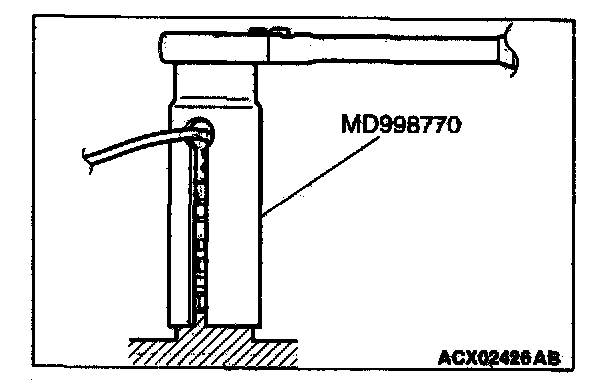

Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT

>>A<< RIGHT BANK HEATED OXYGEN SENSOR (FRONT)/RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/HEATED OXYGEN SENSOR (REAR) INSTALLATION

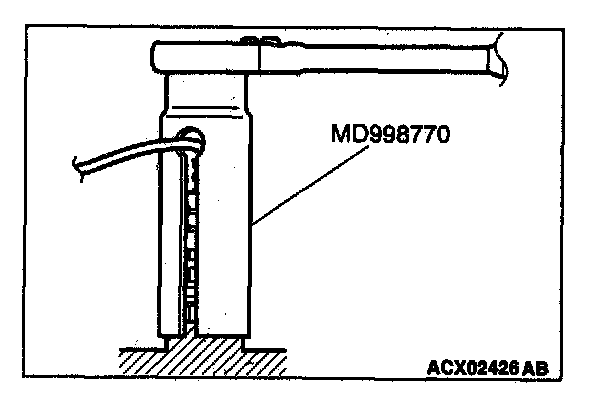

Use special tool MD998770 to installation the oxygen sensor.
