MFI System Part 3

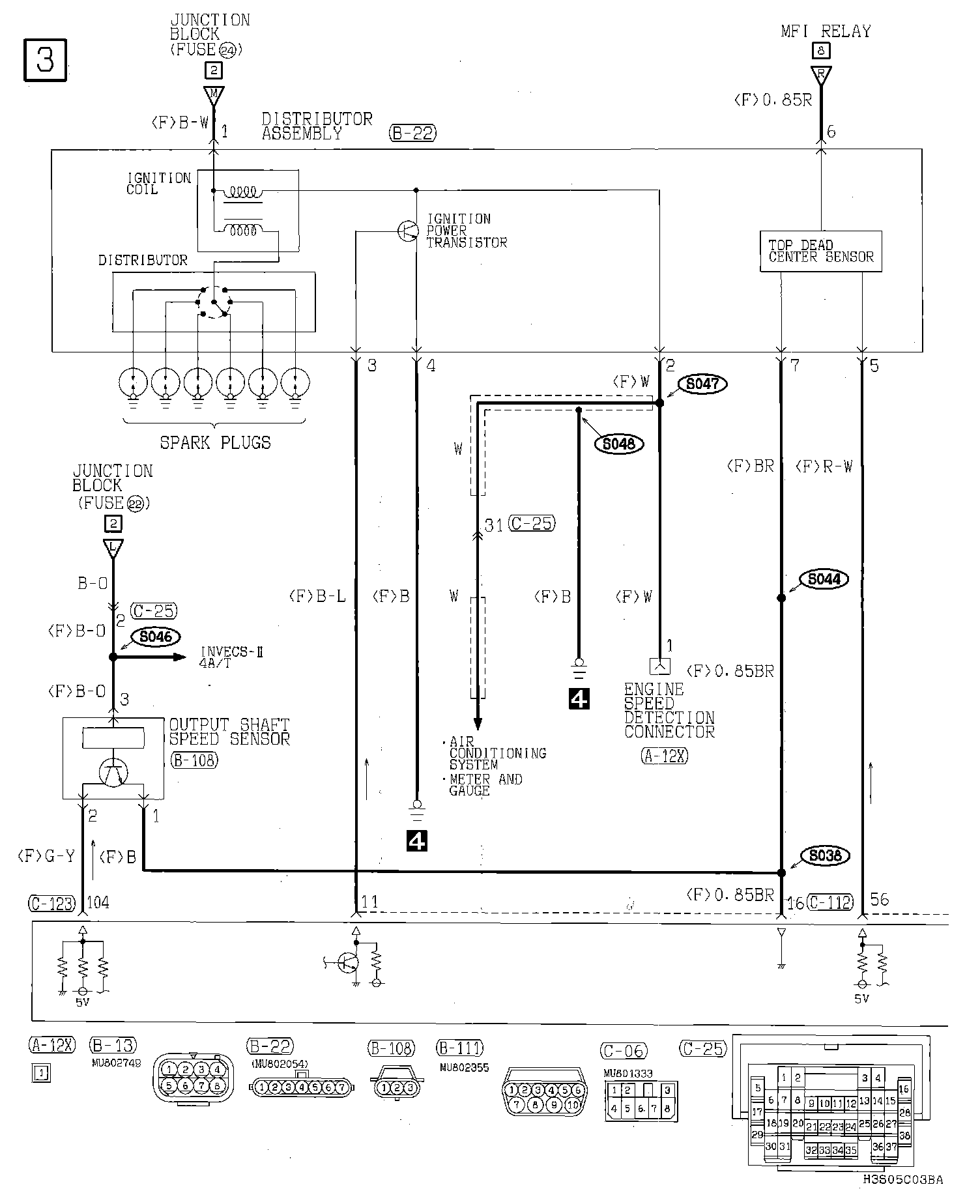

MFI System <3.0L Engine-A/T> Part 3:

Next Diagram MFI System Part 4

Previous Diagram MFI System Part 2


Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
