Inspection Procedure 29

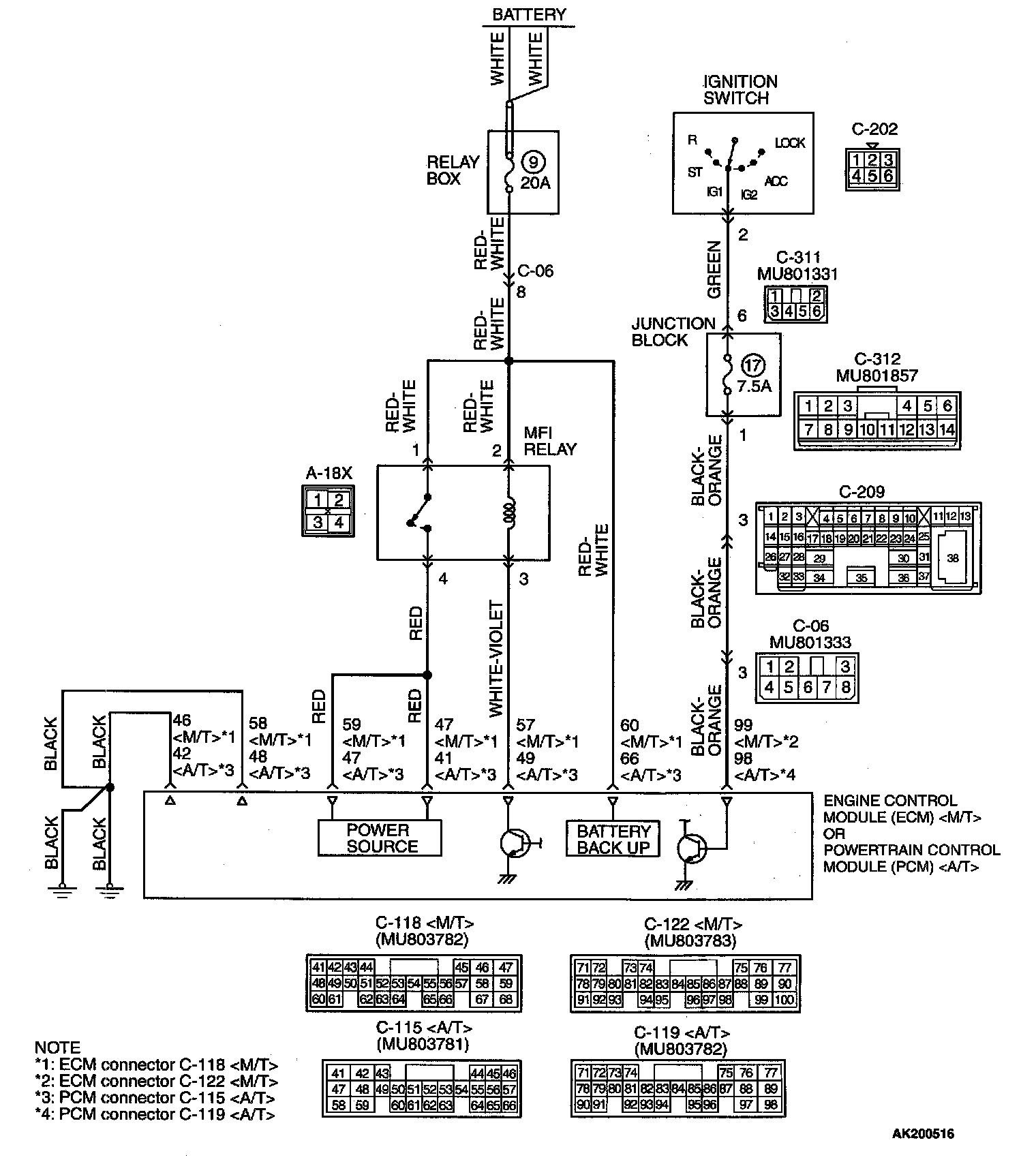

INSPECTION PROCEDURE 29: Power supply system and ignition switch-IG system.Power Supply And Ignition Switch-IG System:

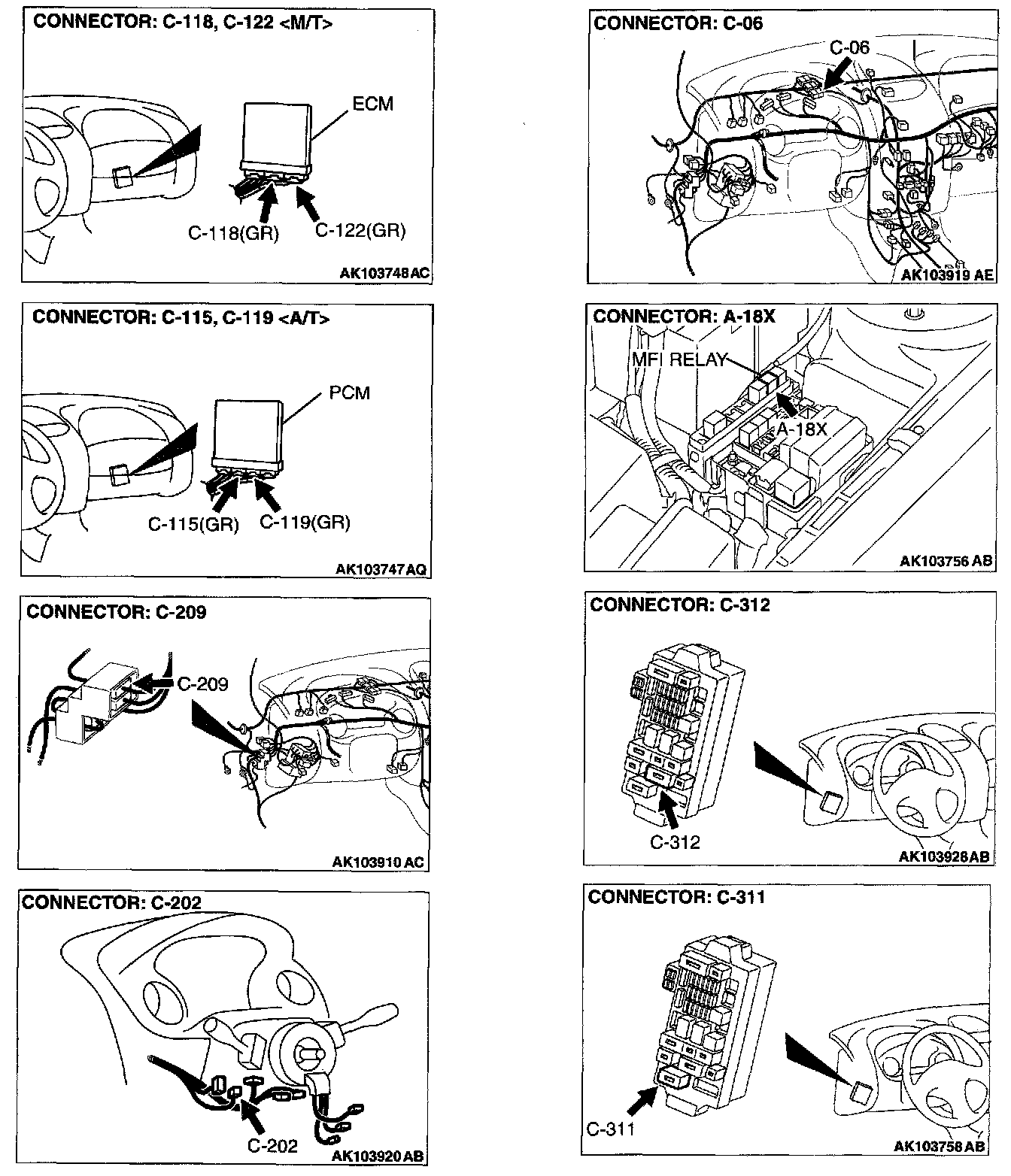

Connectors:
CIRCUIT OPERATION
- Battery positive voltage is applied to the MFI relay (terminals No.1, No.2).
- When the ignition switch is turned to the "ON" position, When the battery positive voltage is applied, the ECM
- Battery positive voltage is constantly supplied to the ECM (terminal No.60)
- The ECM (terminals No.46, No.58)
TROUBLESHOOTING HINTS (The most likely causes for this case:)
- Malfunction of the ignition switch.
- Malfunction of the MFI relay.
- Improper connector contact, open circuit or short-circuited harness wire.
- Disconnected ECM
- Malfunction of the ECM
DIAGNOSIS

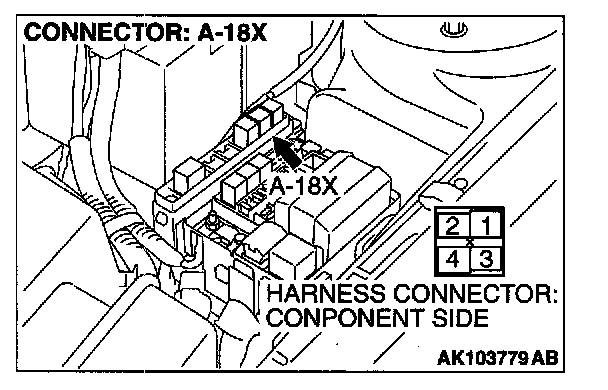

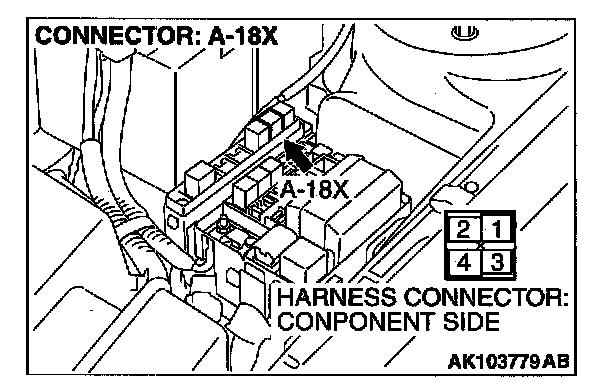

STEP 1. Check connector A-18X at MFI relay for damage.
Q: Is the connector in good condition?
YES: Go to Step 2.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.
STEP 2. Check the MFI relay.
1. Remove the MFI relay.

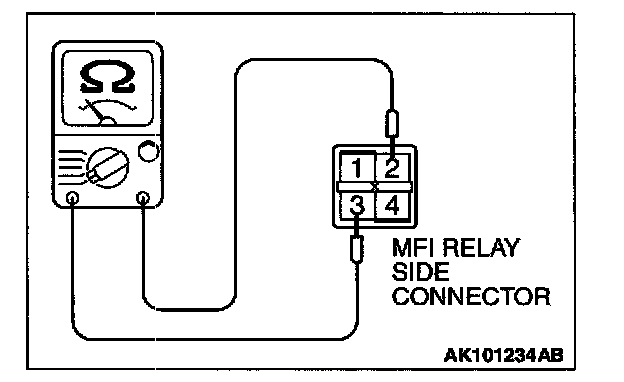

2. Check for continuity between the MFI relay terminals No.2 and No.3.
- There should be continuity (approximately 70 ohms)

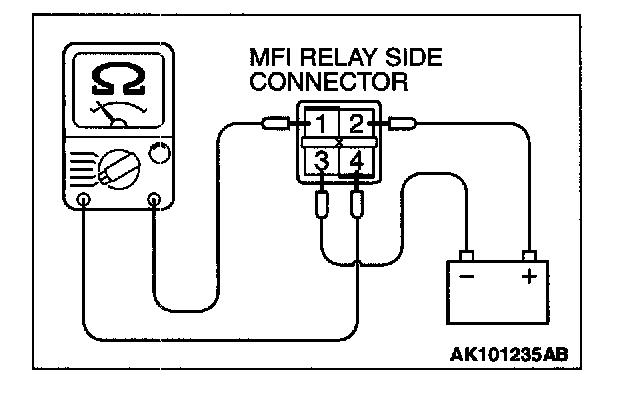

3. Use jumper wires to connect MFI relay terminal No.2 to the positive battery terminal and terminal No.3 to the negative battery terminal.
4. Check for continuity between the MFI relay terminals No.1 and No.4 while connecting and disconnecting the jumper wire at the negative battery terminal.
- Should be less than 2 ohms. (Negative battery terminal connected)
- Should be open loop. (Negative battery terminal disconnected)
5. Install the MFI relay.
Q: Is the measured voltage within the specified range?
YES: Go to Step 3.
NO: Replace the MFI relay. Then confirm that the malfunction symptom is eliminated.

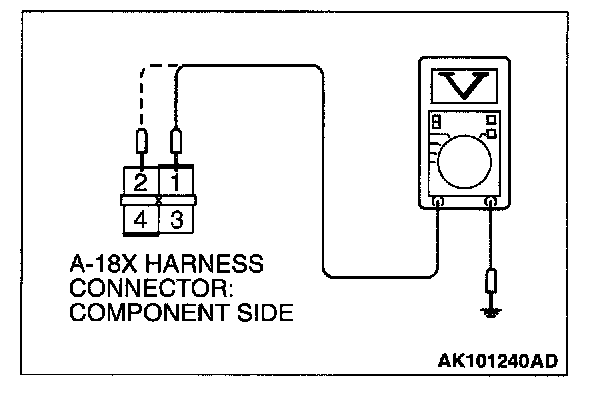

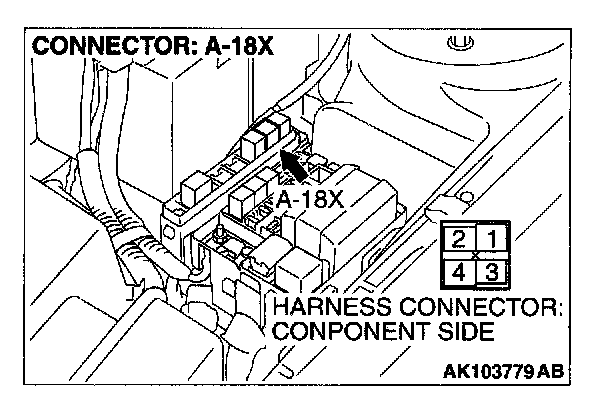

STEP 3. milevolt the power supply voltage at MFI relay harness side connector A-18X.
1. Disconnect the connector A-18X and measure at the harness side.
2. Measure the voltage between terminals No.1, No.2 and ground.
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 4.
NO: Check harness connector 0-06 at intermediate connector for damage, and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connector is in good condition, repair harness wire between relay box (fuse 9) and MFI relay connector A-18X (terminals No.1, No.2) because of open circuit. Then confirm that the malfunction symptom is eliminated.
Connectors:

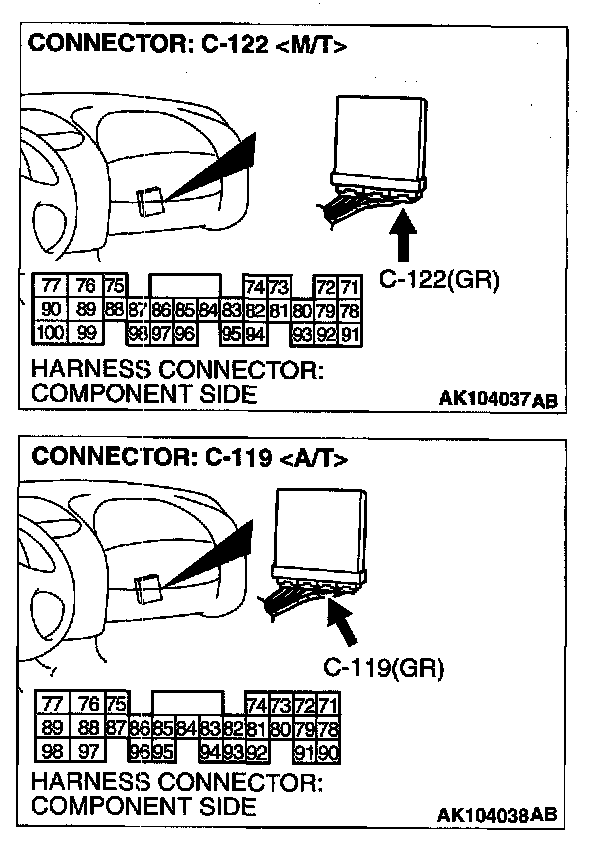

STEP 4. Check connector C-122 at ECM
Q: Is the connector in good condition?
YES: Go to Step 5.
NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.
Connectors:

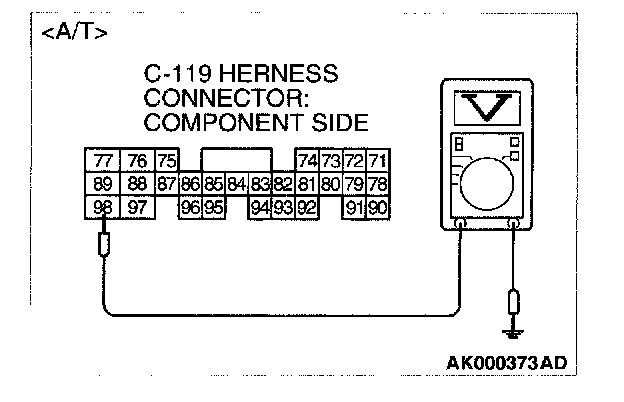

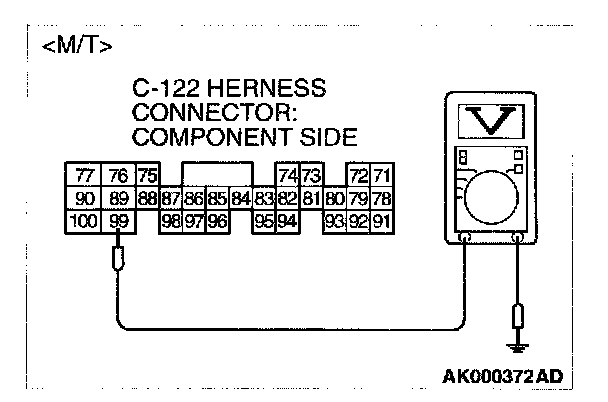

STEP 5. Measure the ignition switch-IG signal voltage at ECM harness side connector C-122
1. Disconnect the connector C-122
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal No.99
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 6.
NO: Check harness connectors C-06, C-209, C-312 and C-311 at intermediate connector for damage, and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connectors are in good condition, repair harness wire between ignition switch connector C-202 (terminal No.2) and ECM connector C-122 (terminal No.99)
Connectors:

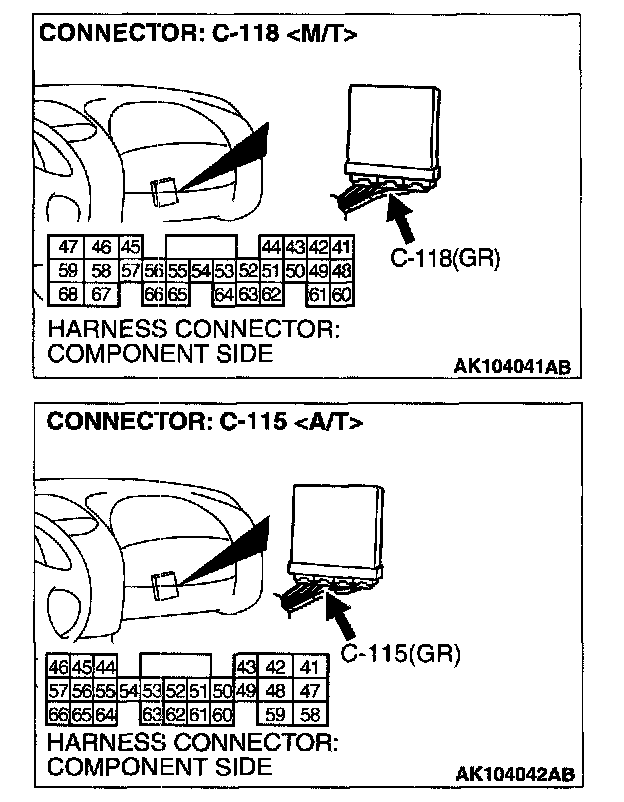

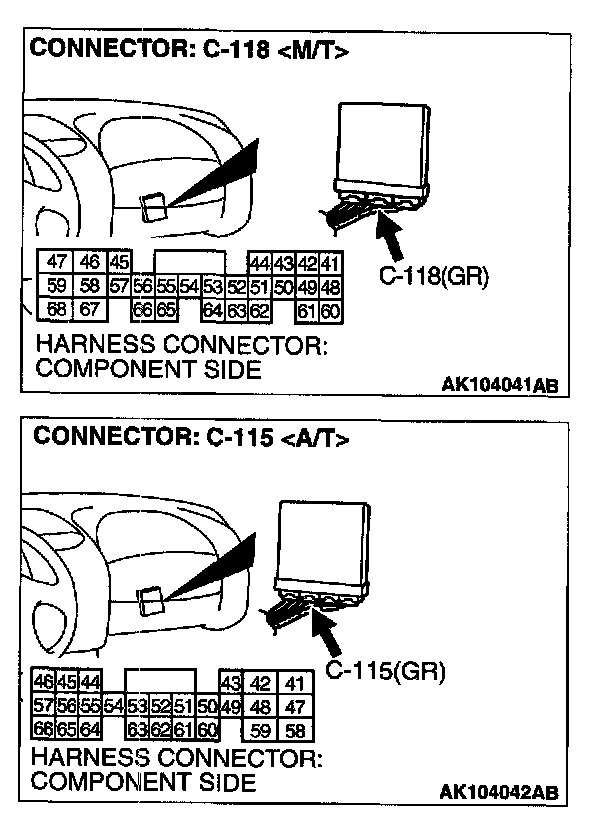

STEP 6. Measure the backup power supply voltage at ECM harness side connector C-118
1. Disconnect the connector C-118
2. Measure the voltage between terminal No.60
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 7.
NO: Check harness connector C-06 at intermediate connector for damage, and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connectors are in good condition, repair harness wire between relay box (fuse 9) and ECM connector C-118 (terminal No. 60)
Connectors:

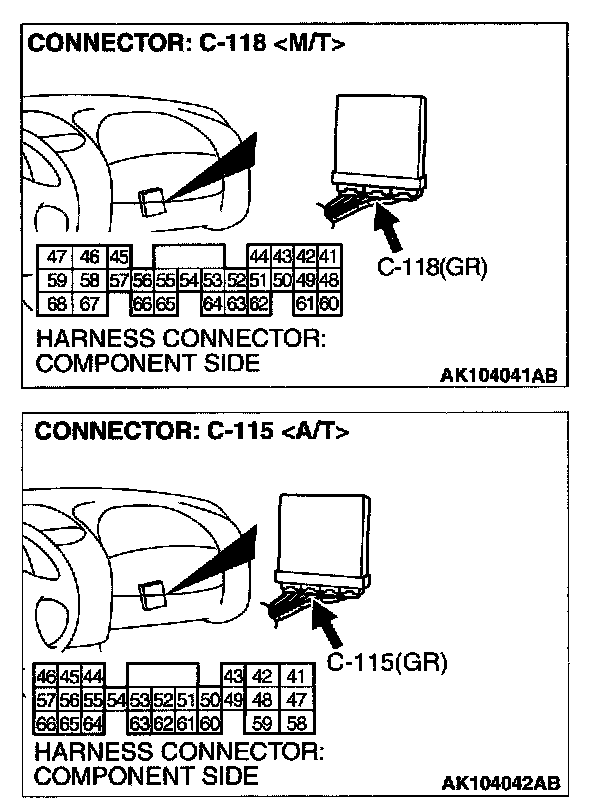

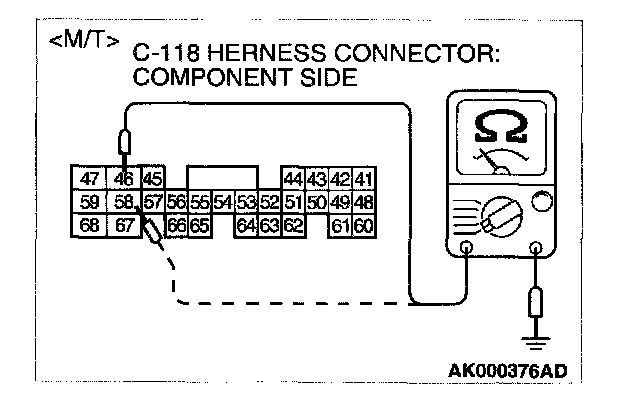

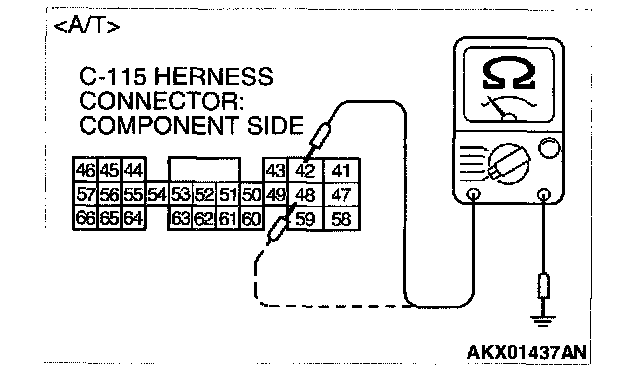

STEP 7. Check for continuity at ECM harness side connector C-118
1. Disconnect the connector C-118
2. Check for the continuity between terminals (No.46, No.58)
- Should be less than 2 ohms.
Q: Does continuity exist?
YES: Go to Step 8.
NO: Repair harness wire between ECM connector C-118 (terminals No.46, No.58)
Connectors:

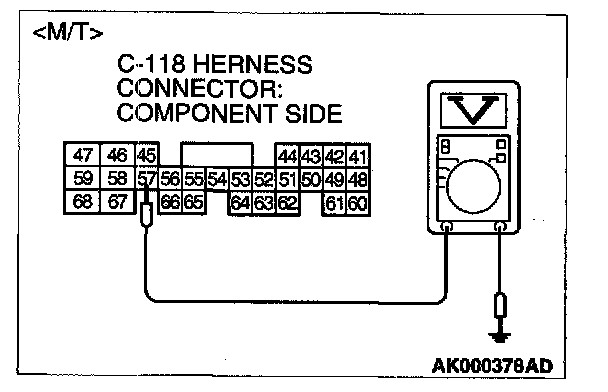

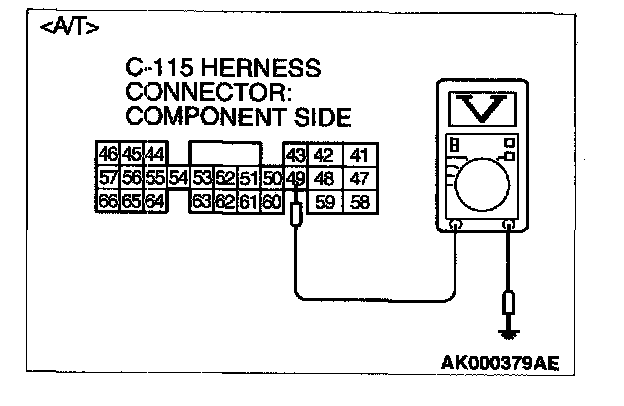

STEP 8. Measure the power supply voltage at ECM harness side connector C-118
1. Disconnect the connector C-118
2. Measure the voltage between terminal No.57
- Voltage should be battery positive voltage.
Q: is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 9.
NO: Repair harness wire between MFI relay connector A-18X (terminal No.3) and ECM connector C-118 (terminal No.57)
Connectors:

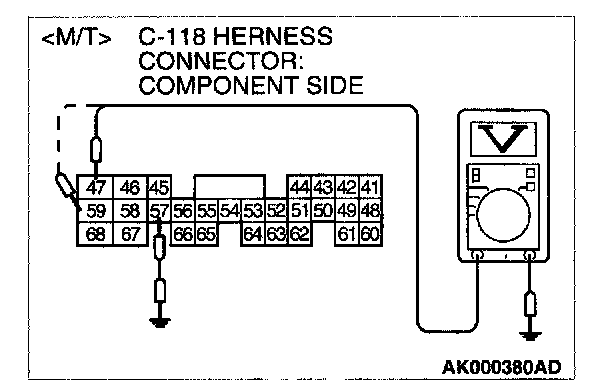

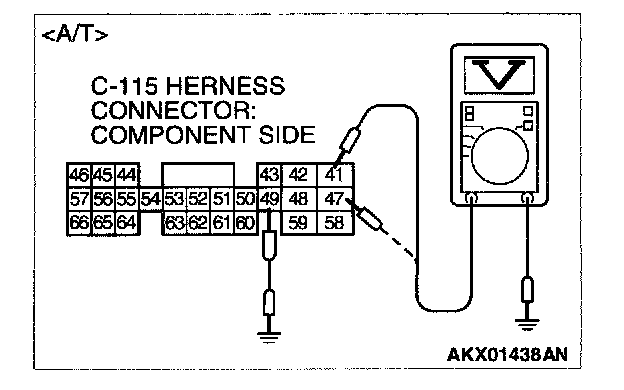

STEP 9. Measure the power supply voltage at ECM harness side connector C-118
1. Disconnect the connector C-118
2. Using a jumper wire, connect terminal No.57
3. Measure the voltage between terminals (No.47, No.59)
- Voltage should be battery positive voltage.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Replace the ECM or PCM. Then confirm that the malfunction symptom is eliminated.
NO: Repair harness wire between MFI relay connector A-18X (terminal No.4) and ECM connector C-118 (terminals No.47, No.59)
