Data List Reference Table

DATA LIST REFERENCE TABLE

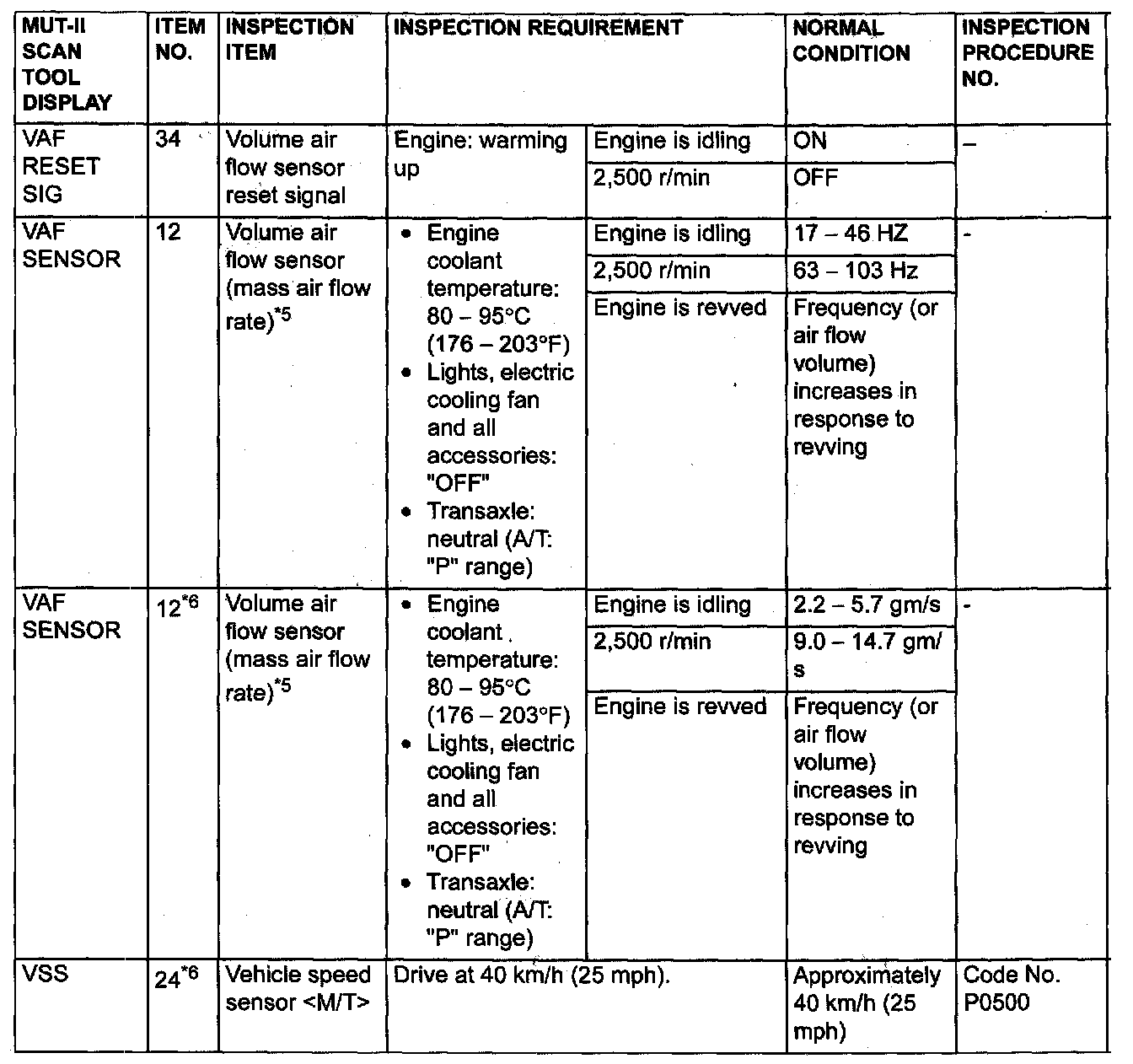

Data List Reference Table:

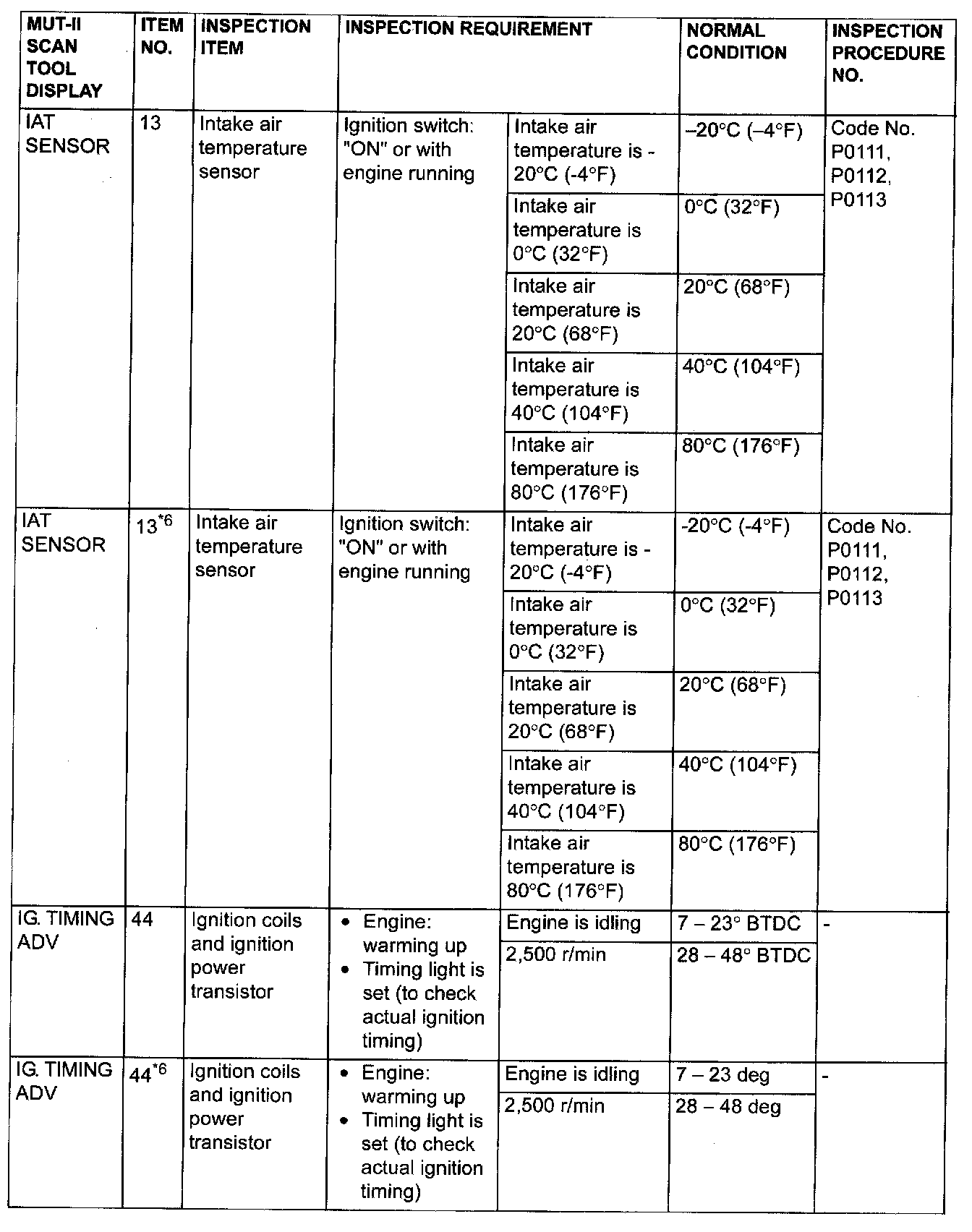

Data List Reference Table - Part 2:

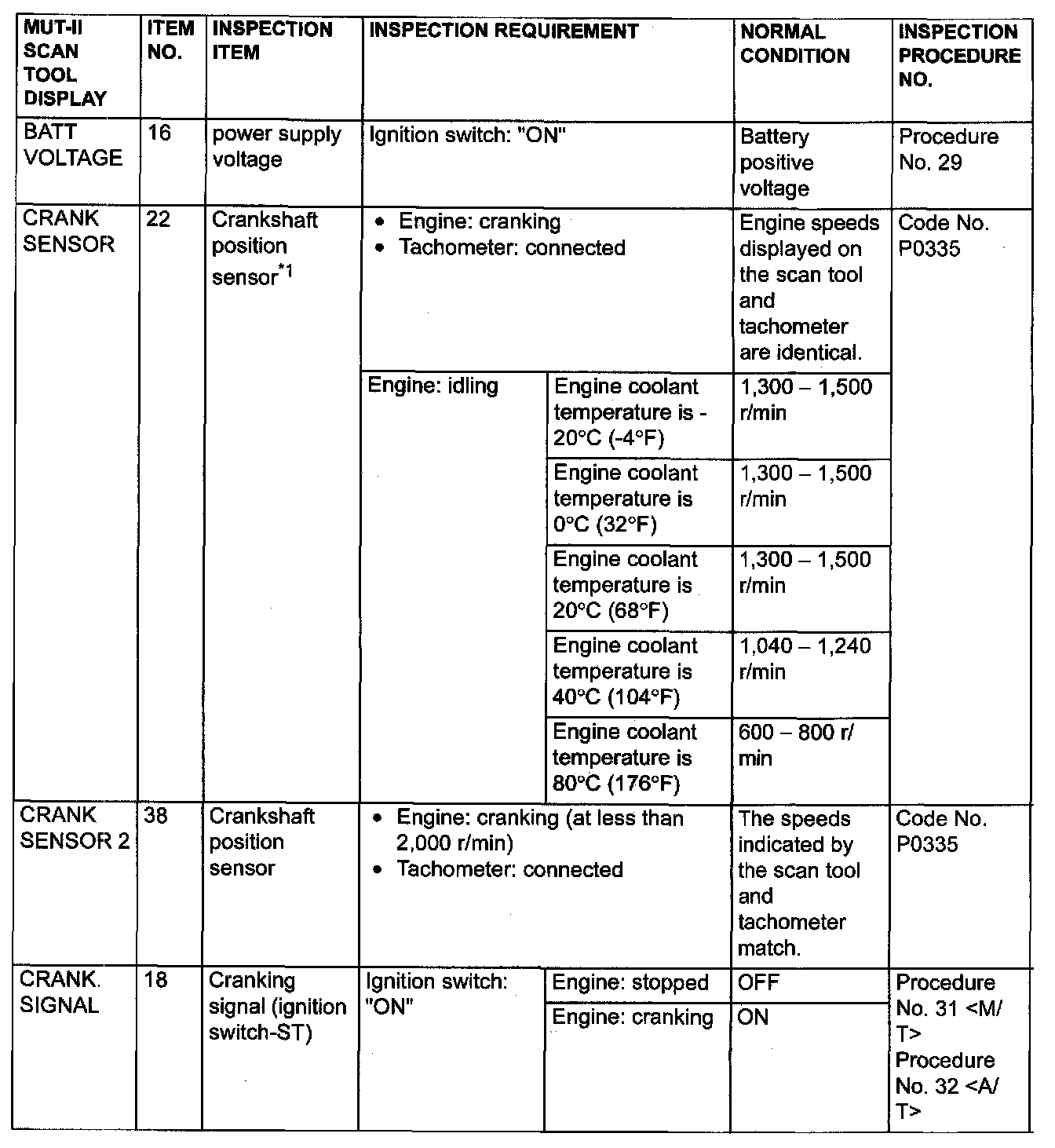

Data List Reference Table - Part 3:

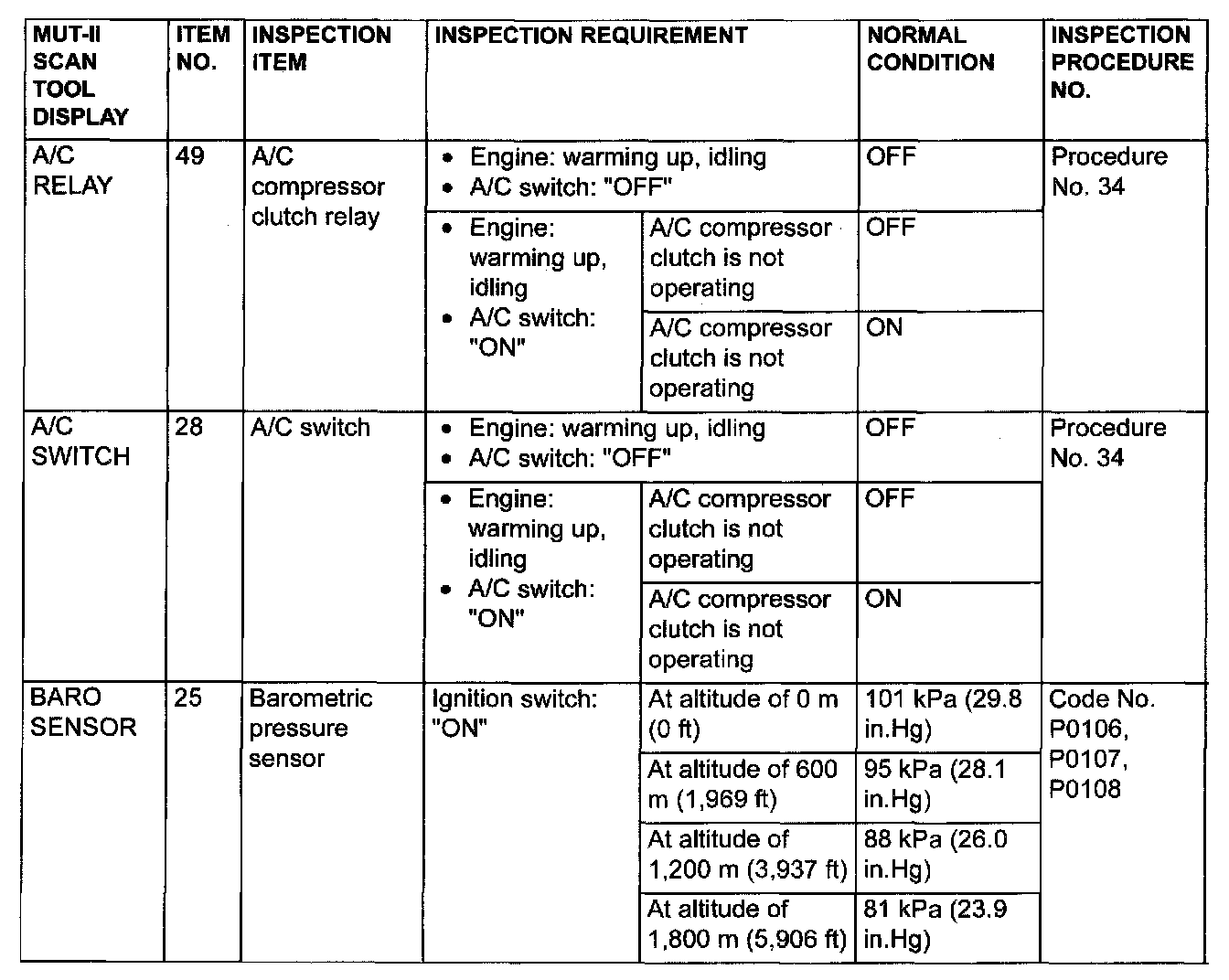

Data List Reference Table - Part 4:

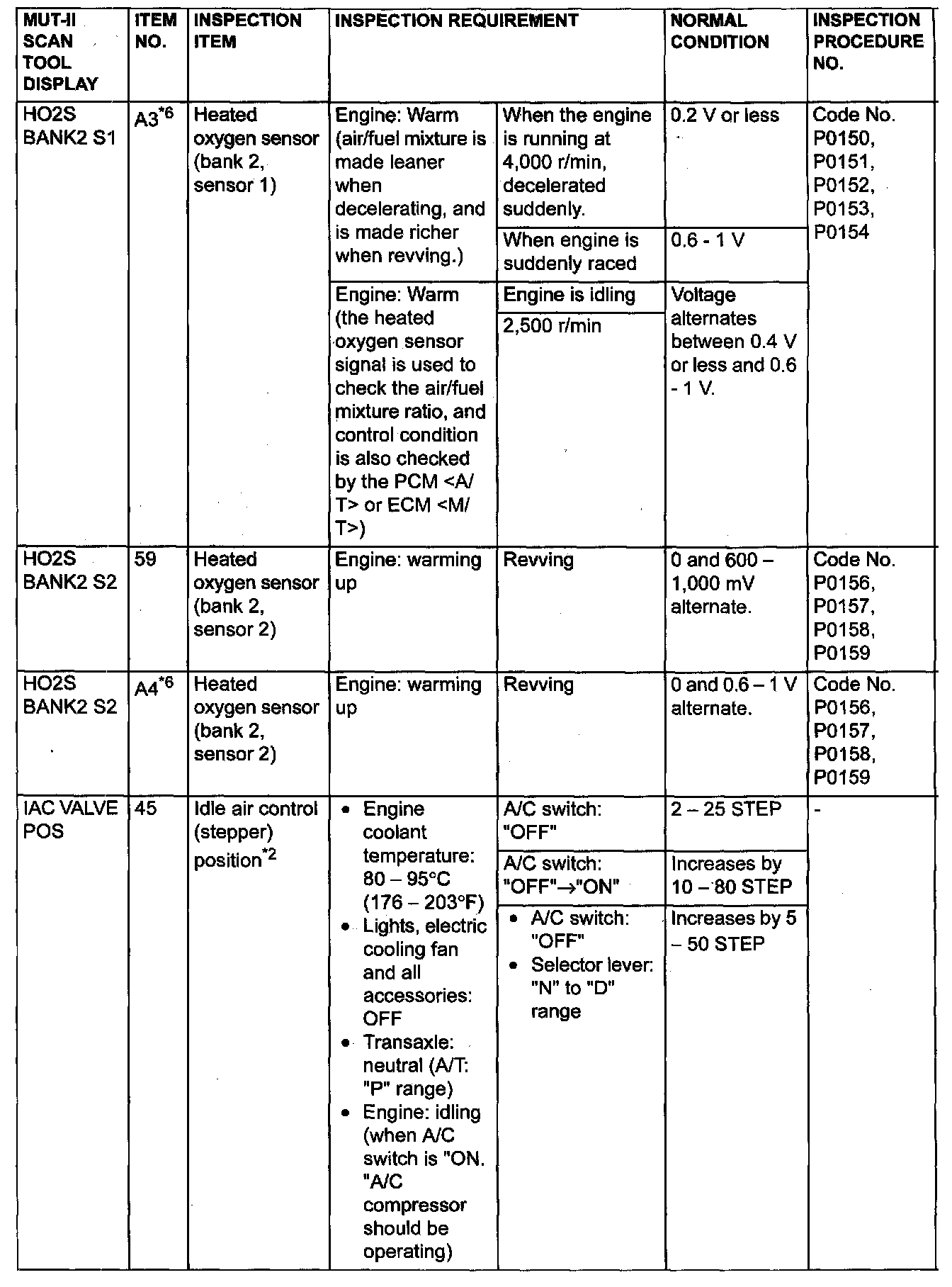

Data List Reference Table - Part 5:

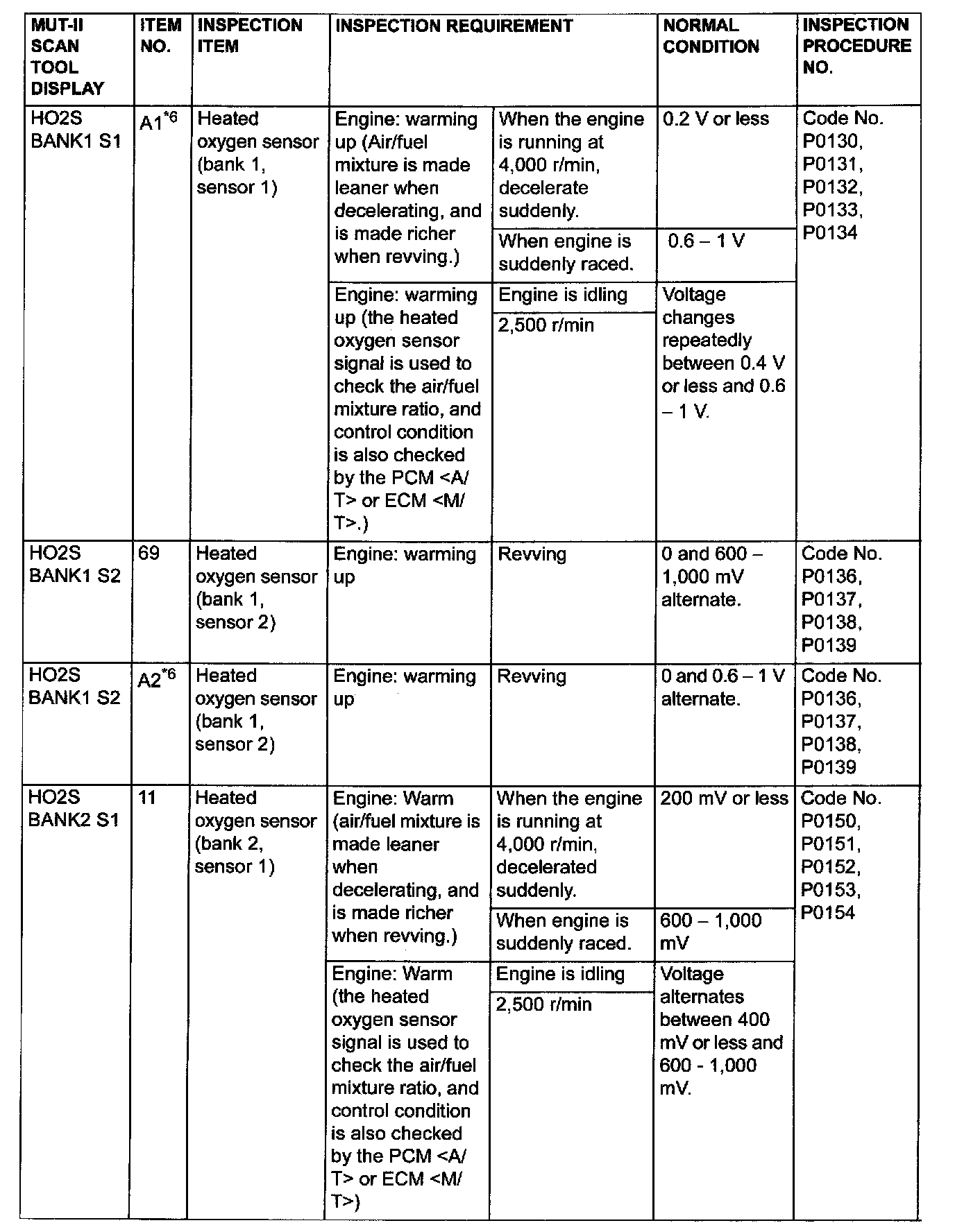

Data List Reference Table - Part 6:

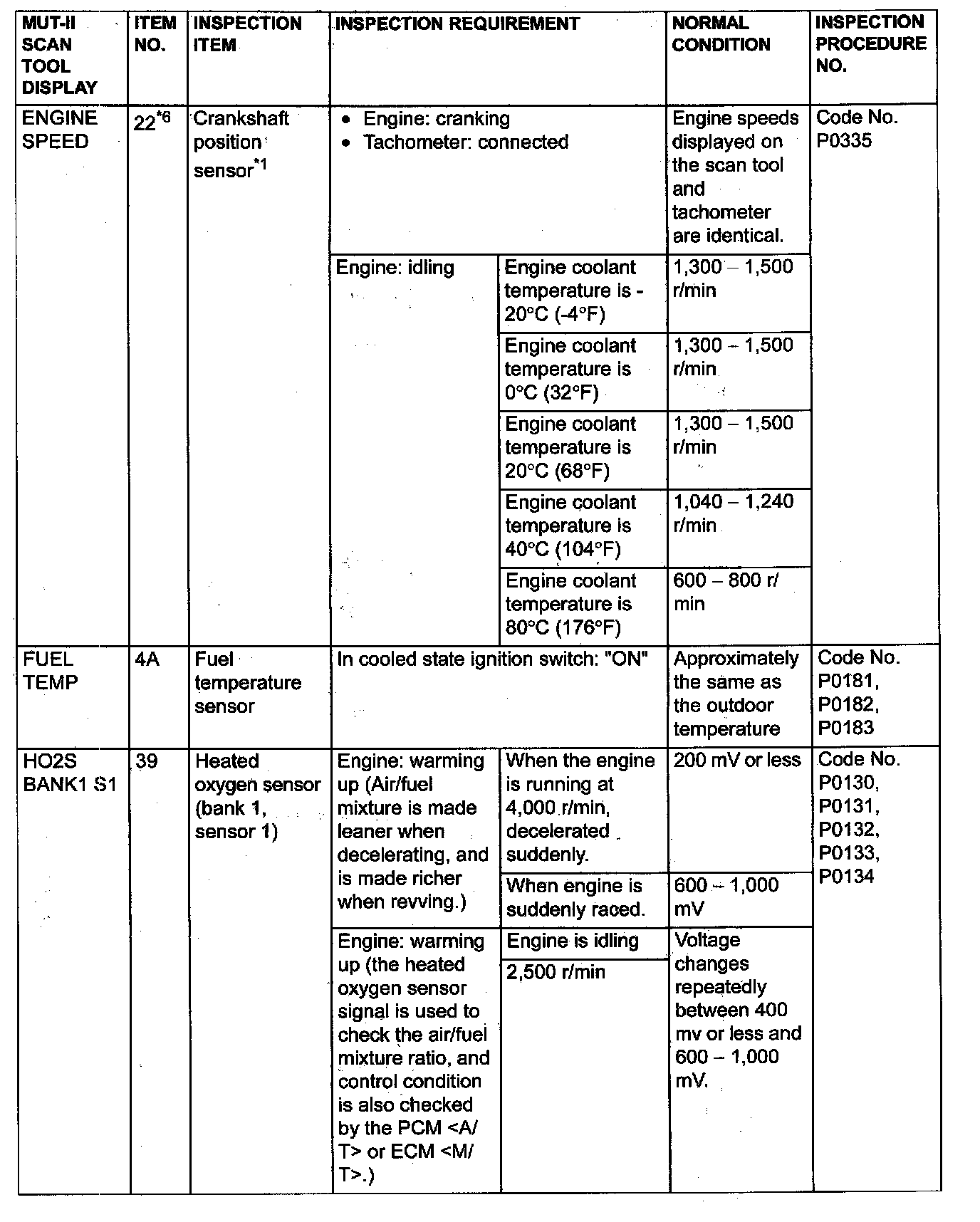

Data List Reference Table - Part 7:

Data List Reference Table - Part 8:

Data List Reference Table - Part 9:

Data List Reference Table - Part 10:

CAUTION
- When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE:
- Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second close to the engine
- Bank 1 indicates the right bank cylinder, and bank 2 indicates the left bank cylinder.

NOTE:
- *1: If the idle speed is lower than the standard value on a very cold engine (approximately -20 °C (-4 °F)) even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.
- *2: In a new vehicle [driven approximately 500 km (311 mile) or less, the step of the stepper motor is sometimes 30 steps greater than the standard value.
- *3: The injector drive time represents the time when the cranking speed is at 250 rpm or below when the power supply voltage is 11 volts.
- *4: In a new vehicle [driven approximately 500 km (311 mile) or less, the injector drive time is sometimes 10% longer than the standard time.
- *5: In a new vehicle [driven approximately 500 km (311 mile) or less, the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.
- *6: Applicable to GST
