Fail-Safe Function Reference Table

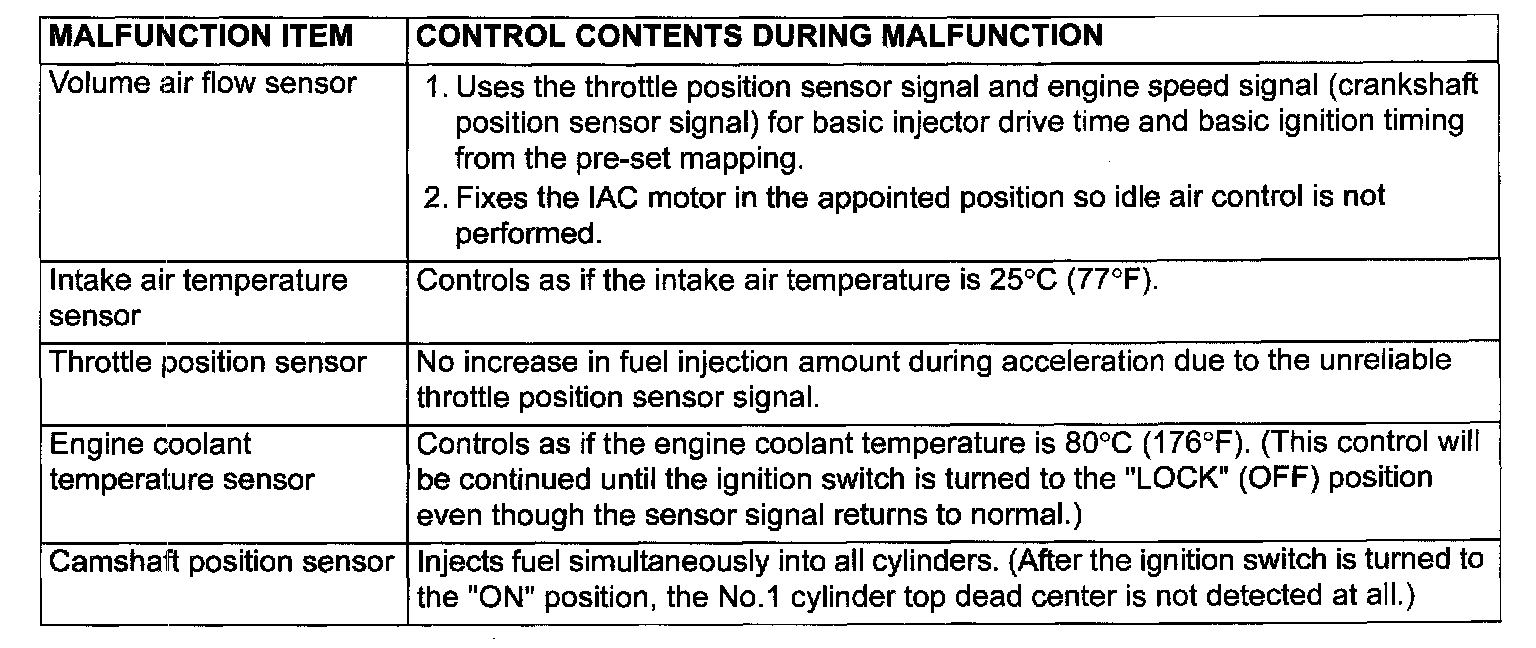

Fail-Safe Function Reference Table - 1:

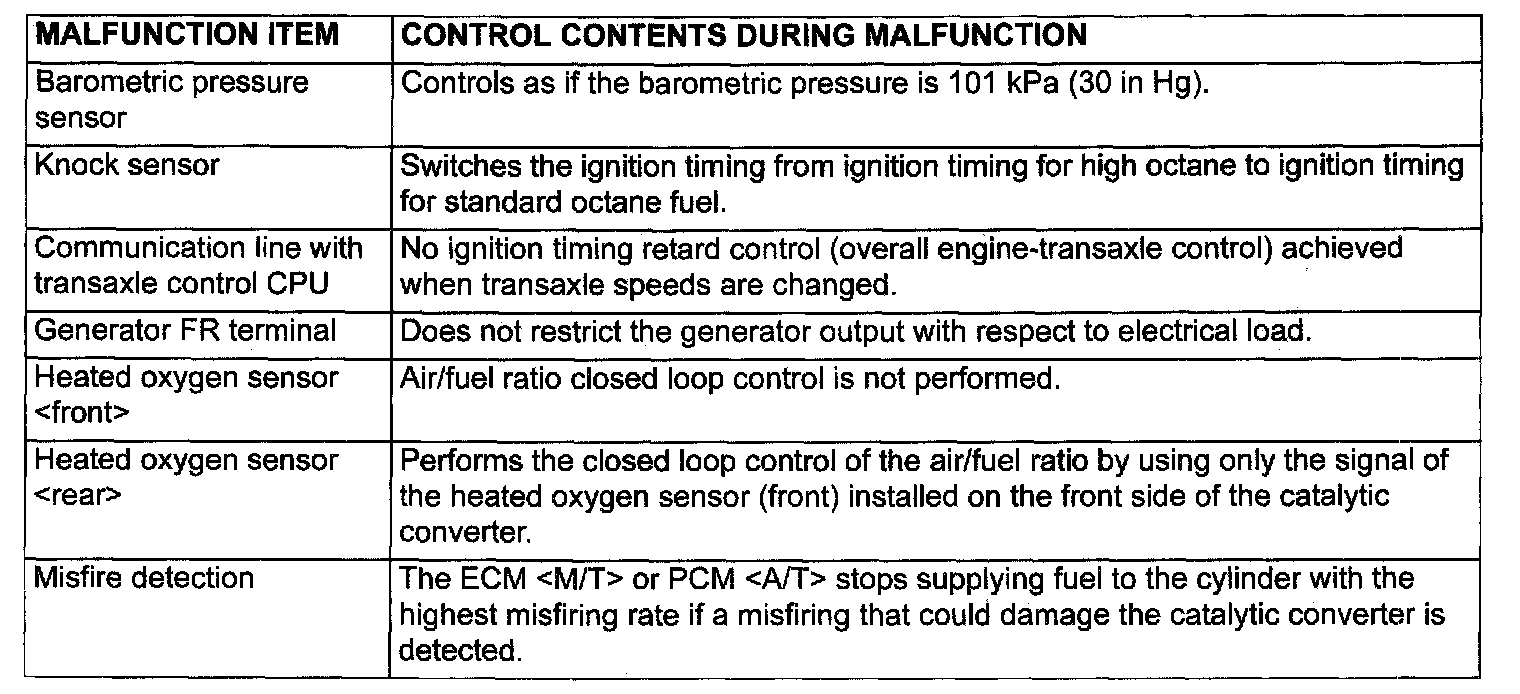

Fail-Safe Function Reference Table - 2:

When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the defaults.
