Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Power and Ground Distribution >> Sensors and Switches - Power and Ground Distribution >> Power Interrupt Connector/Switch >> Locations

Power Interrupt Connector/Switch: Locations

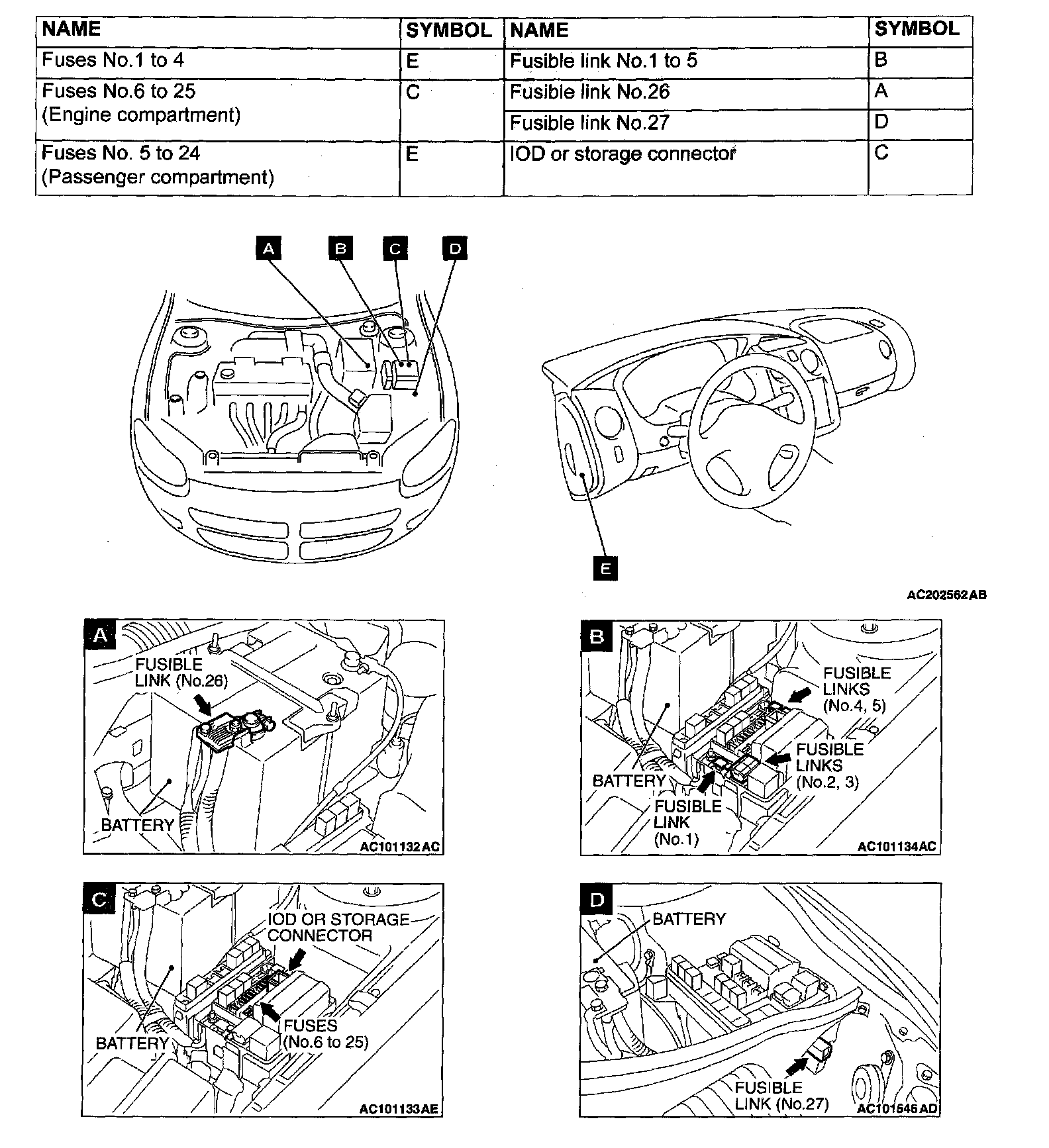

Fusible Link, Fuse And IOD Or Storage Connector Location Index, Overall View And Views A - D:
